Epoxy-Coated Flanged Ends Clear Static Mixer

Basic Information
Place of Origin: China
Brand Name: Dagyee
Model Number: sk
Minimum Order Quantity: 1 set
Price: $59
Packaging Details: Packed in wooden cases
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 200 sets per month
Detail Information
Product Name: Static Mixer Material: 304/316L/PP/PVC/PTFE
Application: Filtration Key Words: Helical Mixers
Size: 1-60 Inch Usage: Mixing Process

Product Description

Static Inline Mixers


DAGYEE produces a complete line of custom stainless steel static mixers made from industrial grade schedules 10 through 40 pipe, in sizes ranging from 3/8"- 60" diameter. All stainless steel metal static mixers are custom designed for each application.  DAGYEE stocks all of the raw materials for the mixer line and can produce a flanged industrial mixer in as little as 1-2 days, if needed. Standard materials of construction include carbon steel, 304L and 316L stainless steel. Other higher alloys are available upon request for inline static mixers.

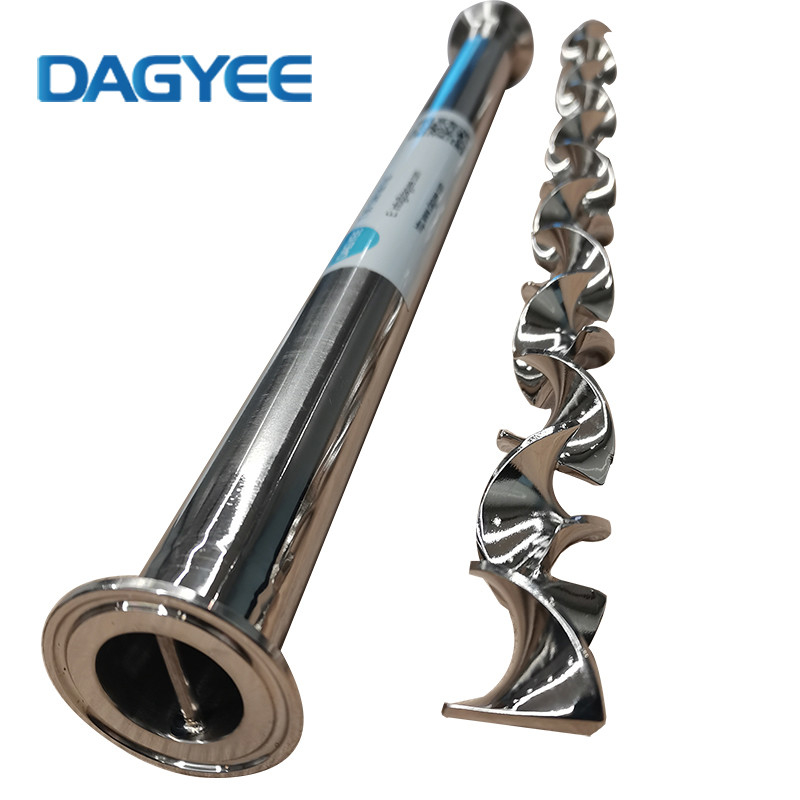

Epoxy-Coated Flanged Ends Clear Static Mixer 0





How does a static mixer work?


The mixing elements or fins induce turbulent flow in the mixer housing which mixes chemicals added either ahead of the mixer or through an injection port on the mixer housing. The process media will be mixed 95% within 3D (pipe diameter) of the mixer outlet, this is called the CoV or Coefficient of Variation.

Static mixers are aimed at 0.5 or 95% mixing at 3D (pipe diameter) of the mixer outlet.

There is no typical static mixer design, a variety of designs are available to suit specific applications

Helical coil mixers for the chemical pharmaceutical and food industries,
Fin mixers for the water industry - Fin mixers The mixing elements (foils) of the mixer are mounted on the walls of the mixer housing and are so-called open designs, which means that they are less likely to clog, they The pressure drop is lower than that of a helical coil mixer.





SK series model




Model

Dg(mm)

dh(mm)

Q(m3/h)

SK-5/10

10

5

0.15-0.3

SK-7.5/15

15

7.5

0.3-0.6

SK-10/20

20

10

0.6-1.2

SK-12.5/25

25

12.5

0.9-1.8

SK-16/32

32

16

1.4-3.2

SK-20/40

40

20

2.2-4.5

SK-25/50

50

25

3.5-7.0

SK-32.5/65

65

32.5

5.9-12

SK-40/80

80

40

9-18

SK-50/100

100

100

14-28

SK-62.5/125

125

125

22-44

SK-75/150

150

150

31-64

SK-100/200

200

200

56-110

SK-125/250

250

250

88-177

SK-150/300

300

300

127-255

SK-175/350

350

350

173-346

SK-200/400

400

400

226-452

SK-250/500

500

500

353-706

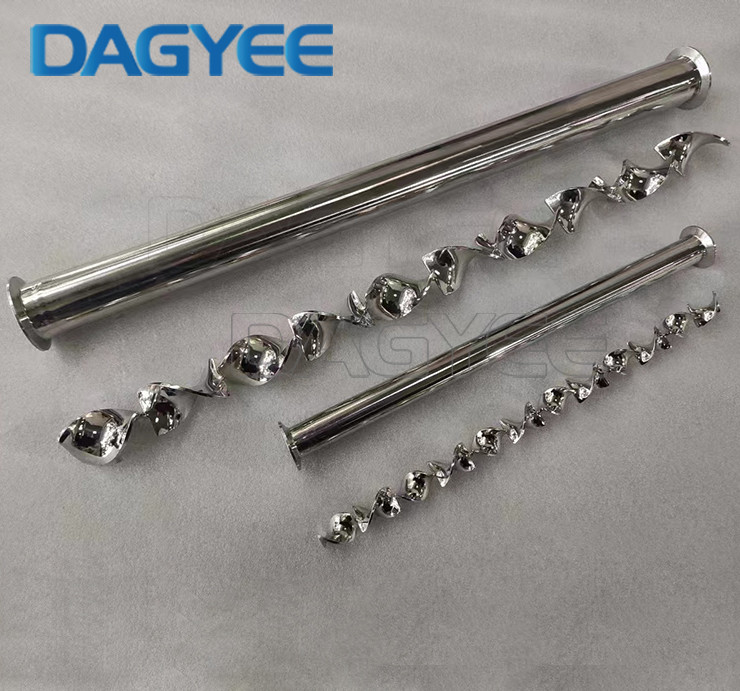

Epoxy-Coated Flanged Ends Clear Static Mixer 1

Benefits of Static Mixer


Maintenance-Free
Static Mixers are built to last using industrial grade materials specifically tailored to your application.


Low-Cost

Static Mixers are a low-cost alternative to traditional tank mixers both at purchase and during the mixer's lifetime. There are no running costs associated with operating Static Mixer on top of running your existing pipeline.


Low Energy Requirements

Because static mixers are motionless by design, all the energy required to provide a perfect blend is provided by the energy of the flow stream.


No Moving Parts

Unlike traditional mixers, static mixers remain motionless during the mixing process.



Custom-Designed for Your Application
Static mixers can be custom-tailored to fit your requirements.



Quick Delivery

Maintains complete control over its production process. All static mixers are built in-house at Koflo's manufacturing facility outside Chicago and can be manufactured to meet your project schedule.





Typical Applications


Chemical blending
Water treatment
Crude oil blending
Custody transfer
PH control
Liquid/vapor contacting

Produced Water Treatment

Desalination Biofuel blending and catalyst addition

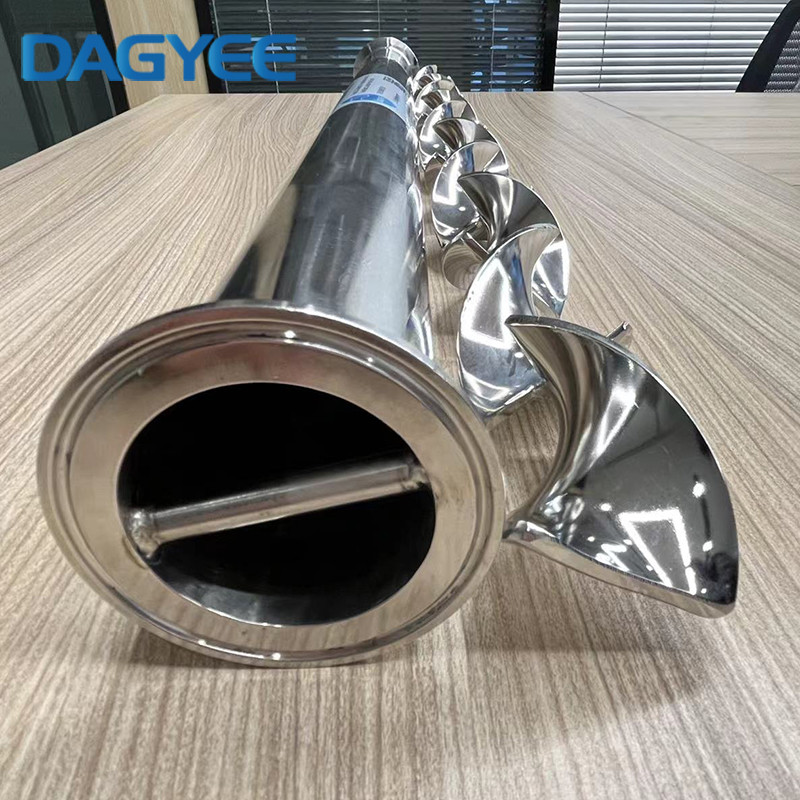

Epoxy-Coated Flanged Ends Clear Static Mixer 2
