| Place of Origin: | China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DLS200 |
| Minimum Order Quantity: | 1 set |
| Price: | 999-9999 |
| Packaging Details: | Wooden packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |
| Material: | Q345/SS304/SS316L | Keywords: | Customized Shaftless Screw Conveyor |
|---|---|---|---|
| Drive: | 0.55 KW | Capacities: | 0.9-2m³/h |
Shaftless Screw Conveyor Description
Shaftless screw conveyor is a kind of environmental protection equipment that does not have a central axis and is rotated by a screw body to transport materials. It is mainly used to transport sludge and screen slag from various sewage treatment plants. The conveying direction of the conveyor is determined by the helical direction of the screw blades Conveying, the groove is provided with an anti-wear nylon protective bushing. For materials that are difficult to convey, shaftless screw conveyor is a mature and common solution. It is used in conjunction with grid decontamination machines and sludge dewatering machines. It is used for conveying grid decontamination machines and rotary grids in sewage treatment plants. The screen slag and filter press mud cake and other materials are very ideal conveying equipment. The sludge and screen slag can be transported to the designated location, saving manpower and material resources, and high work efficiency. Shaftless screw conveyor can be closed to prevent environmental pollution.
Shaftless Screw Conveyor Structure

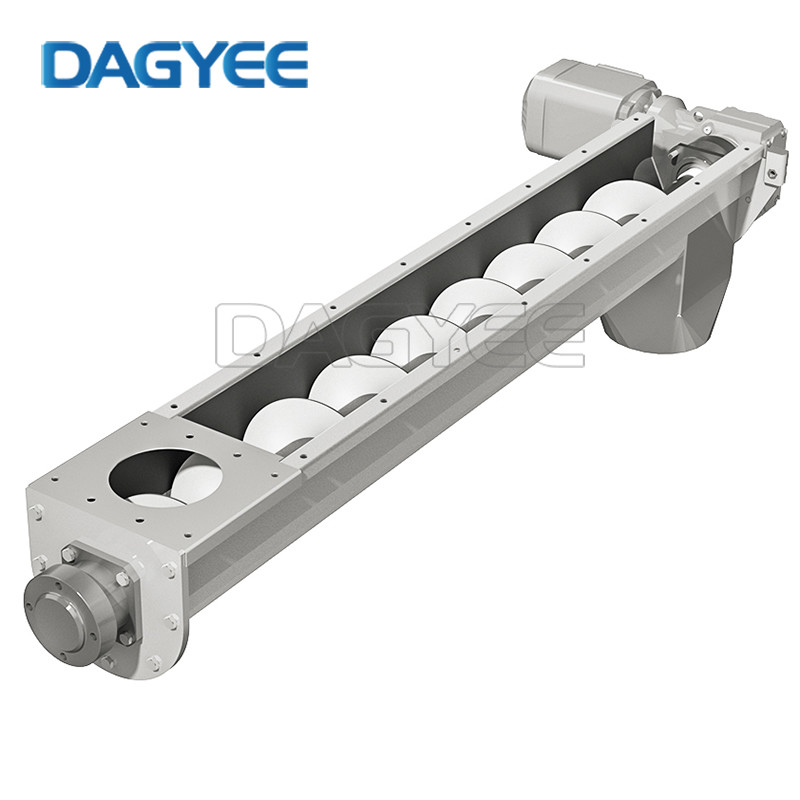

Shaftless screw conveyor is mainly composed of shaftless screw, U-shaped spiral groove, cover plate, lining plate, inlet and outlet, discharge outlet and driving device.
Shaftless Screw Conveyor Type
Single shaftless screw conveyor screw shaft, without mixing and stirring functions.
Twin shaftless screw conveyor It adopts double screw blades with mixing and stirring functions. The two screw blades rotate in opposite directions to avoid material blocking. The conveying capacity is 1.5-2 times that of a single shaft.

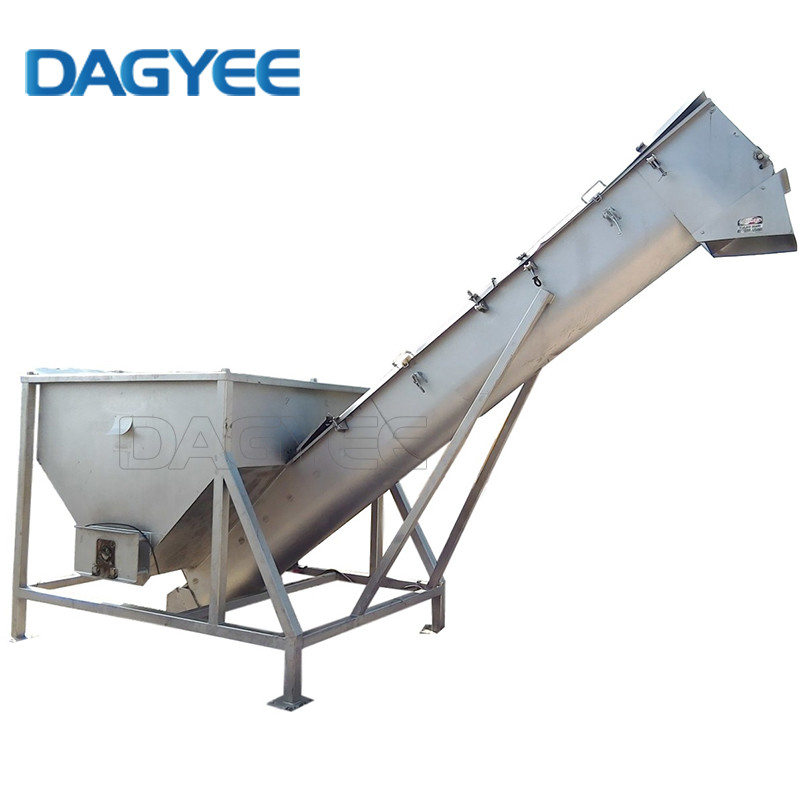

Inclined shaftless screw conveyor mainly used for conveying materials at a small angle of 25°.
Shaftless Screw Conveyor Technical
|
DLS |
Capacities |
Length |
Speed |
Size |
||||
|
00 |
150 |
300 |
(m) |
(r/min) |
A(mm) |
B(mm) |
B0(mm) |
|
|
DLS200 |
2 |
1.4 |
0.9 |
10 |
20 |
200 |
310 |
270 |
|
DLS260 |
3.5 |
2.5 |
1.5 |
10 |
20 |
260 |
370 |
340 |
|
DLS320 |
9 |
6.5 |
4.1 |
15 |
20 |
320 |
430 |
400 |
|
DLS355 |
11.5 |
7.8 |
5.5 |
20 |
20 |
355 |
465 |
435 |
|
DLS420 |
15 |
11 |
7.5 |
20 |
20 |
420 |
530 |
500 |
|
DLS500 |
30 |
25 |
21 |
20 |
20 |
500 |
560 |
680 |
Shaftless Screw Conveyor Benefits
Easy to access and clean
Low maintenance
Modular components enable easy adaptation to various problems (results in an extremely versatile conveyor for a variety of DIFFICULT materials and a large number of applications)
High degree of self-cleaning
Shaftless Screw Conveyors VS Shafted Screw Conveyors
Conveying materials
Shaftless is suitable for conveying sludge, household garbage, grid slag and other viscous, entangled materials and massive materials. It is precisely because the design of the shaftless screw conveyor without a central axis has great advantages for these materials.
The shaft screw conveyor is suitable for conveying materials: powder, small particle materials, etc. If you convey viscous
materials such as sludge, it will stick to the inner tube shaft and blades, and the conveying block materials are easy to jam.
Conveying form
Shaftless screw conveyor is suitable for: horizontal conveying, and the large inclination angle should not exceed 20°, according to the actual usage.
The shaft screw conveyor is suitable for: horizontal conveying, inclined conveying, and vertical conveying.
Conveying capacity
Due to the use of shaftless, the single-machine conveying length of the shaftless screw conveyor can reach 60 meters, and the conveying capacity is 1.5 times that of the traditional shafted screw conveyor with the same diameter.
Shaftless Screw Conveyors Application
Ceramic industry: clay, silica, sand, polishing materials, etc.
Food industry: soybean, peanut, starch, milk powder, salt, sugar, etc.
Plastics industry: plastic powder, plastic particles, etc.
Wood industry:wood chips, wood sawing surface and byproducts, etc.
Environmental: the filter material, fly ash, fixed residue, waste, etc.
Agriculture:livestock feed, food, powder, etc.
