| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | ISO SGS CE |
| Model Number: | DAF-020 |
| Minimum Order Quantity: | 1set accept customized |
| Price: | USD9500-65000 |
| Packaging Details: | Wooden box,steel frame ,Standard container |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 set per month |
| Material: | Carbon Steel SUS304 SUS316 | Voltage:: | 380V 3 Phase 50hz Or According To Your Requirements |
|---|---|---|---|
| Capacity:: | 2-200m3/hr | Purpose:: | Wastewater Treatment Equipment To Remove TSS, Grease, Phosphorus And Nitrogen |
| MOQ:: | 1set, Accept Customized | Brand:: | DAGYEE |
| Certification:: | ISO CE SGS Or Other | Project Operation Experience:: | More Than 200 Sets |
| Material:: | Carbon Steel, Sus304 Sus316 | Control:: | Electric Cabinet Control, Optional PCL |
| DAF After-sales Service:: | Operating Instructions, Installation Guidance, Video Operation, Free Accessories, Optional On-site Service | ||
| Highlight: | sus316 DAF Water Treatment System,SGS DAF Water Treatment System,DAF wastewater treatment plant |
||

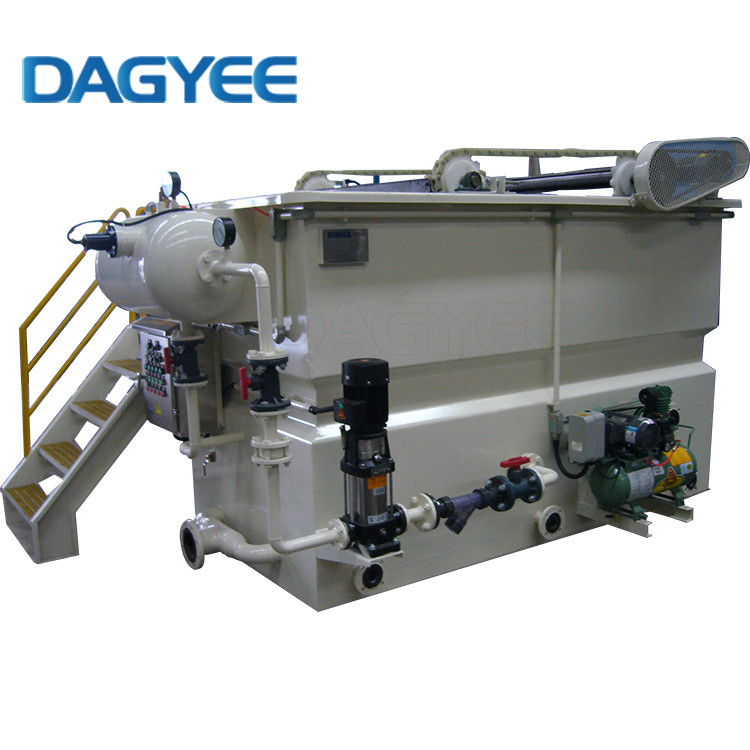

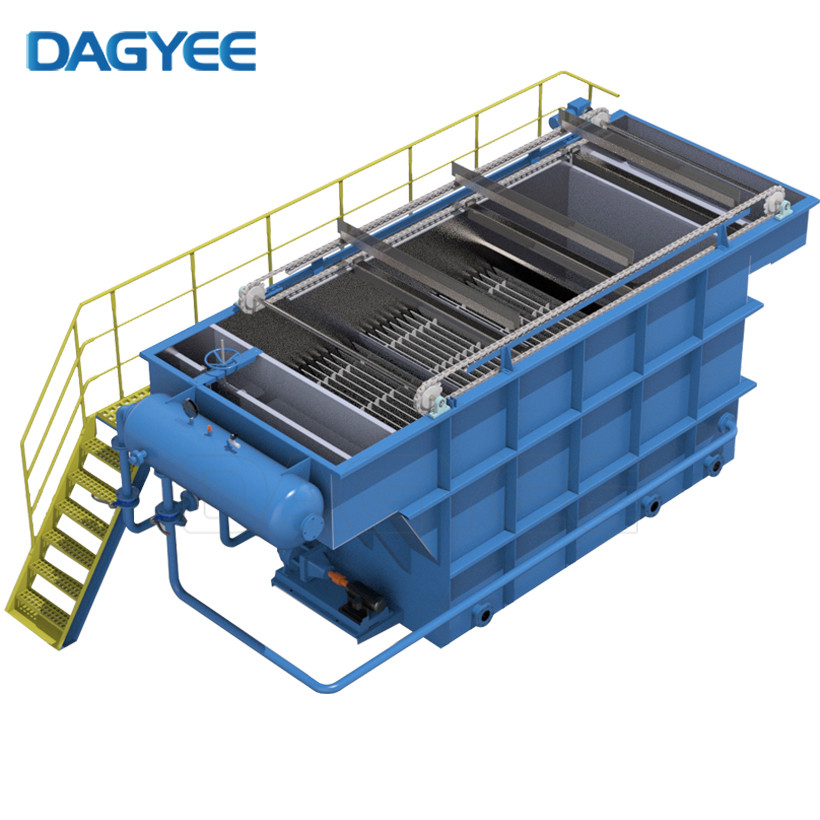

Wastewater Treatment Machinery Dissolved Air Flotation WWTP
Oil Water Separator Wastewater Plant Treatment DAF Dissolved Air Flotation is an efficient flotation method for water clarification. The term refers to the method of producing flotation by dissolving air in the water under pressure and then releasing the pressure. When the pressure is released the solution becomes supersaturated with air as millions of small bubbles form. These bubbles attach to any particles in the water causing their density to become less than that of water. The particles then rapidly float to the surface for collection and removal, leaving the clarified water behind.
Dissolved Air Flotation Tech
| DAF Model |
Capacities (m3/h) |
Piping Connections | Physical Dimensions(m) | Weight (Kg) |
Operating Weight(kg) |
|||||
| Inlet(a) | Effluent(b) | Sludge(c) | Vent(d) | L/L1 | W/W1 | H/H1 | ||||
| DAF-002 | 2 | DN50 | DN50 | DN100 | DN100 | 3.4/2.5 | 2.4/1.16 | 2.2/1.7 | 1300 | 4000 |
| DAF-003 | 3 | DN50 | DN50 | DN100 | DN100 | 3.7/2.8 | 2.4/1.16 | 2.2/1.7 | 1500 | 5000 |
| DAF-005 | 5 | DN80 | DN80 | DN100 | DN80 | 4/3 | 2.4/1.16 | 2.2/1.7 | 1600 | 7000 |
| DAF-010 | 10 | DN100 | DN100 | DN100 | DN100 | 4.65/3.8 | 2.7/1.36 | 2.4/1.9 | 2000 | 12000 |
| DAF-015 | 15 | DN125 | DN100 | DN150 | DN100 | 5.6/4.5 | 2.9/1.66 | 2.5/2 | 2200 | 18000 |
| DAF-020 | 20 | DN150 | DN150 | DN150 | DN100 | 5.9/4.8 | 3.2/1.96 | 2.5/2 | 3000 | 22000 |
| DAF-030 | 30 | DN150 | DN150 | DN150 | DN100 | 6.8/5.5 | 3.2/2.16 | 2.7/2.2 | 3800 | 32000 |
| DAF-040 | 40 | DN200 | DN150 | DN150 | DN100 | 8/6.7 | 3.6/2.6 | 2.7/2.2 | 5000 | 45000 |
| DAF-050 | 50 | DN200 | DN150 | DN150 | DN100 | 8.4/7 | 3.6/2.6 | 2.7/2.2 | 5500 | 55000 |
| DAF-060 | 60 | DN250 | DN200 | DN150 | DN100 | 9.9/8.4 | 3.8/2.8 | 2.9/2.4 | 6000 | 66000 |
| DAF-070 | 70 | DN250 | DN200 | DN150 | DN100 | 10.4/9 | 3.8/2.8 | 2.9/2.4 | 6500 | 75000 |
| DAF-080 | 80 | DN250 | DN250 | DN150 | DN100 | 10.8/9.4 | 4/3 | 2.9/2.4 | 7500 | 100000 |
| DAF-100 | 100 | DN300 | DN250 | DN150 | DN100 | 12.1/10.6 | 4.2/3.2 | 2.9/2.4 | 9000 | 110000 |
| DAF-120 | 120 | DN300 | DN250 | DN150 | DN100 | 12.5/11.4 | 4.4/3.4 | 2.9/2.4 | 10000 | 130000 |
Dissolved Air Flotation Advantage
The most effective white water / recycling design. Large effective settling area
With optional chemical processing stage - improved separation efficiency
Compact clarifier and reaction cell design - surface loading up to 15m3/m2hr
Rugged design for easy understanding, operation and maintenance
Carbon steel and stainless steel body material design, the lowest cost of ownership.
Dissolved Air Flotation Process
Dissolved Air Flotation Features
Total suspended solids (TSS) reduced by up to 97%
Chemical oxygen demand (COD) removal rate of up to 60-80%
Integrated sludge hopper for easy removal of solid deposits
The DAF area provides a static space for the formation of the float
Heavy-duty, fully protected, counter-current surface separator that removes surface floats
Dissolved Air Flotation Application
