| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | CE SGS |
| Model Number: | LS |
| Minimum Order Quantity: | 1meter |
| Price: | USD200-1000 Per meter |
| Packaging Details: | Wooden box,Standard container |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 meters per month |
| Features: | Suitable For Shaftless Conveying | Material: | Q345,SS304 |
|---|---|---|---|
| Products Name: | Spiral Screw Conveyor | Thickness: | 16MM~40MM |
| Highlight: | 16MM spiral screw conveyor,LS spiral screw conveyor,16MM Shaftless Screw Conveyor |
||

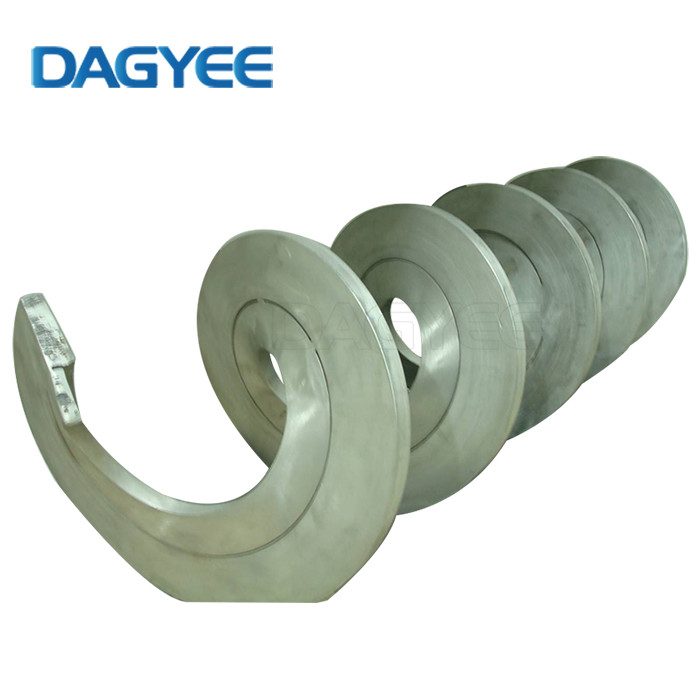

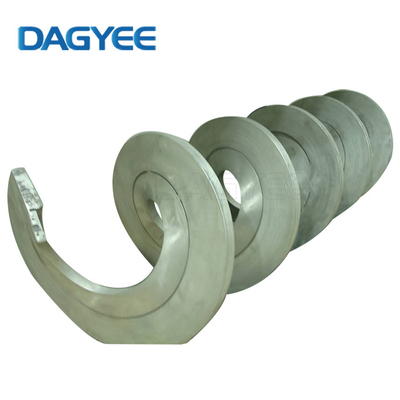

WHAT IS SCREW FLIGHT
DAGYEE was in China to introduce the “continuous spiral blades without a welded joint Manufacturing Machine” from overseas, and we continue to manufacture high-standard and quality spiral blades with state-of-art technologies.
Committed to producing high-efficiency screw conveyers and accessories, Dagyee is the most dedicated manufacturer capable of achieving highest quality requirements in versatile screw flight.
DAGYEE SCREW FLIGHT KEYWORDS
Continuous screw flight without a welded joint in about 2 meters
Screw flight with a large diameter and thickness
SCREW FLIGHT SPECIFICATIONS
| NO. | Diameter | Bottom diameter | Leaf height | Pitch | Length | Thickness | Density | Weight |
| D | d | c | S | mm | mm | kg/m | ||
| 1 | 200 | 80 | 60 | 200 | 1000 | 16 | 7.85 | 18.48 |
| 2 | 220 | 80 | 70 | 220 | 1000 | 20 | 7.85 | 26.46 |
| 3 | 220 | 100 | 60 | 220 | 1000 | 16 | 7.85 | 18.99 |
| 4 | 220 | 100 | 60 | 220 | 1000 | 18 | 7.85 | 21.37 |
| 5 | 220 | 100 | 60 | 220 | 1000 | 20 | 7.85 | 23.74 |
| 6 | 260 | 100 | 80 | 260 | 1000 | 20 | 7.85 | 30.56 |
| 7 | 260 | 120 | 70 | 260 | 1000 | 16 | 7.85 | 22.24 |
| 8 | 260 | 120 | 70 | 260 | 1000 | 18 | 7.85 | 25.02 |
| 9 | 260 | 120 | 70 | 260 | 1000 | 20 | 7.85 | 27.8 |
| 10 | 280 | 120 | 80 | 280 | 1000 | 20 | 7.85 | 31.24 |
| 11 | 280 | 140 | 70 | 280 | 1000 | 18 | 7.85 | 25.52 |
| 12 | 300 | 140 | 80 | 300 | 1000 | 18 | 7.85 | 28.67 |
| 13 | 300 | 140 | 80 | 300 | 1000 | 20 | 7.85 | 31.85 |
| 14 | 320 | 160 | 80 | 320 | 1000 | 20 | 7.85 | 43.22 |
| 15 | 320 | 160 | 80 | 320 | 1000 | 22 | 7.85 | 37.64 |
| 16 | 380 | 220 | 80 | 380 | 1000 | 25 | 7.85 | 42.88 |
| 17 | 380 | 120 | 130 | 380 | 1000 | 25/20 | 7.85 | 54.14 |
| 18 | 460 | 300 | 80 | 460 | 1000 | 25 | 7.85 | 43.78 |
| 19 | 460 | 180 | 140 | 460 | 1000 | 20/25 | 7.85 | 60.13 |
| 20 | 560 | 400 | 80 | 560 | 1000 | 30 | 7.85 | 57.82 |
| Material | low-carbon steel, manganese steel, stainless steel | |||||||
| Processing Craft | Continued cold rolling, Continued twisting, Stamping and estending | |||||||
| Inner Dia. | ≥8MM | |||||||
| Outer Dia. | ≤900MM | |||||||
| Thickness | 16MM~40MM | |||||||
| Colour | Red, Green, Black, Self-colour or as requested | |||||||
| Date of delivery | 0~50 meters with in a week. | |||||||
