| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | ISO SGS CE |
| Model Number: | DAF-020 |
| Minimum Order Quantity: | 1set accept customized |
| Price: | USD9500-65000 |
| Packaging Details: | Wooden box,steel frame ,Standard container |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 set per month |
| Material: | Carbon Steel SUS304 SUS316 | Voltage:: | 380V 3 Phase 50hz Or According To Your Requirements |
|---|---|---|---|
| Capacity:: | 2-200m3/hr | Purpose:: | Wastewater Treatment Equipment To Remove TSS, Grease, Phosphorus And Nitrogen |
| Brand:: | DAGYEE | Certification:: | ISO CE SGS Or Other |
| Project Operation Experience:: | More Than 200 Sets | Material:: | Carbon Steel, Sus304 Sus316 |
| DAF After-sales Service:: | Operating Instructions, Installation Guidance, Video Operation, Free Accessories, Optional On-site Service |

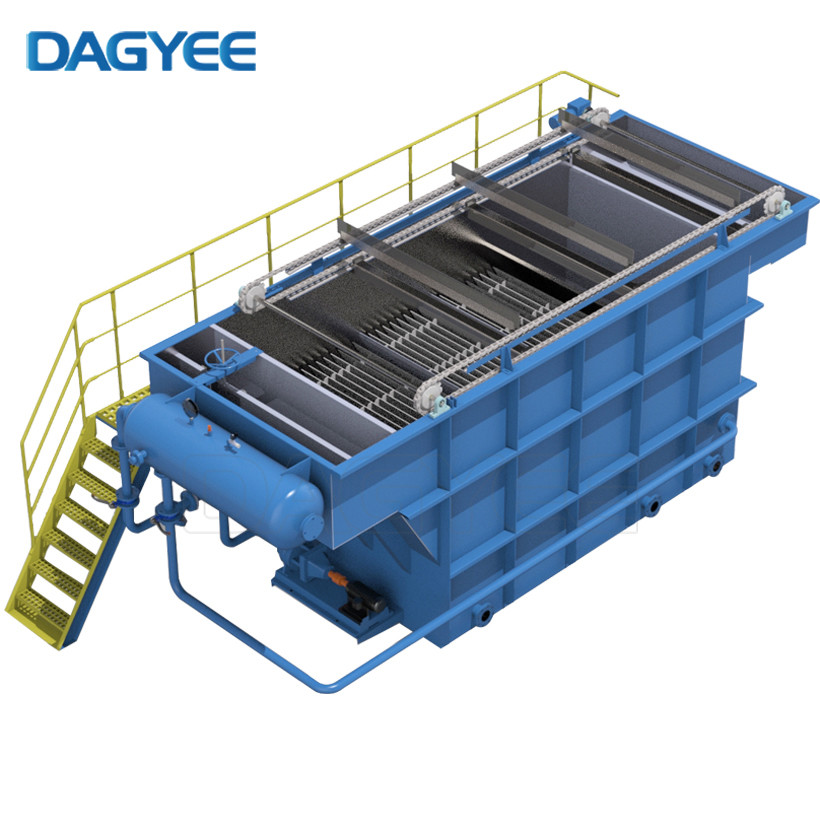

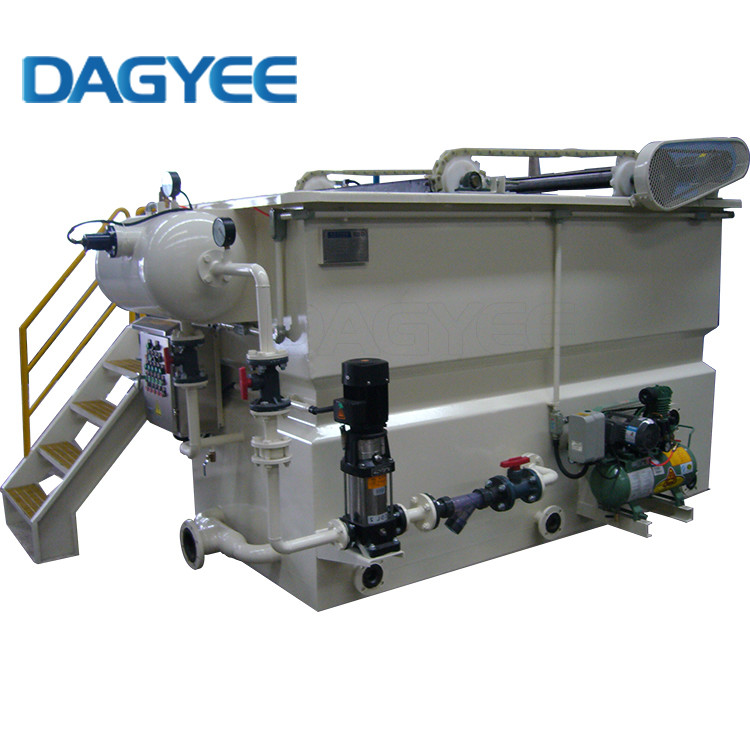

ISO 2-200m3 / Hr Dissolved Air Flotation DAF Domestic Wastewater Treatment
DAF Water Treatment System Introduction
Dissolved Air Flotation (DAF) unit is a water treatment process that clarifies wastewaters (or other waters) by the removal of suspended matter such as oil or solids. The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at atmospheric pressure in a flotation tank. The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.
DAF Water Treatment System Application
1. Oil-water separation of wastewater in petrochemical industry (emulsified oil and vegetable oil);
2. Pretreatment of wastewater in textile, dyeing, bleaching, wood spinning and paper industry;
3. Wastewater treatment in surface treatment (galvanization, PCB, pickling) industry;
4. Pretreatment of effluent in pharmacy, chemical, papermaking, tannery, slaughter, and food industry;
5. Replacement of Clarifiers in WWTPs.
Dissolved Air Flotation Tech
|
DAF |
Capacities |
Piping Connections |
Physical Dimensions(m) |
Weight |
Operating |
|||||
|
Inlet(a) |
Effluent(b) |
Sludge(c) |
Vent(d) |
L/L1 |
W/W1 |
H/H1 |
||||
|
DAF-002 |
2 |
DN50 |
DN50 |
DN100 |
DN100 |
3.4/2.5 |
2.4/1.16 |
2.2/1.7 |
1300 |
4000 |
|
DAF-003 |
3 |
DN50 |
DN50 |
DN100 |
DN100 |
3.7/2.8 |
2.4/1.16 |
2.2/1.7 |
1500 |
5000 |
|
DAF-005 |
5 |
DN80 |
DN80 |
DN100 |
DN80 |
4/3 |
2.4/1.16 |
2.2/1.7 |
1600 |
7000 |
|
DAF-010 |
10 |
DN100 |
DN100 |
DN100 |
DN100 |
4.65/3.8 |
2.7/1.36 |
2.4/1.9 |
2000 |
12000 |
|
DAF-015 |
15 |
DN125 |
DN100 |
DN150 |
DN100 |
5.6/4.5 |
2.9/1.66 |
2.5/2 |
2200 |
18000 |
|
DAF-020 |
20 |
DN150 |
DN150 |
DN150 |
DN100 |
5.9/4.8 |
3.2/1.96 |
2.5/2 |
3000 |
22000 |
|
DAF-030 |
30 |
DN150 |
DN150 |
DN150 |
DN100 |
6.8/5.5 |
3.2/2.16 |
2.7/2.2 |
3800 |
32000 |
|
DAF-040 |
40 |
DN200 |
DN150 |
DN150 |
DN100 |
8/6.7 |
3.6/2.6 |
2.7/2.2 |
5000 |
45000 |
|
DAF-050 |
50 |
DN200 |
DN150 |
DN150 |
DN100 |
8.4/7 |
3.6/2.6 |
2.7/2.2 |
5500 |
55000 |
|
DAF-060 |
60 |
DN250 |
DN200 |
DN150 |
DN100 |
9.9/8.4 |
3.8/2.8 |
2.9/2.4 |
6000 |
66000 |
|
DAF-070 |
70 |
DN250 |
DN200 |
DN150 |
DN100 |
10.4/9 |
3.8/2.8 |
2.9/2.4 |
6500 |
75000 |
|
DAF-080 |
80 |
DN250 |
DN250 |
DN150 |
DN100 |
10.8/9.4 |
4/3 |
2.9/2.4 |
7500 |
100000 |
|
DAF-100 |
100 |
DN300 |
DN250 |
DN150 |
DN100 |
12.1/10.6 |
4.2/3.2 |
2.9/2.4 |
9000 |
110000 |
|
DAF-120 |
120 |
DN300 |
DN250 |
DN150 |
DN100 |
12.5/11.4 |
4.4/3.4 |
2.9/2.4 |
10000 |
130000 |
Dissolved Air Flotation Advantage
The most effective white water / recycling design. Large effective settling area.
With optional chemical processing stage - improved separation efficiency.
Compact clarifier and reaction cell design - surface loading up to 15m3/m2hr.
Rugged design for easy understanding, operation and maintenance.
Carbon steel and stainless steel body material design, the lowest cost of ownership.
Dissolved Air Flotation Process
Dissolved Air Flotation Features
Total suspended solids (TSS) reduced by up to 97%.
Chemical oxygen demand (COD) removal rate of up to 60-80%.
Integrated sludge hopper for easy removal of solid deposits.
The DAF area provides a static space for the formation of the float.
Heavy-duty, fully protected, counter-current surface separator that removes surface floats.
Dissolved Air Flotation Application
