| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DAF-100 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Brand Name: | Dagyee | Flow Rate: | 100m3/hr |
|---|---|---|---|
| Material: | Steel Bracket | Power Consumption: | 12.9KW |
| Footprint: | 12.1*4.2m | DAF Flow Rate: | 100m3/hr |
| Type: | Automatic | Warranty: | 1 Year |
| Highlight: | 12.9KW DAF Water Treatment System,100m3/H DAF Water Treatment System,dissolved air flotation unit |
||

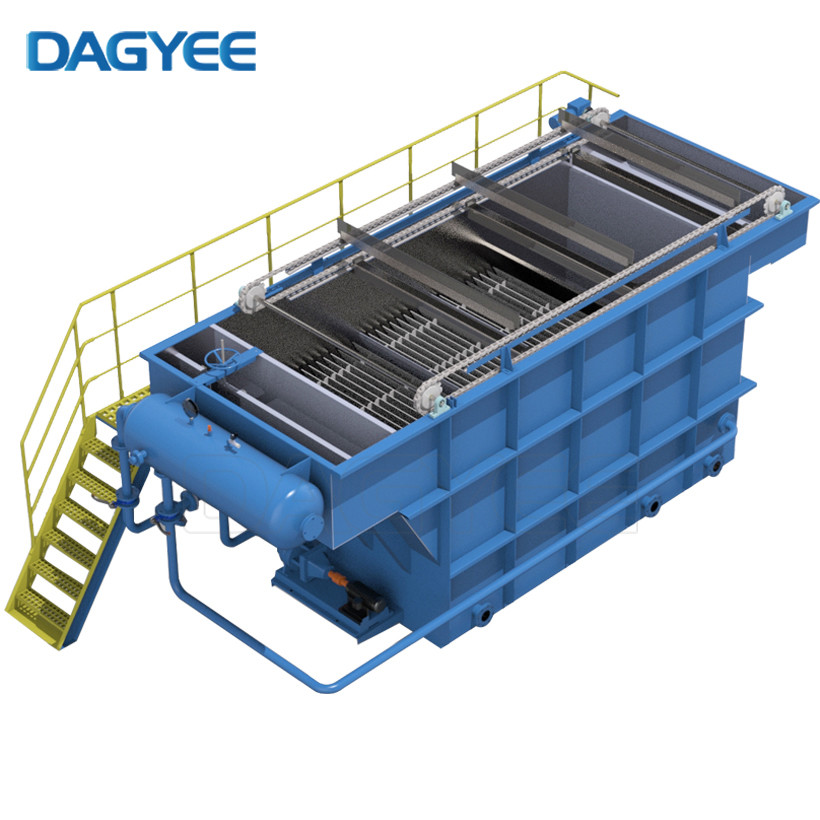

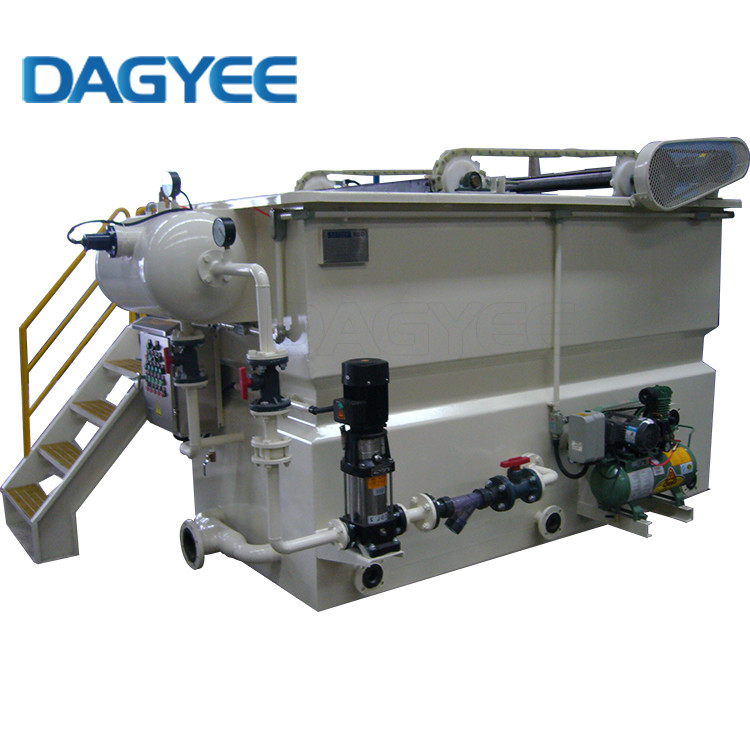

100m3/H Remove Oil SS Pipe Flocculator Horizontal Dissolved Air Flotation Clarifier DAF Water Treatment System
DAF dissolved air flotation consists of flotation tank, dissolved air system, reflux pipe, dissolved air released system, skimmer (Based on customer needs, there are combined type, traveling type and chain-plate type to choose.), electric cabinet and so on.
Air flotation separation technology of DAGYEE DAF dissolved air into water at certain working pressure. In the process, pressurized water is saturated with dissolved air and is discharged into a flotation vessel. The microscopic air bubbles produced by released air attach to suspended solids and float them to the surface, forming a sludge blanket. A scoop removes the thickened sludge. Finally, it complete purifies the water.
100m3/hr Dissolved Air Flotation Specification
| Parameter | Units | DAF 100 |
|
DAF Flow Rate |
m3/hr |
100 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
12.9 |
|
Footprint |
m |
12.1*4.2 |
|
Inlet |
in |
12 |
|
outlet |
in |
10 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
| STANDARD INCLUSIONS + OPTIONS ✓= Standard Supply, o = Optional Supply |
||
|
Skimmer Mounted Plant |
✓ |
|
|
Feed Pump |
✓ |
|
|
Micro bubble generator |
✓ |
|
|
Recycle clean water system |
✓ |
|
|
Maintenance platform, ladder |
✓ |
|
|
Pre-Treatment |
o |
|
|
Control System |
✓ |
|
|
Control System with PLC |
o |
|
|
Air Compressor |
✓ |
|
|
Treated Water Recycling for Saturator |
o |
|
|
Coagulation, flocculation reaction device |
o |
|
|
Chemical powder dissolving dosing device |
o |
|
Main Process Characteristics
Dissolved air pump edge bibulous the edge is inspiratory, pump pressurized mix within, gas to liquid efficient dissolving, small bubbles than 30 um.
Low voltage operation, the dissolved gas efficiency is as high as 99 percent, release rate as high as 99 percent.
Tiny bubbles and suspended particles of efficient adsorption, improve the SS remove effect.
Dissolved gas water dissolving efficiency 80-100 percent, than traditional dissolved gas floating high efficiency three times.
Pressure-capacity curve smooth, easy to achieve automatic control, easy to operate, easy maintenance, low noise.
Application Of Dissolved Air Flotation
Papermaking wastewater treatment and fiber recycling
Printing and dyeing wastewater treatment
Electroplating
Heavy metal ions wastewater treatment
Oily wastewater treatment, tan wastewater treatment
Chemical wastewater treatment
Paint wastewater treatment
Food waste water treatment
Biological treatment of mud and water separation
Low turbidity water treatment
Algae surface water treatment
