| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DCL-080 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Product Name: | Lamella Clarifier | Material: | Standard Container |
|---|---|---|---|
| Weight: | 7500 | Dimensions: | 6.8*2.82*3 |
| Power: | 0.55 | Type: | Automatic |
| Application: | Wastewater Treatment | Function: | Efficient Sedimentation Tank |
| Highlight: | High TSS Removal Lamella Clarifier,Lamella Clarifier,High TSS Removal lamella plates |
||

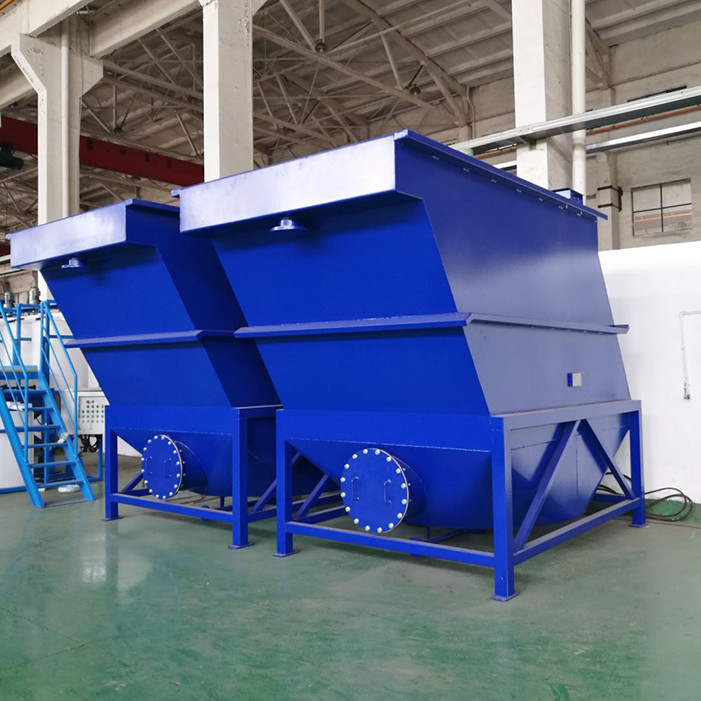

DCL-080 Carbon Steel Or Stainless Steel High TSS Removal Lamella Clarifier Clarification
What Is Lamella Clarifier
The format of the inclined plate sedimentation water purifier is to install a 60° inclined pipe above the sludge suspension layer.
By adding flocculant to the sludge, the suspended solids or flocculent alum flowers accumulate into thin sludge, and then under the inclined pipe In the superficial area, the sludge suspension layer slides back to rely on gravity, and then settles into the
sludge collection hopper, and is discharged into the sludge tank through the sludge pipe for separate treatment or
comprehensive utilization.
The supernatant gradually rises to the collection pipe for discharge or reuse.
80M3/hr Lamella Clarifier Specifications
| Parameter | Units | DCL-080 |
|---|---|---|
| Flow Rate | m3/h | 0-80 |
| Effective Settling Area | m2 | 80 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 6.8*2.82*3 |
| Inlet | Inch | 10 |
| Effluent | Inch | 8 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 7500 |
| Voltage | Standard | 380V/3Phase/50Hz Or Provide your standard when making an inquiry |
| STANDARD INCLUSIONS + OPTIONS | ||
| Lamella Body Epoxy Coated Carbon Steel | ✓ | |
| Feed Pump | o | |
| Floculator Tanks | o | |
| Flash & Floc Mixers | o | |
| Sludge Scraper | o | |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ | |
| Standard Controller | ✓ | |
| Lamella Body – 304ss | o | |
| Lamella Body – 316ss | o | |
| Variable Speed Mixer | o | |
| Access Platform and Ladder | o | |
| Sludge Hopper Actuated Valve | o | |
| Sludge pump | o | |
Range Of Applications
Features Of Lamella Clarifier
Available Designs Of Lamella Clarifier
Dagyee Lamella Clarifier Focus On More Details
