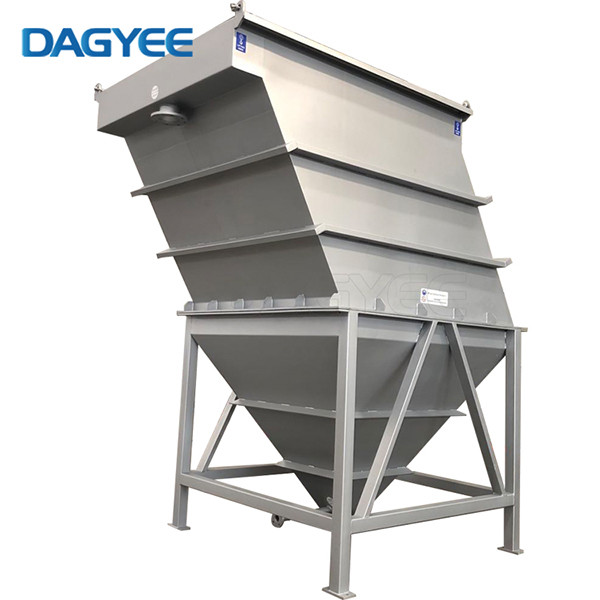

High Capacity Wastewater Sedimentation Lamella Clarifier

DCL-030 Carbon Steel High Capacity Wastewater Sedimentation Classification Equipments​

What Is Lamella Clarifier

Lamella clarifiers are capable of managing feed water with high concentration of suspended solids. Separation results will vary depending on the feed water quality and types of contaminants. The feed water enters the lamella clarifier through the inlet channel on the top and flows to the bottom of the separator.

The water is led back to the top, on its way the water flows through the lamellas, onto which the solid particles settle. Treated water flows to the top and reaches the outlet by passing a weir. The sludge slides down the lamellas and is collected in the sludge funnel. A rabble rake can be installed to prevent caking of the sludge in the conical hopper. The sludge is exported at intervals.

30M3/hr Lamella Clarifier Specifications

Range Of Applications

• Primary clarification of wastewater streams
• Backwash water recovery
• Industrial water treatment systems
• Potable water treatment systems
• River water abstraction clarification
• Wash water recovery and recirculation systems
• Wet scrubber and slaking effluent treatment

Features Of Lamella Clarifier

• Lamella Clarifier minimizes maintenance and operation
• The cost of compact design is much less than
• Standard clarifying agent. Lamella is great for new factories or
• Upgrade existing installations with limited space. system
• The configuration ensures laminar flow conditions, resulting in
• High hydraulic uniformity and high effluent quality. Point source
• Treatment with Lamella is very suitable for many applications.​

Advantages

• Smaller footprint
• Large effective settling area
• Improved overflow rates 2 to 4 times
• Long time to be use
• Normal use without clogging
• Even clogging is provided with backwash device Less possibility for injury

Availbailable Designs

• Inclined plate length 1–2 m
• Plate pitches between 50° and 60°
• Allow for self-cleaning, pitches require backwash
• Loading rates are 5 to 15m/h
• Set up scraper for easy drainage.

Dagyee Lamella Clarifier Focus On More Details
