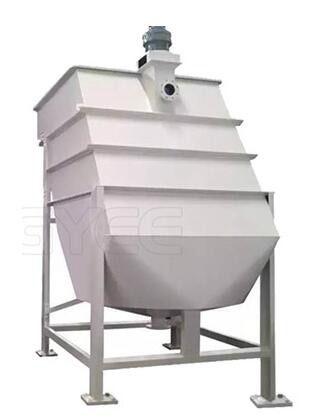

SS304 Carbon Steel 40m3/H Lamella Plate Clarifiers

DCL-040 SS304 Carbon Steel High TSS Removal Water Separation PP Material Lamella Plate Clarifier

What Is Lamella Clarifier

Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids. They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.

40M3/hr Lamella Clarifier Specifications

Range Of Applications

• Heavy Metals Removal
• Filter Press Belt Wash
• Battery Plant Heavy Metals Removal
• Hazardous Waste Remediation
• Brine Clarification
• Plating and Finishing Wastes
• Food & Beverage Waste
• Trace Metals Reduction
• Storm Water Management
• Bleach Plant Wash Water
• Incinerator Wet Scrubber
• Potable Water Pretreatment

Features Of Lamella Clarifier

• Flash mixing/flocculation tank with agitator
• Full glass steel or stainless steel structure
• Concrete tank design
• Special coatings and plates
• Integrated mechanical sludge thickener
• Overhaul platforms and ladders
• In-house laboratory analysis to optimize equipment
• Drinking water design
• Gasket and removable cover
• Automatic desilting
• Instrumentation and control
• Chemical feed equipment
• Sludge treatment and dewatering
• Pilot size units for field testing

Advantages

• Smaller footprint
• Large effective settling area
• Improved overflow rates 2 to 4 times
• Long time to be use
• Normal use without clogging
• Even clogging is provided with backwash device Less possibility for injury

Availbailable Designs

• Inclined plate length 1–2 m
• Plate pitches between 50° and 60°
• Allow for self-cleaning, pitches require backwash
• Loading rates are 5 to 15m/h
• Set up scraper for easy drainage.

Dagyee Lamella Clarifier Focus On More Details
