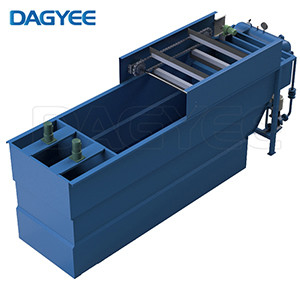

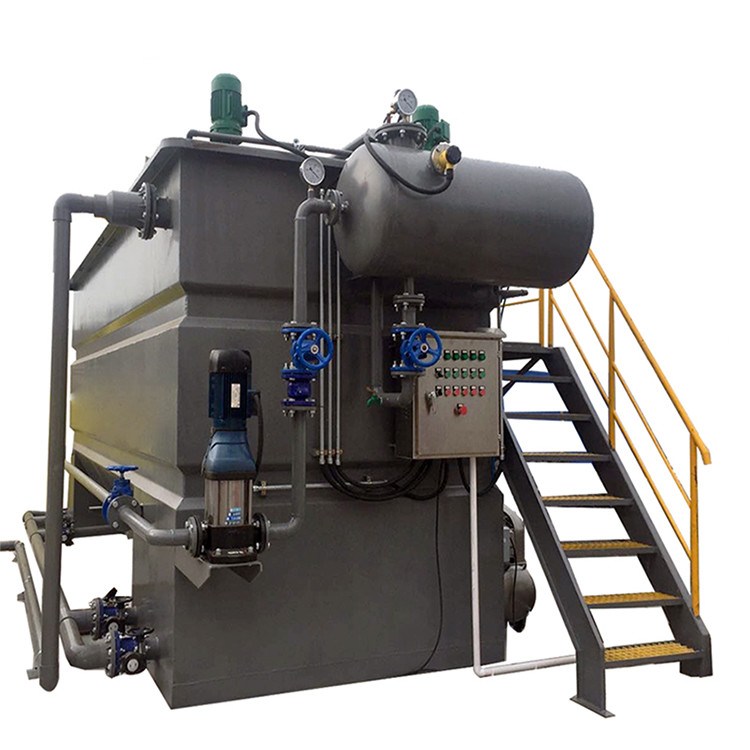

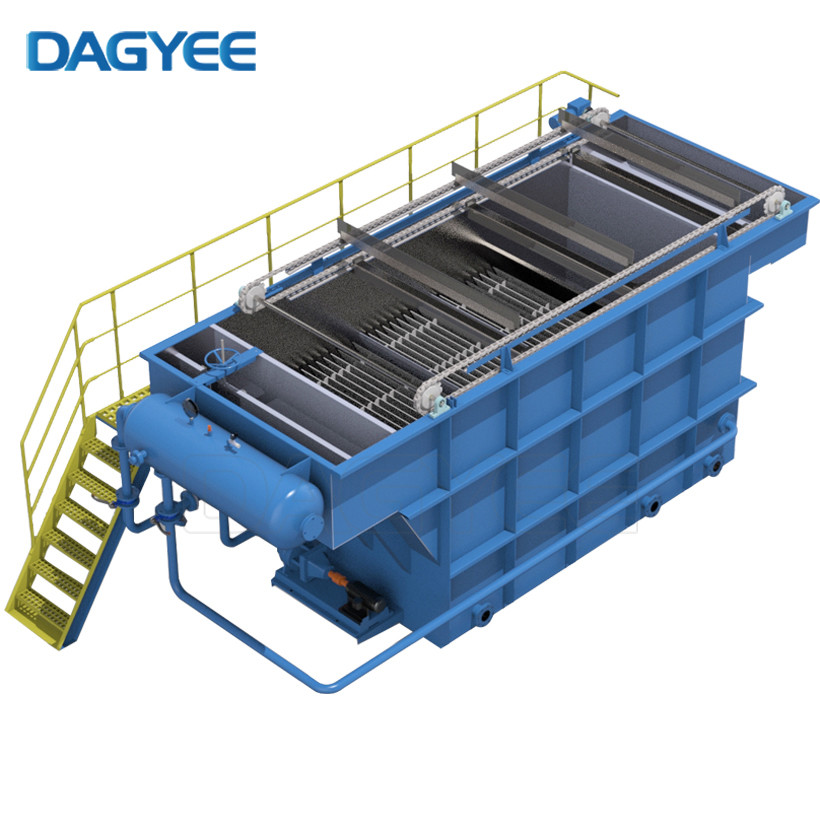

ISO9001 Biochemical Industry Dissolved Air Floatation Flat Flow Type DAF Water Treatment System

DAF-010 Edi ISO9001 Customized Biochemical Industry DAF System For Waste Water Treatment

Dissolved air flotation machine is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.

The air will be send by air compressor into air tank, then take in air dissolved tank by jet flow device, the air will be force to dissolve into water under 0.35Mpa pressure and forming dissolved air water, then send to air flotation tank. Under the circumstance of sudden release, the air dissolved in water will be dissolve out and form vast microbubble group, which will be fully contact the flocculating suspended matter in sewage, the suspended matter was sent by pump and flocculation after adding medicine, the ascending microbubble group will adsorb in the flocculated suspended matter, made its density reduce and floated to water surface, thus reach the purpose of removing SS and CODcr etc.

10m3/hr Dissolved Air Flotation Specification

Application Of Dissolved Air Flotation

• Meat, poultry, and fish processing
• Dairy industry
• Petrochemicals
• Pulp and paper
• Food and beverage

Main Process Characteristics

• Removal Efficiency:
• FOG & TSS: > 90%
• BOD & COD: approx. 50% ( can reach over 60% in some kind of waste water )

FAQ Of Dissolved Air Flotation

• Pre-Sales Service
• 7/24 technical service on line ;
• Free water sample test;
• Engineer on-spot investigation;
• View our Factory.
• After-Sales Service
• One Year Guarantee.
• Training how to install the machine, training how to use the machine.
• Engineers available to service machinery overseas.
