| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DYG-C1-10'' |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET |
| Condition: | New | Product Name: | Cartridge Filter Housings |
|---|---|---|---|
| Material: | SUS304 SUS316 | Flow Rate: | 0.5m3 /h |
| Length Of Filter Cartridge: | 10'' | Max. Cartridge Outside Diameter: | 68mm |
| Dimensions: | 102mm*608mm | MOQ: | 1 Set |
| Highlight: | 68mm ss cartridge filter housing,0.5m3/h ss cartridge filter housing,SUS316 10" water filter housing |
||

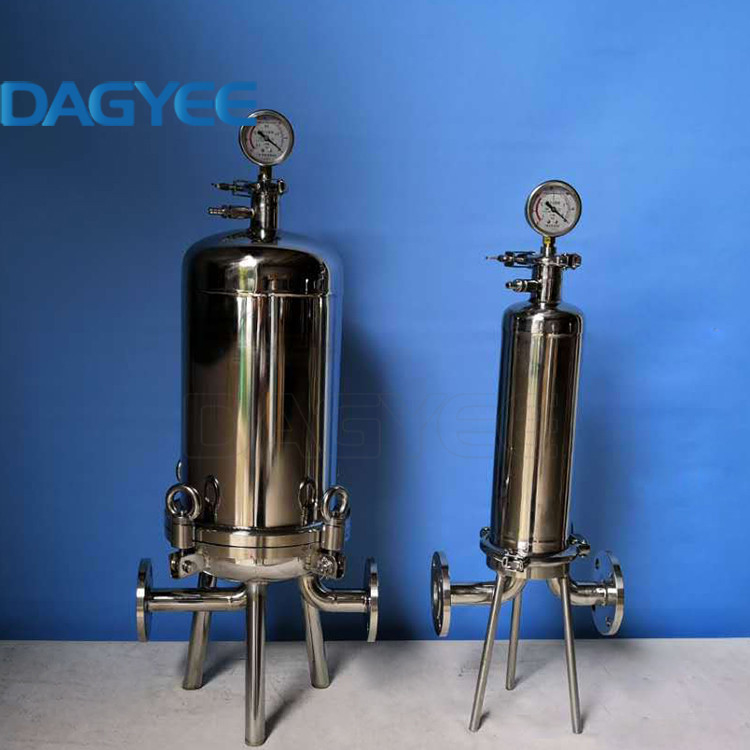

Dagyee DYG-C1-10'' SUS304 SUS316 Customized Single Microporous Cartridges Filter 10''Housings
DAGYEE Cartridge Housing
Multi-barrel stainless steel liquid filter housing is a high-quality solution for high-volume filtration. Our multi-cartridge housing can accommodate 5 to 22 standard 30-inch and 40-inch filter elements, and the liquid filtration flow rate is up to 65 m3/hr.
Commercial and industrial filter housing liquid containers are ideal for chemical systems, commercial RO and membrane water treatment systems for pre-filtration, high-purity water, post-filtration, food and beverage, industrial facilities, etc.
We always have a large stock of stainless steel liquid housings for commercial and industrial use. Most of the models shown are available from stock immediately.
Single Microporous Cartridges Filter 10''Housings Specification
| Model | DYG-C1-10'' |
| Material | SUS304 SUS316 |
| Applicable Filter Cartridges | End Caps/Adapters 222 |
| Filtration accuracy | 0.1-50UM |
| Connection Type | With a clamp |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø102mm*608mm |
| Max. Flow Rate (m3 /h) | 0.5 |
| Max. Operating Conditions (bar/°C) | 6/120 |
| Inlet/Outlet (Quick Connector) | 32 |
| Length of Filter Cartridge | 10'' |
| No. of Filter Cartridges | 1 |
| Max. Cartridge Outside Diameter(mm) | Ø68 |
DAGYEE Cartridge Housing Feature
DAGYEE Cartridge Housing Removal
