Dagyee DYG-5-20'' Customized 304 Whole House 5 Cartridges Accurate Filter Water Housings 20'' With Clamp

Dagyee DYG-5-20'' Customized 304 Whole House 5 Cartridges Accurate Filter Water Housings 20'' With Clamp

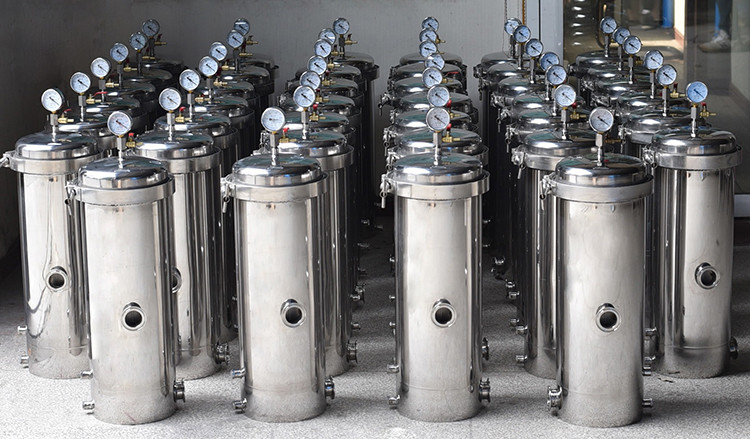

DAGYEE Cartridge Housing


Cartridge filter, also known as security filter. The shell is made of high quality stainless steel, filter using molded filter, The liquid went through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria. Molded filters are: cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter. Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120um.For the same form of filter,it is divided into different models by their dimensions.

5 Cartridges Filter Housings 20'' With Clamp Specification

DAGYEE Cartridge Housing Feature

• Commonly used wound filter and meltblown filter
• Wound filter (also known as honeycomb filter), there are two types: one is polyp
• ropylene fiber - polypropylene skeleton filtration, the maximum temperature 60 ℃; the other is cotton fiber - stainless steel frame filter, the maximum temperature 120 ℃.
• Raw material of meltblown filter is polypropylene, the maximum operating temperature is 60 ℃. Sophisticated filters can remove suspended solids, colloidal substances and some fine particulate matter and so on.

DAGYEE Cartridge Housing Application

• Widely used in UF, RO, EDI security filtration and the end-filtration.
• Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
• Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.
• Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
• Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.
• Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.
• The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.
• Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.

Types of DAGYEE Cartridge Housing

This filter can be applied for most particles so it is broadly for precision filter and sterilization.

• The filter cylinder is 1core,3core,5core,7core,9core,11core,13core,15core
• The length of folding filter core is 10,20,30,40
• The material of the filter core is PTF,Pplysulfone,nylon,pp,acetyl cellulose
• The diameter of the filter hole is 0.1μm,0.22μm,0.45μm,1μm,3μm,5μm,10μm,30μm,60μm,and it is selective as hydrophilic (suitable for gas) and hydrophilic (suitable for liquid) according to your requirement.
