| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT430 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | SUS304 | Net Weight: | 350 Kg |
| Keywords: | Polymers Preparation Dosing | Power: | 0.92 Kw |
| Feature: | Automatic Polymers Making | Warranty: | 1 Year |
| Highlight: | 0.92kw Chemical Dosing Equipment,500LPH Chemical Dosing Equipment,0.92kw polymer preparation system |
||

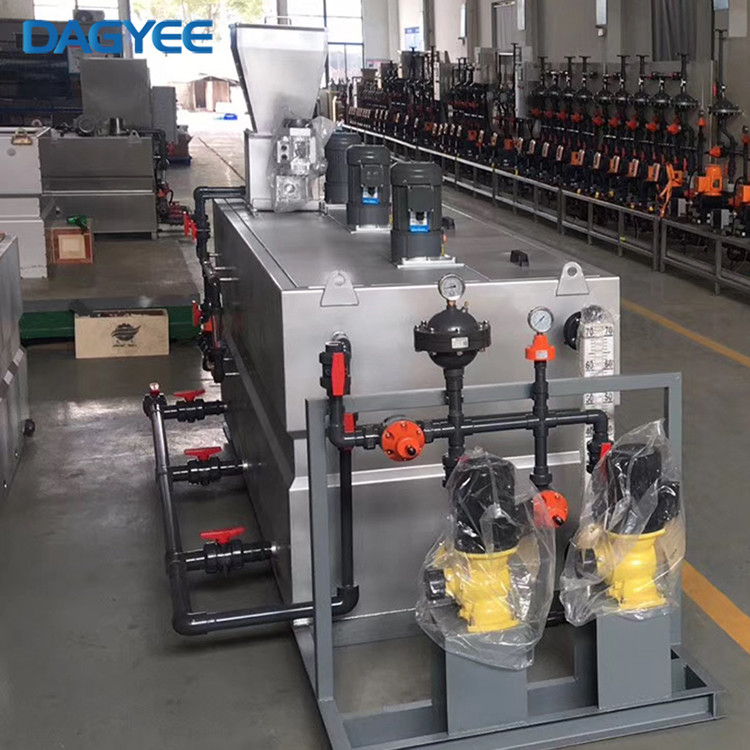

DAGYEE all in one polymer preparation system is used for the dosing of liquid powder flocculants. It can be widely used in water treatment applications in wastewater, papermaking, chemical, petrochemical and mineral processing industries.

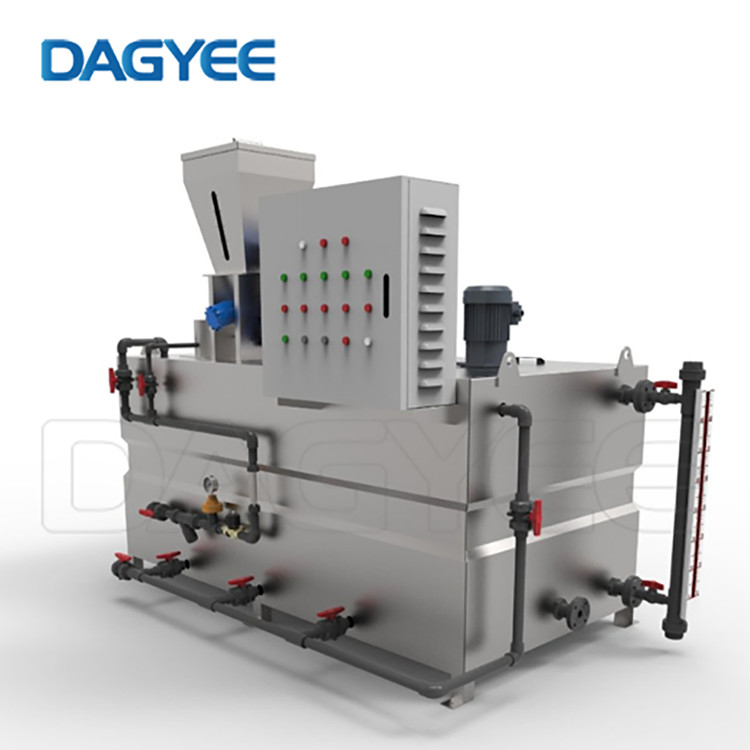

Three chamber continuous flow system with control panel, powder feeder, diaphragm metering pump, mixer and agitator are all integrated in one solution.
Dissolution chamber, maturation chamber and storage room are designed for heavy-duty water treatment environments and are made entirely of polypropylene with stainless steel dosing screws for excellent corrosion resistance.
Intuitive controls allow users to easily calibrate powder dosing units and concentrate pumps, and manage ingredient adjustments with precise speed regulators. At the same time, the conductivity level probe warns the operator of high, low, and critical low levels through emergency warning lights.
Feature
Each chamber is equipped with secure inspection cover and emptying valve
User guided solvent concentration entry
Minimal product carryover
Programmable logic PLC controller
Control cabinet for automatic control of the entire system
Optional automatic control panel version to add polymer in proportion
Version with junction box available on request
Specification
Extraction rate up to 10,000 l / h
Liquid polymer concentration: 0.05 – 1%
Powder polymer concentration: 0.05-0.5%
| AUTOMATIC POLYMER DOSING SYSTEM EQUIPMENT SPECIFICATIONS | |||||||||||||
| PT Model |
Capacities (L/h) |
Tank volume (L) | Influent volume | Aging Time | Piping Connections | Physical Dimensions(mm) | Weight (Kg) |
Power | |||||
| (m3/h) | (h) | Inlet | Dosing | Vent | Overflow | L/L1 | W/W1 | H | (KW) | ||||
| PT300 | 300 | 350 | 0.12-0.6 | 1.0-1.5 | DN20 | DN20 | DN20 | DN32 | 940/860 | 470/520 | 1450 | 250 | 0.54 |
| PT500 | 500 | 750 | 0.3-1.5 | 1.0-1.5 | DN25 | DN25 | DN25 | DN32 | 1370/1290 | 680/730 | 1450 | 350 | 0.92 |
| PT1000 | 1000 | 1580 | 0.6-3 | 1.0-1.5 | DN25 | DN25 | DN25 | DN40 | 1800/1720 | 900/950 | 1620 | 480 | 1.3 |
| PT1500 | 1500 | 2200 | 0.8-4 | 1.0-1.5 | DN32 | DN32 | DN25 | DN40 | 2130/2050 | 1070/1120 | 1620 | 560 | 1.7 |
| PT2500 | 2500 | 4050 | 1.6-8 | 1.0-1.5 | DN40 | DN40 | DN40 | DN50 | 2450/2370 | 1220/1270 | 2000 | 790 | 2.4 |
| PT4000 | 4000 | 6170 | 2.4-12 | 1.0-1.5 | DN40 | DN40 | DN40 | DN65 | 2780/2700 | 1390/1440 | 2250 | 1050 | 3.2 |
Complete PAM Batching Metering Systems
The polymer preparation unit automatically prepares polymer solutions used as coagulants, and these solutions can be used for suspended particles in water treatment processes from swimming pool maintenance to wastewater treatment, as well as oil recovery, color removal, papermaking and beneficiation.
The Dagyee series contains 6 models and can provide polymer solutions up to 4000 l / h. This series is also equipped with various electrical control panels, mixers, optional diaphragm pumps and tank sizes to provide the best solution for every application. Its design also means that Dagyee offers a flexible and compact footprint solution to fit in tight spaces.
Dagyee DT430 Polymer Preparation Systems Integrated Chemical Dosing Device
