| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT4165 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | SUS304 | Capacity: | 4000 |
| Usage: | Pure Water Process | Color: | As Requirement |
| After-sales Service Provided: | Online Support | Warranty: | 12 Months |
| Highlight: | SUS304 Polymer Preparation Unit,4000L polymer preparation unit,SUS304 polymer preparation system |
||

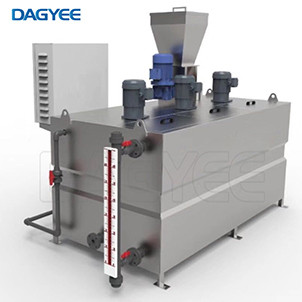

Dagyee DT4165 Electrochemical Coagulant Dosing Sus304 Polymer Preparation Unit
A polymer station is a chemical or polymer dosing equipment used for the preparation and dosage of the chemical solution. After the chemicals dry powder is stored inner the device, it automatically finishes the whole solution preparation steps including powder feeding, powder dissolving, solution making, solution quantitative dosing.
Auto-Dosing Device for wastewater is installed before Spiral Type Sludge Dewatering Equipment. It is used in PAM (polyacrylamide) dosing dissolving mixing and solution dosing. It consists of triple cavity case, dry powder addition system, liquid mixing system, control system, liquid injection system.
Specification
Extraction rate up to 10,000 l / h
Liquid polymer concentration: 0.05 – 1%
Powder polymer concentration: 0.05-0.5%
| AUTOMATIC POLYMER DOSING SYSTEM EQUIPMENT SPECIFICATIONS | |||||||||||||
| PT Model |
Capacities (L/h) |
Tank volume (L) | Influent volume | Aging Time | Piping Connections | Physical Dimensions(mm) | Weight (Kg) |
Power | |||||
| (m3/h) | (h) | Inlet | Dosing | Vent | Overflow | L/L1 | W/W1 | H | (KW) | ||||
| PT300 | 300 | 350 | 0.12-0.6 | 1.0-1.5 | DN20 | DN20 | DN20 | DN32 | 940/860 | 470/520 | 1450 | 250 | 0.54 |
| PT500 | 500 | 750 | 0.3-1.5 | 1.0-1.5 | DN25 | DN25 | DN25 | DN32 | 1370/1290 | 680/730 | 1450 | 350 | 0.92 |
| PT1000 | 1000 | 1580 | 0.6-3 | 1.0-1.5 | DN25 | DN25 | DN25 | DN40 | 1800/1720 | 900/950 | 1620 | 480 | 1.3 |
| PT1500 | 1500 | 2200 | 0.8-4 | 1.0-1.5 | DN32 | DN32 | DN25 | DN40 | 2130/2050 | 1070/1120 | 1620 | 560 | 1.7 |
| PT2500 | 2500 | 4050 | 1.6-8 | 1.0-1.5 | DN40 | DN40 | DN40 | DN50 | 2450/2370 | 1220/1270 | 2000 | 790 | 2.4 |
| PT4000 | 4000 | 6170 | 2.4-12 | 1.0-1.5 | DN40 | DN40 | DN40 | DN65 | 2780/2700 | 1390/1440 | 2250 | 1050 | 3.2 |

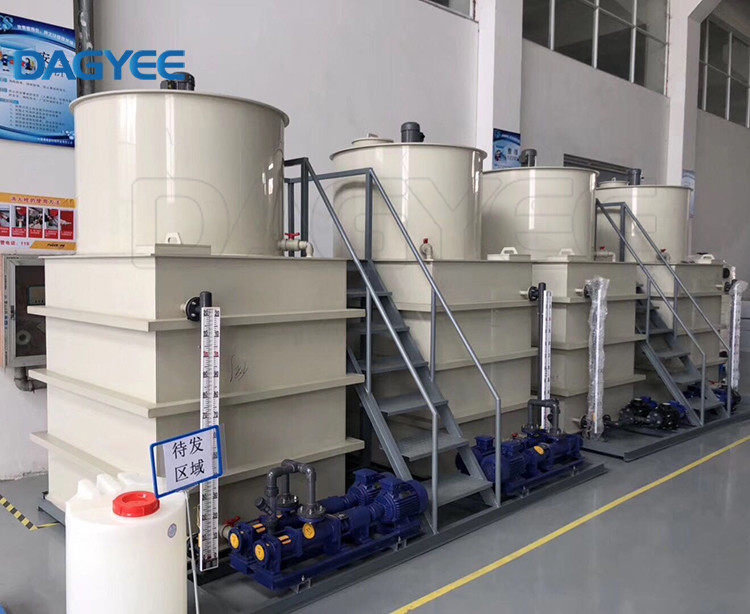

Complete PAM Batching Metering Systems
The polymer preparation unit automatically prepares polymer solutions used as coagulants, and these solutions can be used for suspended particles in water treatment processes from swimming pool maintenance to wastewater treatment, as well as oil recovery, color removal, papermaking and beneficiation.
The Dagyee series contains 6 models and can provide polymer solutions up to 4000 l / h. This series is also equipped with various electrical control panels, mixers, optional diaphragm pumps and tank sizes to provide the best solution for every application. Its design also means that Dagyee offers a flexible and compact footprint solution to fit in tight spaces.
The Feature Of Dissolver Dosing Device
The Application Of Dissolver Dosing Device
The Service Of Company
Our extensive product range represents a unique combination of design, development and implementation know how. With a wide and ever evolving range of products and ancillaries, we can offer specific and comprehensive solutions for a variety of industrial applications. Our solutions are conceived to fit seamlessly into your operation, optimizing the processes and applications.
.
