| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT958 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | Stainless Steel | Capacity: | 1000 |
| Keywords: | Polymers Preparation Dosing | Certification: | ISO9001 |
| Function: | Auto Polymer Preparation | Dosing Point: | 3 Points |
| Highlight: | 1000L Chemical Dosing Equipment,1.3kw Chemical Dosing Equipment,1000L chemical dosing machine |
||

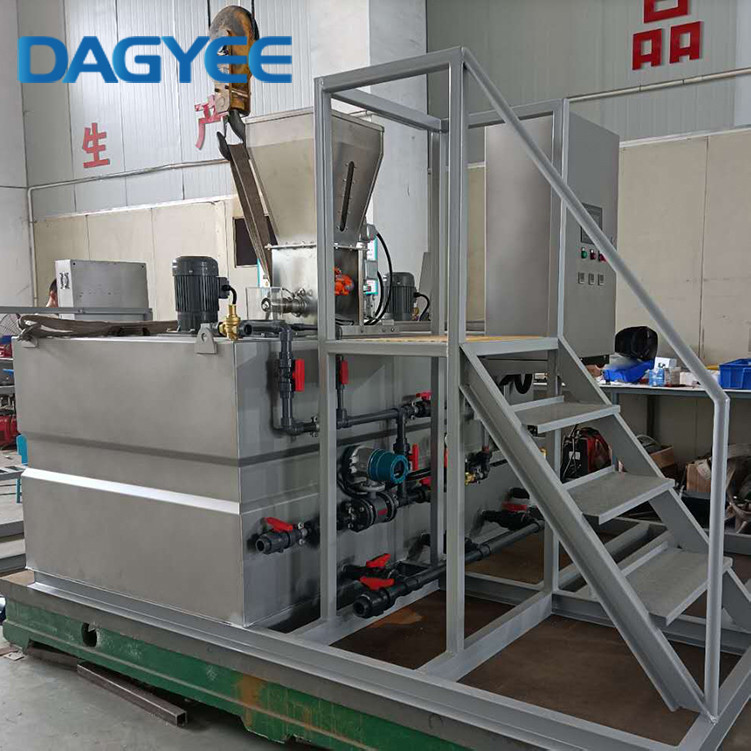

Dagyee DT958 Automated Continuous Flow Polymer Preparation Pam Make Up Unit
This device is an automatic and continuous powder dispensing and dosing system.The dry powder enters the premix and water from the screw at the bottom of the hopper for premix, and the wet material enters the mixing tank for dilution and mixing, and is prepared according to the concentration required by the user.
The preparation solution goes from the preparation tank to the curing tank and then into the storage tank. When the liquid level of the storage tank is at a high level, the preparation process will automatically stop, and when the solution drops to a low level, the batching process will automatically start.Agitator is set in both preparation tank and curing tank to ensure the dilution and curing of reagents.The prepared flow rate and concentration can be determined by adjusting the inlet flow rate and the rotating speed of the screw shaft.
| Model | DT958 |
| Capacity(L/h) | 1000 |
| Power(kw) | 1.3 |
| Powder dosage(kg/h) | 0.8-1.5 |
| Water inlet flow(m3/h) | 0.6-3 |
| L(mm) | 1800 |
| B(mm) | 950 |
| H(mm) | 1620 |
| L1(mm) | 1720 |
| B1(mm) | 900 |
| Net weight(kg) | 480 |
The Feature Of Dissolver Dosing Device
The Application Of Dissolver Dosing Device
Function with dosing , mixing, conveying and automatic controlling, DAGYEE chemical dosing device is widely used for raw water treatment of power plants, boiler feedwater treatment, oilgathering dewater treatment, all kinds of chemical dosing and wastewater treatment, also can be used for automatic dosing of coagulate, phosphate removing agent, ammonia, whitewash, corrosion inhibitor antisludging agent, etc.
The Service Of Company
No matter which processes and applications are planned Dagyee has a solution in the cleaning and hygiene of kitchens and laundries and surfaces of all types in applications like offices and restaurants, hospitals and hotels, retailers and schools, car washes and swimming pools, cooling towers, energy, food & beverage, water gas utilities potable and waste water treatment .
