| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DCL-060 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Product Name: | Lamella Clarifier | Model: | DCL-060 |
|---|---|---|---|
| Capacity: | 60M3/hr | Size: | 4.7*3*3m |
| Power: | 0.55 | Application: | Wastewater Treatment |
| Type: | Automatic | Function: | Efficient Sedimentation Tank |
| Highlight: | Municipal Lamella Clarifier,60M3/h Lamella Clarifier,Municipal lamella plate clarifiers |
||

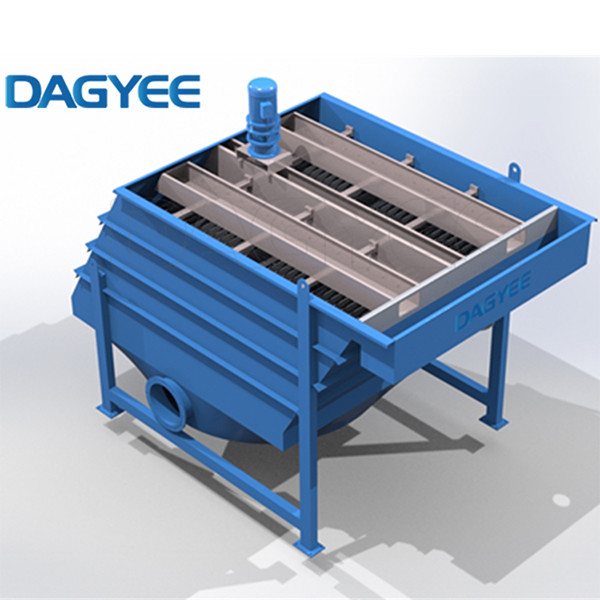

DCL-060 Edi Wooden Package High Rate Separate Solids Municipal Water Treatment Lamella Plate Clarifier
Detailed Description Of The Sedimentation Tank
Total Suspended Solids (TSS) will naturally settle over time due to gravity, but this process can be sped up and improved by having an Inclined Plate. Water flows up the plate at a 60° angle. Gravity will force the solids to settle onto the plate. The particles collect on the plates will become heavier and slide back down the plate to the clarifier cone. This process creates a counter flowing pattern, where the solids are seperated from the liquid into two lanes of traffic. The water flows in the upward bound lane, and the sludge flows in downward lane. This method reduces drag and friction creating a faster settling process than if the solids were to settle naturally.
Flocculants and Coagulants are added to improve the settling time. Coagulants neutralize the negative charge particles allowing them to sink faster. Flocculants allow for the small particles to collect and accumulate. This will make the solids heavier and easier to settle.
60M3/hr Lamella Clarifier Specifications
| Parameter | Units | DCL-060 |
| Flow Rate | m3/h | 0-60 |
| Effective Settling Area | m2 | 60 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 4.7*3*3 |
| Inlet | Inch | 8 |
| Effluent | Inch | 8 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 4800 |
| Voltage | Standard | 380V/3Phase/50Hz Or Provide your standard when making an inquiry |
| STANDARD INCLUSIONS + OPTIONS | ||
| Lamella Body Epoxy Coated Carbon Steel | ✓ | |
| Feed Pump | o | |
| Floculator Tanks | o | |
| Flash & Floc Mixers | o | |
| Sludge Scraper | o | |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ | |
| Standard Controller | ✓ | |
| Lamella Body – 304ss | o | |
| Lamella Body – 316ss | o | |
| Variable Speed Mixer | o | |
| Access Platform and Ladder | o | |
| Sludge Hopper Actuated Valve | o | |
| Sludge pump | o | |
Features Of Lamella Clarifier
Range Of Applications
Lamella Clarifier minimizes maintenance and operation the cost of compact design is much less than standard clarifying agent. Lamella is great for new factories or upgrade existing installations with limited space system . the configuration ensures laminar flow conditions, resulting in high hydraulic uniformity and high effluent quality. Point source treatment with Lamella is very suitable for many applications.
Dagyee Lamella Clarifier Focus On More Details
