| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DCL-030 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Product Name: | Lamella Clarifier | Material: | Standard Container |
|---|---|---|---|
| Power: | 0.55 Kw | Flow Rate: | 0-30 M3/h |
| Inlet: | 6 Inch | Capacity: | 4.2*2.22*3 |
| Weight: | 3000 | Warranty: | 1 Year |
| Highlight: | slant plate clarifiers,30m3/H inclined plate separator,0.55Kw inclined plate separator |
||

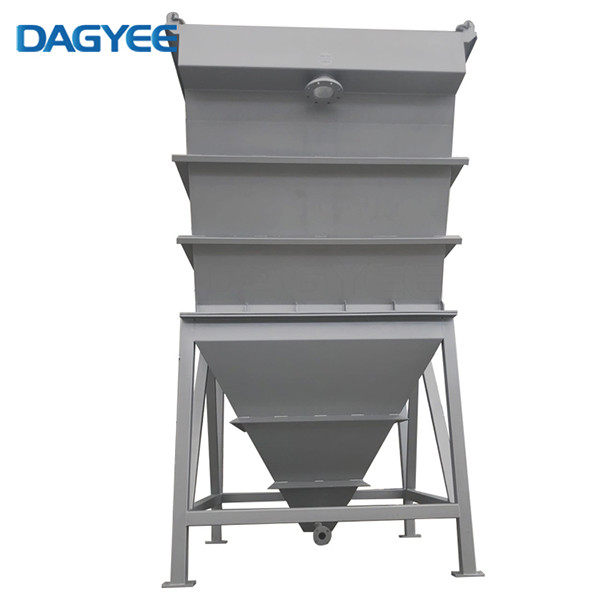

Dagyee DCL-030 PP PVC Lamella Clarifier Membrane Filtration Sludge Separator
What Is Lamella Clarifier
The clarifier consists of a series of inclined plates, which are arranged to form a separate sedimentation chamber between adjacent plates.
The raw water is first fed to Static Mixer. Chemicals like alum, poly electrolyte are added prior to static Mixer for proper mixing of chemicals in water.
Water from Static mixer enters in Flocculator in which paddle type agitator is provided for gentle mixing. Polymer is added for flocculation of coagulated particles.
30M3/hr Lamella Clarifier Specifications
| Parameter | Units | DCL-030 |
| Flow Rate | m3/h | 0-30 |
| Effective Settling Area | m2 | 30 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 4.2*2.22*3 |
| Inlet | Inch | 6 |
| Effluent | Inch | 6 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 3000 |
| Voltage | Standard | 380V/3Phase/50Hz Or Provide your standard when making an inquiry |
| STANDARD INCLUSIONS + OPTIONS | ||
| Lamella Body Epoxy Coated Carbon Steel | ✓ | |
| Feed Pump | o | |
| Floculator Tanks | o | |
| Flash & Floc Mixers | o | |
| Sludge Scraper | o | |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ | |
| Standard Controller | ✓ | |
| Lamella Body – 304ss | o | |
| Lamella Body – 316ss | o | |
| Variable Speed Mixer | o | |
| Access Platform and Ladder | o | |
| Sludge Hopper Actuated Valve | o | |
| Sludge pump | o | |
Range Of Applications
Features Of Lamella Clarifier
Advantages
Availbailable Designs
Dagyee Lamella Clarifier Focus On More Details
