| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | K1 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 tons/month |
| Keywords: | Water Filter System Small Industry | Product Name:: | MBBR Filter Media |
|---|---|---|---|
| Material: | HDPE | Weight: | 150kg/m3 |
| Size: | 10*8mm | Function: | Removing COD BOD NH-N |
| Density: | 0.96g/cm3 | ||
| Highlight: | FAB k1 bio filter media,k1 bio filter media,k1 kaldnes filter |
||

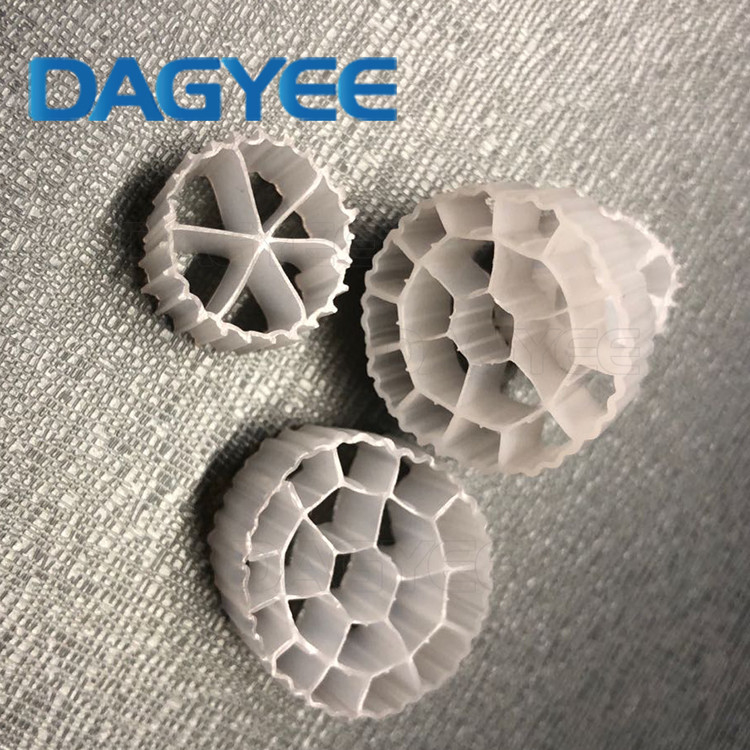

Dagyee K1 ISO9001 Fab Bio Growth Media Mbbr Kaldness Bio Media Filter
What Is MBBR
Moving Bed Biofilm Reactor(MBBR) is a moving media system, used in Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm reaction (MBBR) system.
MBBR technology has the advantages of traditional fluidized bed and biological contact oxidation,also that is a new efficient sewage treatment method,This method can improve the efficiency of the reactor by adding a certain amount of suspension carriers to the reactor and improving the biomass and biological species in the reactor.the negative charged micro-organisms needs the positive charged filter.
MBBR K1 Bio Filter Media Technical Parameter
| Porosity | 85% |
| Doing Ritio | 15-65% |
| Membrane-formng Time | 3-15days |
| gNH4N/M3.d | 400-1200 |
| gBOD5/M3.d | 2000-10000 |
| gCOD5/M3.d | 2000-15000 |
| Applicable temperature | 5-60℃ |
| Life-span | >15years |
| Material | HDPE |
| Model | D1-10-8 |
| Bulk Density | 150kg/m3 |
| Dimensions | Ø10*8mm |
| Total Surface Area | >750m2/m3 |
| Protected Surface Area | >500m2/m3 |
| Material | HDPE |
| Density | 0.96g/cm3 |
| Color | White black OEM |
One cost-effective solution to achieve nutrient removal is the biological treament process. This process employs the
benefits of fixed-film systems into the suspended growth activated sludge process. This hybrid process is referred to as Integrated Fixed-film Activated Sludge (IFAS) technology. The IFAS process is typically divided into a series of stages that include anaerobic, anoxic, and aerobic volumes. Within the IFAS process, media is filled in the aerobic stages and retained
by stainless steel wedge-wire screens located at the effluent end of the process stage.
