| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | K1 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 tons/month |
| Keywords: | Water Filter System Small Industry | Product Name:: | MBBR Filter Media |
|---|---|---|---|
| Material: | HDPE | Applicable PH: | 6~10 |
| Size: | 10*8mm | Density: | 12.5±0.75 Kg/m3 |
| Allocation Rate: | 25%~72% |

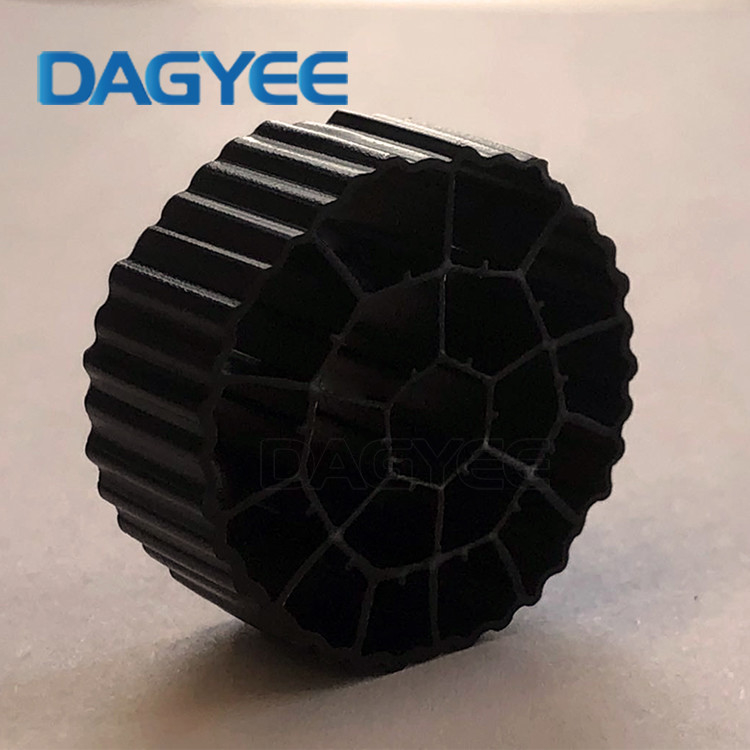

Dagyee K1 Fab Mbbr Moving Bed Floating Bio Filter Media Wastewater Mbbr Fixed Bed
MBBR Filter Floating Media, used in Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm reaction (MBBR) system.
The wastewater goes through suspending media of MBBR reactor, forming biological membrane on the surface of media gradually. With the action of microbial on the biological membrane, wastewater is purified. MBBR media can move freely in the reactor with the mixing of the water. For the aerobic reactor, the aeration will make the media move; for the anaerobic reactor, mechanic mixing will make the media move it in the water.
MBBR K1 Bio Filter Media Technical Parameter
|
Porosity |
85% |
|
Doing Ritio |
15-65% |
|
Membrane-formng Time |
3-15days |
|
gNH4N/M3.d |
400-1200 |
|
gBOD5/M3.d |
2000-10000 |
|
gCOD5/M3.d |
2000-15000 |
|
Applicable temperature |
5-60℃ |
|
Life-span |
>15years |
|
Material |
HDPE |
|
Model |
D1-10-8 |
|
Bulk Density |
150kg/m3 |
|
Dimensions |
Ø10*8mm |
|
Total Surface Area |
>750m2/m3 |
|
Protected Surface Area |
>500m2/m3 |
|
Material |
HDPE |
|
Density |
0.96g/cm3 |
|
Color |
White black OEM |
Features Of MBBR Media
100% Virgin HDPE Material
Smooth and High Precision
ISO Certificate, SGS Test Report
Good Hydrophilicity
Long service life
Extremely easy to install
Biofilter Media Application
The Sewage plant upgrade project , improve the standard and quantity
New sewage treatment project of MBBR and Biological Aerated Filter process
Biochemical treatment of reclaimed water
River regulation denitrification and phosphorus removal
Aquaculture in addition to ammonia nitrogen, water purification
Biological filter media is used for biological deodorization tower
