| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT200 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | Steel Bracket, 304 316 | Water Inlet Flow: | 0-0.2 M3/h |
| Powder Dosage: | 0.2 Kg/h | Capacity: | 200 |
| Net Weight: | 250 Kg | Dosing Operation: | Automatic Delivery |
| Highlight: | 200L Chemical Dosing Equipment,0.54kw Chemical Dosing Equipment,200L automatic dosing machine |
||
Dagyee DT200 ISO9001 Polymer PAM Make Up Systems Solution Preparation Unit

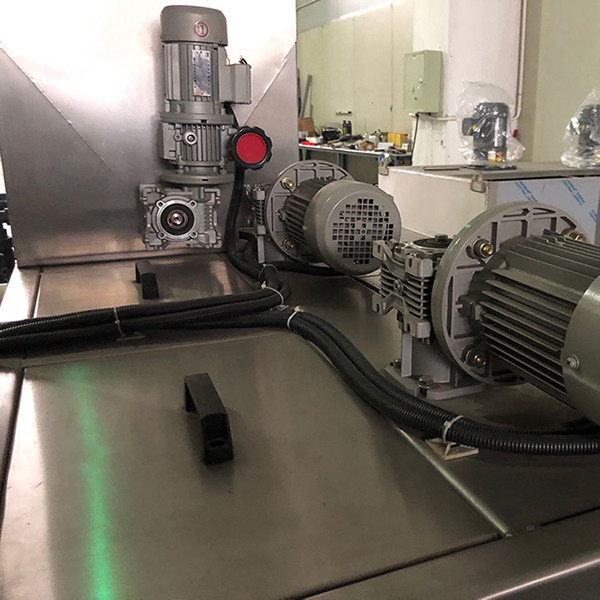

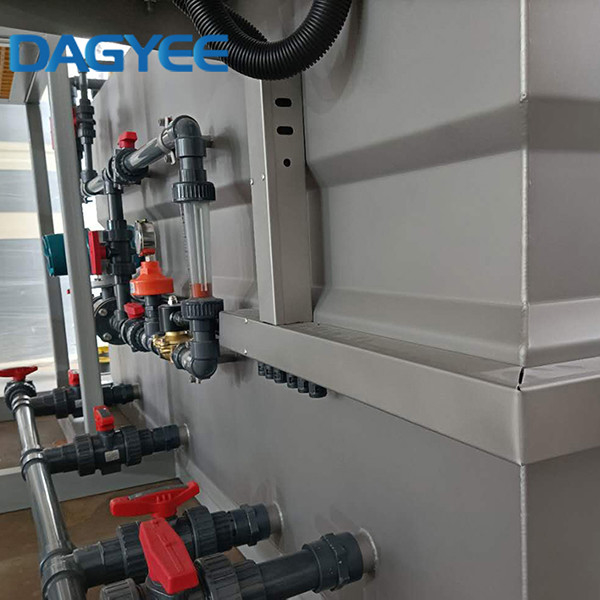

The automatic dosing machine is widely used in the waste water treatment, it can mix the compounds continuously and effectively, so the reactive polymer solution appears. These main components of the machine: Polymer feed machine (including material hopper), Dry powder infiltration device, Tank, Level controller, Mixer, Dosage water inlet pipe, Electric control panel.
| Model | DT200 |
| Capacity(L/h) | 200 |
| Power(kw) | 0.54 |
| Powder dosage(kg/h) | 0.20 |
| Water inlet flow(m3/h) | 0-0.2 |
| L(mm) | 940 |
| B(mm) | 520 |
| H(mm) | 1450 |
| L1(mm) | 860 |
| B1(mm) | 470 |
| Net weight(kg) | 250 |
The Feature Of Dissolver Dosing Device
Complete PAM Batching Metering Systems
Service Of Our Company
Wuxi Dajiang Environmental Technology Co., Ltd. supports its customers in every phase of a project, from the inception of an idea or request,through design and testing to launch and installation. Our in-house research, design and development teams work closely with the local teams, drawing on customer and market inputs. Then using stateof-the-art technologies to optimize costs and using our own specifically designed test benches to ensure rigorous, robust testing, we ensure a quality solution is delivered quickly to market.
