| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | IRD6-1800 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type:: | New Product 2020 |
|---|---|---|---|
| Material: | Standard Wooden Box | Weight: | 1160 Kg |
| Size: | 2800*1350*1700 | Drum Size Mm: | 600x1800 |
| Core Components: | Motor | Product Keywords: | Rotary Drum Screen |
| Highlight: | 0.75kw Rotating Drum Screen,SGS Rotating Drum Screen,0.75kw drum screen wastewater |
||

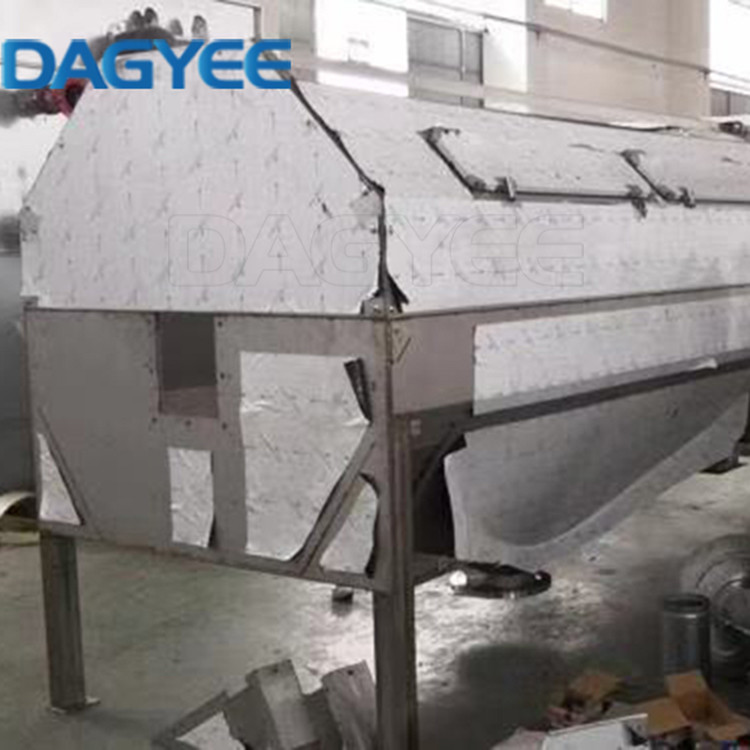

Dagyee IRD6-1800 SGS High Solid Liquid Separation Rotary Drum Screen Wastewater Screening Equipment
What Is External Rotary Drum Screen
Rotating Drum Screen (Internally Fed Rotary Drum Screen) is a device that can continuously and effectively screen out solid suspended solids in water. Mainly used in sewage pretreatment or industrial sieving process. In some sewage treatments, the sieved sewage can remove 30% to 60% of organic or inorganic suspended solids, greatly reducing the processing load of subsequent processes.
Mechanical pretreatment is required for both municipal and industrial wastewater in order to remove coarse materials and separate floating, settling and suspended solids.
IRD6-1800 Type Rotating Drum Screen Technical Table
| DDS Model | IRD6-1800 |
| Drum size mm | Ø600x1500 |
| Dimensions L*W*H(mm) | 2800*1350*1700 |
| Power | 0.75 |
| Weight(Kg) | 1160 |
| Capacities(m3/h)1,2,3(mm) | 60/100/120 |
| Sludge height (mm) | 500 |
Technical Table Of All Models Of Rotary Drum Screen
| DDS Model |
Drum size | Physical Dimensions(mm) | Power | Weight (Kg) |
Capacities(m3/h) | Sludge height | ||||
| mm | L | W | H | KW | 1mm | 2mm | 3mm | mm | ||
| IRD6-900 | Ø600x900 | 1900 | 1350 | 1700 | 0.55 | 630 | 15 | 25 | 30 | 500 |
| IRD6-1200 | Ø600x1200 | 2200 | 1350 | 1700 | 0.55 | 820 | 30 | 50 | 60 | 500 |
| IRD6-1500 | Ø600x1500 | 2500 | 1350 | 1700 | 0.75 | 1000 | 45 | 70 | 85 | 500 |
| IRD6-1800 | Ø600x1800 | 2800 | 1350 | 1700 | 0.75 | 1160 | 60 | 100 | 120 | 500 |
| IRD6-2100 | Ø600x2100 | 3100 | 1350 | 1700 | 1.1 | 1300 | 80 | 135 | 170 | 500 |
| IRD9-1200 | Ø900x1200 | 2300 | 1600 | 2200 | 1.1 | 1200 | 40 | 70 | 85 | 600 |
| IRD9-1800 | Ø900x1800 | 2900 | 1600 | 2200 | 1.1 | 1470 | 80 | 135 | 170 | 600 |
| IRD9-2500 | Ø900x2500 | 3600 | 1600 | 2200 | 1.5 | 1800 | 120 | 200 | 250 | 600 |
| IRD9-3000 | Ø900x3000 | 4100 | 1600 | 2200 | 1.5 | 2100 | 160 | 270 | 350 | 600 |
Applicable scenarios of external rotating drum screen
External Rotary Drum Screen Features
