| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DYG-12D-2S |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET |
| Condition: | New | Material: | Stainless Steel 304/316 |
|---|---|---|---|
| Product Name: | Filter Housing | Filtration Accuracy: | 0.1-200UM |
| Connection Type: | Flange /BSP Female | Max. Flow Rate: | 250 M3 /h |
| Housing Dimensions: | 910*2100 Mm | Length Of Filter Bag: | 810 Mm |
| Highlight: | SUS316 multi bag filter housing,810mm multi bag filter housing,0.1um stainless steel bag filter housing |
||

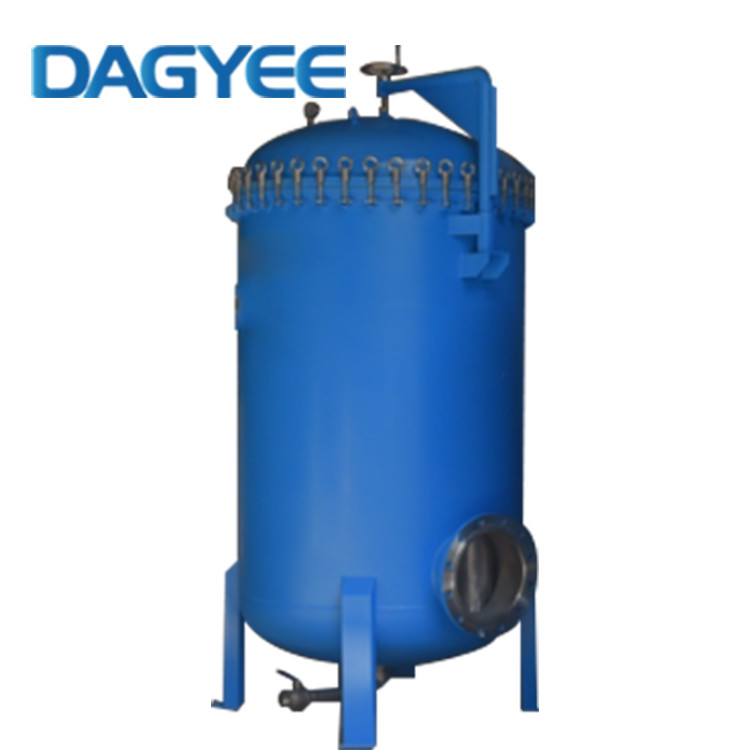

Dagyee DYG-12D-2S SUS316 Automatic 12 Bag Filter Housing Filter Strainers
What Is Cartridge Filter Housing?
Cartridge filter housing is economical and durable.
The overall structure is designed and manufactured in accordance with hygienic requirements.Easy to clean, easy to install. Widely used in water, oil, paint and other liquid purification and machinery, metallurgy, chemical, textile, printing and dyeing, electroplating, medicine, food and other industries.
Multi 12 Bag Filter Housings specification
| Model | DYG-12D-2S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø910*2100 |
| Max. Flow Rate (m3 /h) | 250 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 6'' |
| Length of Filter bag(mm) | 810 |
| No. of Filter bag | 12 |
| Max. bag Outside Diameter(mm) | Ø180 |
DAGYEE Cartridge Housing Feature
Application Of Sanitary Filter Housing
