| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DAF-050 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Condition: | New | Brand Name: | Dagyee |
|---|---|---|---|
| Material: | Steel Bracket, Q235B 304 316 | Weight: | 1500-10000KG |
| Size: | 3.4*2.4*2.2 | Surface Treatment: | Polished & Sandblast |
| Certification: | CE ISO SGS | Package: | Wooden Case |

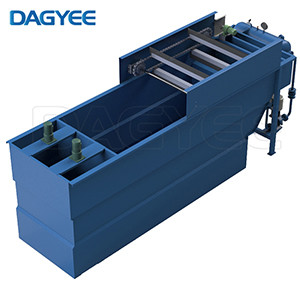

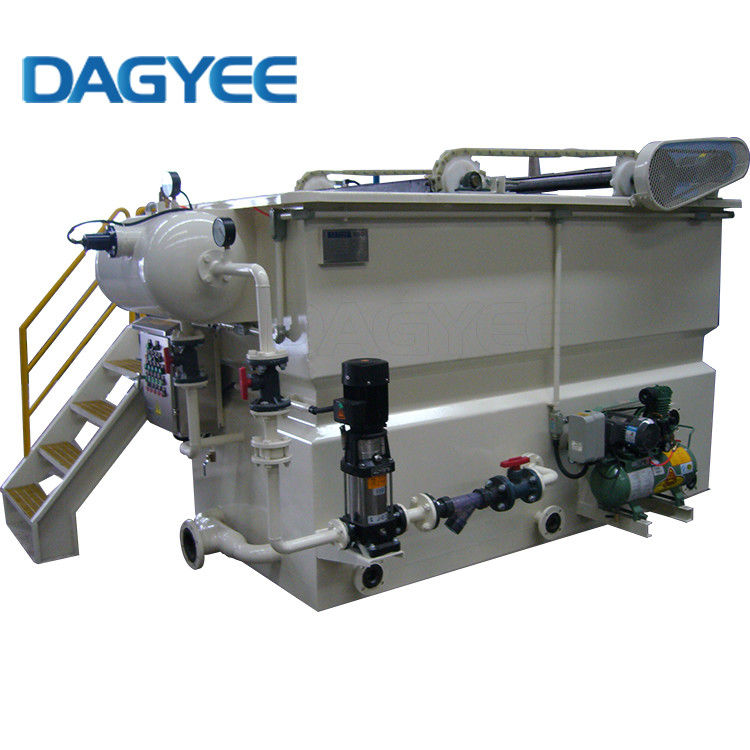

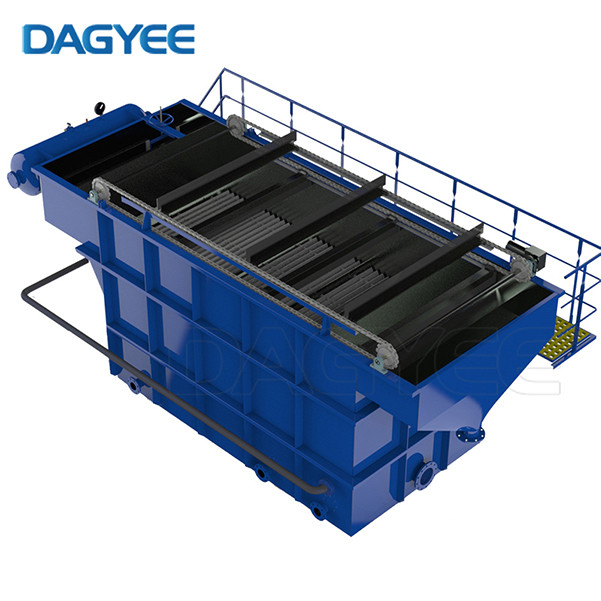

Dagyee DAF-050 Edi Waterproof Tarpaulins Electro Coagulation Nano Bubble Generator Daf Upgrades
Dissolved air flotation is one of the most effective methods whose specific gravity is close to 1.0 from water.
Dissolved Air Flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid , oil and grease etc. Benenv dissolved air flotation is an innovation combined with traditional dissolved air flotation concept and modern technology.
50m3/hr Dissolved Air Flotation Specification
|
Parameter |
Units |
DAF 050 |
|
DAF Flow Rate |
m3/hr |
50 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
7.2 |
|
Footprint |
m |
8.4*3.6 |
|
Inlet |
in |
8 |
|
outlet |
in |
6 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
| STANDARD INCLUSIONS + OPTIONS ✓= Standard Supply, o = Optional Supply |
||
|
Skimmer Mounted Plant |
✓ |
|
|
Feed Pump |
✓ |
|
|
Micro bubble generator |
✓ |
|
|
Recycle clean water system |
✓ |
|
|
Maintenance platform, ladder |
✓ |
|
|
Pre-Treatment |
o |
|
|
Control System |
✓ |
|
|
Control System with PLC |
o |
|
|
Air Compressor |
✓ |
|
|
Treated Water Recycling for Saturator |
o |
|
|
Coagulation, flocculation reaction device |
o |
|
|
Chemical powder dissolving dosing device |
o |
|
Main Process Characteristics
Reduction in wastewater surcharges and further treatment expense. Better energy efficiency—physical separation vs biological treatment. Recovery of useful and marketable by-products. Reduction in chemical usage—smaller more abundant bubbles float a finer floc. Cost efficient, in-house manufacturing.
Application Of Dissolved Air Flotation
Product recovery and reuse
Pretreatment to meet sewer discharge limits
Pretreatment to reduce loading on downstream biological systems
Polishing of biological treatment effluent
Removing silt and grease from industrial water
FAQ Of Dissolved Air Flotation
How to buy your idea products?
A:You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
How to keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.
