| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DAF-50 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Product Name: | Dissolved Air Flotation System Price For Suspension Clarifier | Flow Rate: | 50 M3/hr |
|---|---|---|---|
| Material: | Carbon Steel/stainless Steel | Inlet: | 12 |
| Power Consumption: | 8 KW | Pretreatment: | Painting/RP/stainless Steel |
| Function: | Producing Fresh Wate | Certification: | ISO9001,ISO14001,OHSAS18001 |
| Highlight: | 120m3/h DAF Water Treatment System,FRP DAF Water Treatment System,120m3/h DAF WWTP |
||

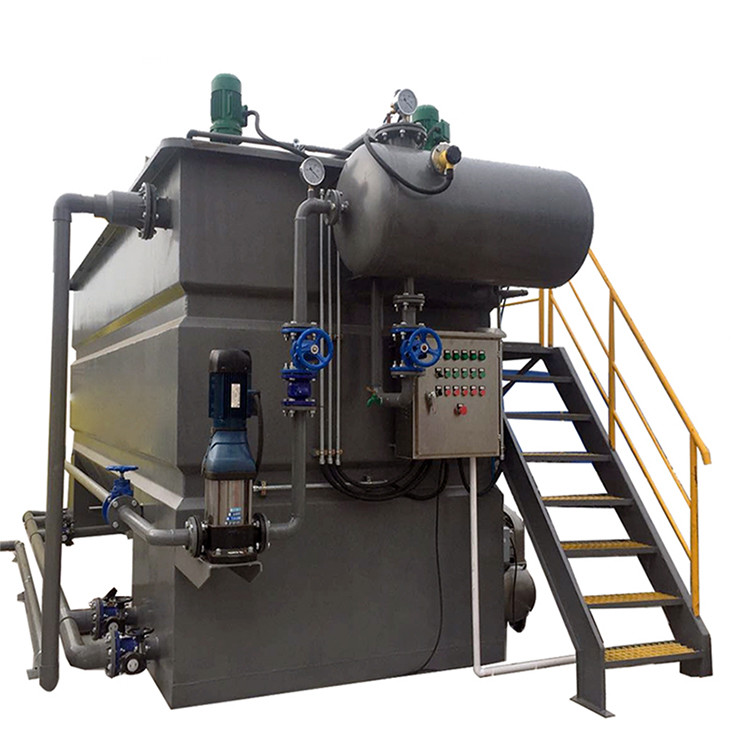

WWTP DAF Dissolved Air Flotation Unit
DAF Dissolved Air Flotation Unit Dissolved air pump edge bibulous the edge is inspiratory, pump pressurized mix within, air to liquid efficient dissolving, small bubbles than 30 um. Low voltage operation, the dissolved gas efficiency is as high as 99 percent, release rate as high as 99 percent.Tiny bubbles and suspended particles of efficient adsorption, improve the SS remove effect. Dissolved gas water dissolving efficiency 80-100 percent, than traditional dissolved gas floating high efficiency three times.Pressure-capacity curve smooth, easy to achieve automatic control, easy to operate, easy maintenance, low noise.
50m3/hr Dissolved Air Flotation Specification
|
50m3/hr Dissolved Air Flotation Specification |
||
|
Parameter |
Units |
DAF 050 |
|
DAF Flow Rate |
m3/hr |
50 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
7.2 |
|
Footprint |
m |
8.4*3.6 |
|
Inlet |
in |
8 |
|
outlet |
in |
6 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
|
STANDARD INCLUSIONS + OPTIONS |
||
|
Skimmer Mounted Plant |
✓ |
|
|
Feed Pump |
✓ |
|
|
Micro bubble generator |
|
✓ |
|
Recycle clean water system |
|
✓ |
|
Maintenance platform, ladder |
|
✓ |
|
Pre-Treatment |
o |
|
|
Control System |
✓ |
|
|
Control System with PLC |
o |
|
|
Air Compressor |
✓ |
|
|
Treated Water Recycling for Saturator |
o |
|
|
Coagulation, flocculation reaction device |
o |
|
|
Chemical powder dissolving dosing device |
o |
|
Advantages Of Dissolved Air Flotation
Removal Efficiency
FOG & TSS: > 90%
BOD & COD: approx. 50% ( can reach over 60% in some kind of waste water )
Application Of Dissolved Air Flotation
Paper-making waste water treatment for fiber recycling.
Paint, printing and dyeing waste water treatment for color reduction.
Chemical waste water treatment.
Food waste water treatment.
Oil refinery for separating oil and impurity.
