| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DAF-080 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Name: | Dissolved Air Flotation | Flow Rate: | 80 M3/hr |
|---|---|---|---|
| Material: | Steel Bracket | Power Consumption: | 12.7 KW |
| Footprint: | 10.8*4 M | Usage: | Farm Wastewater Treatment |
| Function: | Remove Furthers Into Wastewater | Warranty: | 1 Year |
| Highlight: | 80m3/h dissolved air flotation clarifier,12.7KW dissolved air flotation clarifier,EDI DAF clarifier |
||

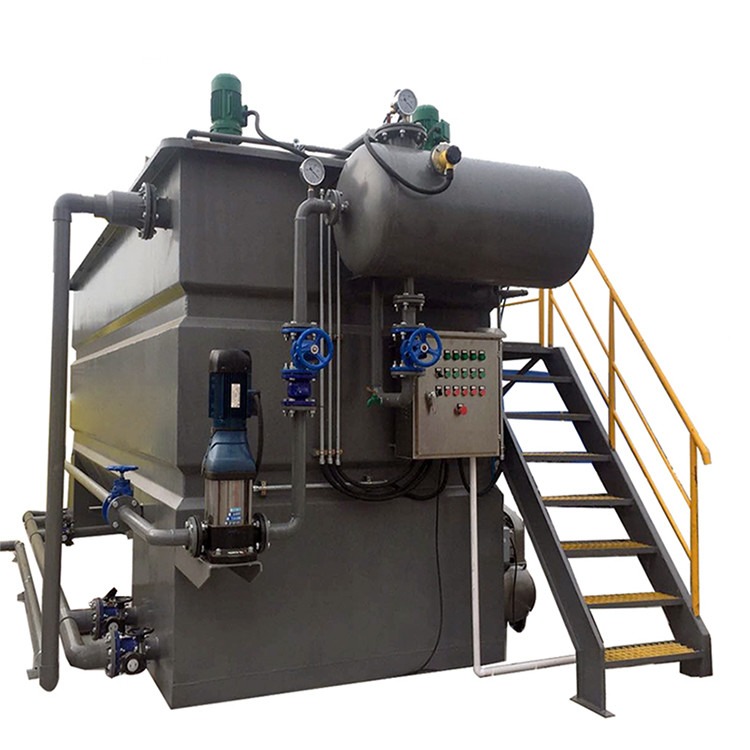

Dagyee DAF-080 Edi Micro Bubble Generator Dissolved Air Gas Flotation Whitewater System Separators Clarification
Oil Water Separator Wastewater Plant Treatment DAF Dissolved Air Flotation is an efficient flotation method for water clarification. The term refers to the method of producing flotation by dissolving air in the water under pressure and then releasing the pressure. When the pressure is released the solution becomes supersaturated with air as millions of small bubbles form. These bubbles attach to any particles in the water causing their density to become less than that of water. The particles then rapidly float to the surface for collection and removal, leaving the clarified water behind.
80m3/hr Dissolved Air Flotation Specification
| Parameter | Units | DAF 080 |
|
DAF Flow Rate |
m3/hr |
80 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
12.7 |
|
Footprint |
m |
10.8*4 |
|
Inlet |
in |
10 |
|
outlet |
in |
10 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
| STANDARD INCLUSIONS + OPTIONS ✓= Standard Supply, o = Optional Supply |
||
|
Skimmer Mounted Plant |
✓ |
|
|
Feed Pump |
✓ |
|
|
Micro bubble generator |
✓ |
|
|
Recycle clean water system |
✓ |
|
|
Maintenance platform, ladder |
✓ |
|
|
Pre-Treatment |
o |
|
|
Control System |
✓ |
|
|
Control System with PLC |
o |
|
|
Air Compressor |
✓ |
|
|
Treated Water Recycling for Saturator |
o |
|
|
Coagulation, flocculation reaction device |
o |
|
|
Chemical powder dissolving dosing device |
o |
|
Features Of Dissolved Air Flotation
Large capacity, high efficiency and small occupying space.
Compact structure, easy operation and maintenance.
Silt expansion elimination.
Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water. Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.
It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and more algae.
FAQ Of Dissolved Air Flotation
Pre-Sales Service
7/24 technical service on line
Free water sample test
Engineer on-spot investigation
View our Factory
After-Sales Service
One Year Guarantee
Training how to install the machine, training how to use the machine
Engineers available to service machinery overseas
