| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DYG-1 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET |
| Condition: | New | Material: | Stainless Steel |
|---|---|---|---|
| Connection Type: | With A Clamp /BSP Female | Certification: | ISO9001 |
| Filtration Accuracy: | 0.1-200UM | Type: | Filter Core |
| Design Temperature: | 5 ℃ -100 ℃ | Warranty: | 1 Year |
| Highlight: | SUS304 single bag filter housing,SUS316 single bag filter housing,ISO9001 stainless steel bag filter housing |
||

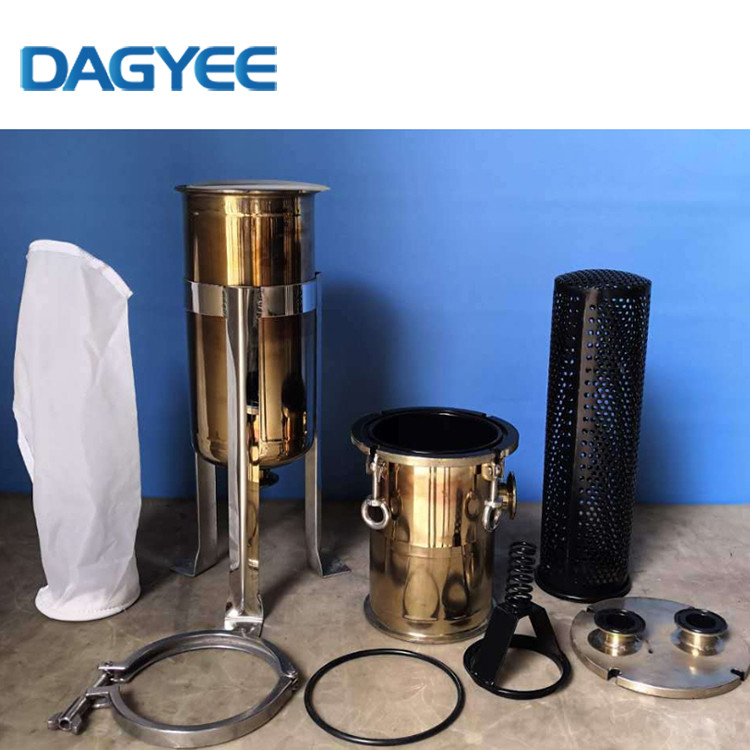

DYG-1 Stainless Steel Customized Miniature High Precision Security Single Filter Bag Filter Housings
What Is Cartridge Filter Housing?
Cartridge filter, also known as security filter. The shell is made of high quality stainless steel, filter using molded filter, The liquid went through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria.Molded filters are: cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter. Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120um.For the same form of filter,it is divided into different models by their dimensions.
Multi Cartridge Filter Housings Specification
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Model |
Max. Flow Rate (m3 /h) |
Max. Operating Conditions (bar/°C) |
Filter specifications |
Inlet/ Outlet |
Height mm | Max. bag Outside Diameter |
| DYG-1-1S | 18M3/H | 12/150 | Ø180*410 | 1 1/2'' flange | 1040 | Ø219 |
| DYG-1-2S | 36 M3/H | 12/150 | Ø180*810 | 2'' flange | 1300 | Ø219 |
| DYG-1-4S | 10 M3/H | 12/150 | Ø105*380 | 1 1/2'' BSP female | 850 | Ø133 |
| DYG-1K-1S | 18 M3/H | 12/150 | Ø180*410 | 1 1/2''flange | 1010 | Ø219 |
DYG-1-1S Stainless Steel Single Bag Filter Fousings
| Model | DYG-1-1S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø219*1040 |
| Max. Flow Rate (m3 /h) | 18 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 1 1/2'' flange |
| Length of Filter bag (mm) | 410 |
| No. of Filter bag | 1 |
| Max. bag Outside Diameter(mm) | Ø180 |
DYG-1-2S Stainless Steel Single Bag Filter Fousings
| Model | DYG-1-2S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø219*1300 |
| Max. Flow Rate (m3 /h) | 36 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 2'' flange |
| Length of Filter bag (mm) | 810 |
| No. of Filter bag | 1 |
| Max. bag Outside Diameter(mm) | Ø180 |
DYG-1-4S Stainless Steel Single Bag Filter Fousings
| Model | DYG-1-4S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø133*850 |
| Max. Flow Rate (m3 /h) | 10 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 11/2'' |
| Length of Filter bag (mm) | 380 |
| No. of Filter bag | 1 |
| Max. bag Outside Diameter(mm) | Ø105 |
DYG-1K-4S Stainless Steel Single Bag Filter Fousings
| Model | DYG-1K-4S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø219*1010 |
| Max. Flow Rate (m3 /h) | 18 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 11/2'' |
| Length of Filter bag (mm) | 410 |
| No. of Filter bag | 1 |
| Max. bag Outside Diameter(mm) | Ø180 |
DAGYEE Cartridge Housing Features
DAGYEE Cartridge Housing Shell Details
