| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | SGS |
| Model Number: | DL132 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | According to buyer requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A |
| Supply Ability: | 50 SETS PET MONTH |
| Product Name: | Screw Press Dehydrator Wwtp | DS Capacity: | 12-20 Kg/h |
|---|---|---|---|
| Power Kw: | 0.62 | Sludge Capacity M3/h: | 0.4-6 M3/hr |
| Highlight: | 6m3/h Screw Press Dehydrator,0.4m3/h Screw Press Dehydrator,6m3/h sludge dehydrator |
||

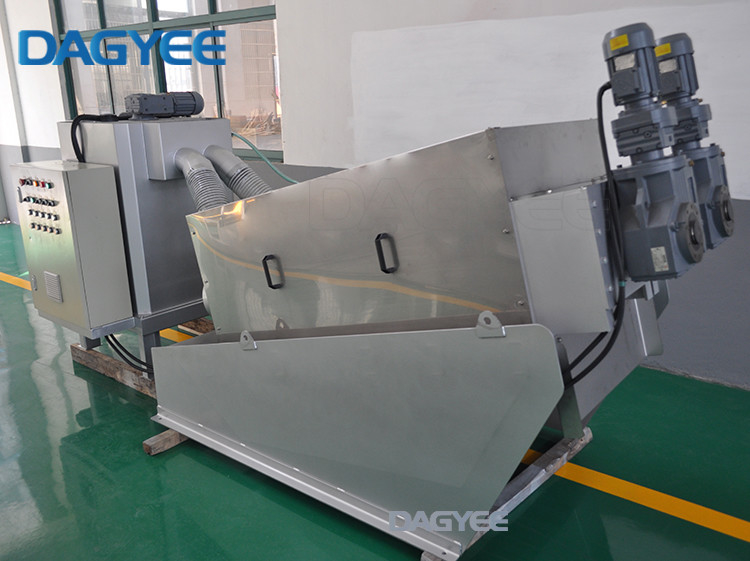

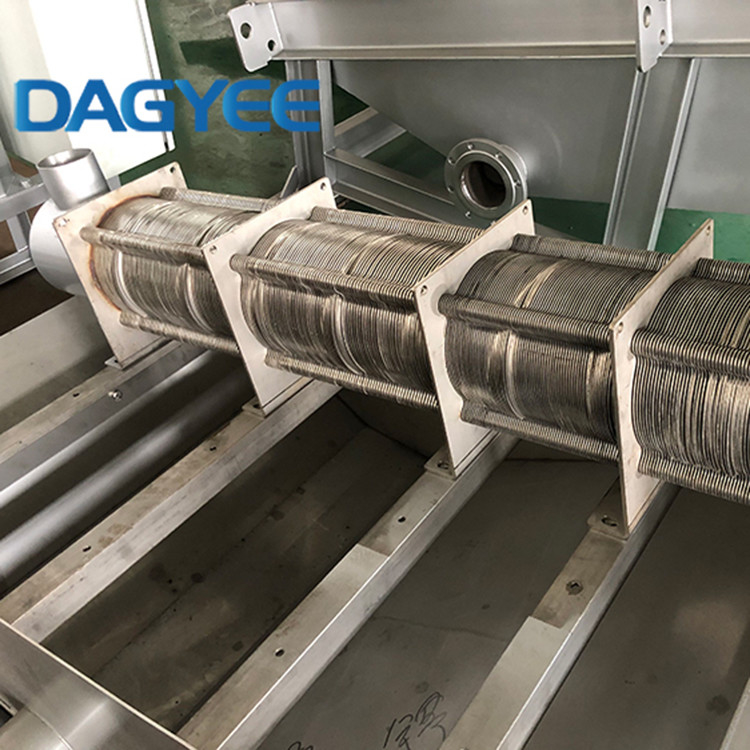

SGS Multi Plate Municipal Screw Press Dehydrator Separator Sludge Dewatering Polymer Filters
sludge dewatering machine technology is very well suited for municipal wastewater plants etc. the Multi-plate Screw Press uses the Vertical Fibre Cloth Media Filter. Compared to traditional filters this technology consumes a low amount of energy it has a high filtration speed high capacity good effluent quality and a low operating cost. The machine only takes up a small space and can be applied for different types of waste water. It can be applied for the advanced treatment and upgrade of municipal sewage treatment rural and small town sewage treatment advanced treatment or reuse of industrial waste water pre-treatment of raw water purification of surface water pre-treatment
Screw Press Dehydrator Technical
| Model | DL132 |
| DS capacity kg/h | 12-20 kg/h |
| Sludge capacity m3/h(2-50g/L) | 0.4-6 |
| Spiral diameter mm | ￠130*2 |
| Discharge Distance mm | 250 |
| Size L*W*H mm | 2069*910*1040 |
| Net.Kg | 275 |
| Run Kg | 450 |
| Power Kw | 0.62 |
| Washing Q L/h | 48 |
Screw Press Dehydrator Features
Screw Press Dehydrator Applications
