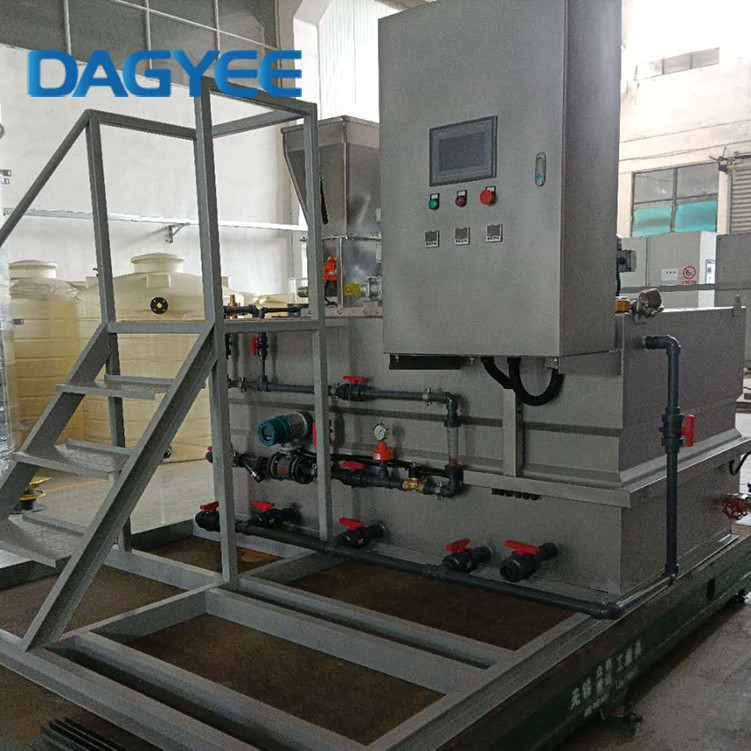

SGS PAM Dissolver 1500L Chemical Dosing Equipment

Basic Information
Place of Origin: China
Brand Name: DAGYEE
Certification: CE SGS
Model Number: PT-2000L
Minimum Order Quantity: 1set
Price: Communicate with customers
Packaging Details: Wooden packing, steel frame,Standard container
Delivery Time: 4 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60set
Detail Information
Material: SUS316 Capacity: 1500L
Voltage: 380V 3 Phase 50hz Or According To Your Requirements Name: PAM Dissolver Dosing Device
Control: Optional PCL After-sales Service::: Operating Instructions,
Highlight:

1500L Chemical Dosing Equipment

,

SGS Chemical Dosing Equipment

,

1500L automatic dosing unit


Product Description

326 500L 1000L 1500L 2000L PAM Dissolver Dosing Device Making Machine Chlorine PAM Make Up Systems



A comple te range of polymer batching and metering systems.
The polymer preparation unit automatically prepares polymer solutions which are
used as coagulants for the eventual removal of suspended particles in the water
treatment processes of a number of applications from swimming pool maintenance
through to the various stages of wastewater treatment, as well as oil recovery, colour
removal, paper production and mineral processing.
The range also comes with a variety of electrical control panels, mixers,
diaphragm pumps and tank sizes to offer an optimum solution for every application.
Its design also means that Dagyee offers flexible and compact footprint
solutions to fit even confined spaces.





Feature

  • Optional equipment
  • Automatic powder hopper loading.
  • Minimum level probe in the powder hopper.
  • Stirrer in the batching tank.
  • Vibrator for hopper.
  • Prefabricated post-dilution systems.



SGS PAM Dissolver 1500L Chemical Dosing Equipment 0

SGS PAM Dissolver 1500L Chemical Dosing Equipment 1

Specification



Using polymers and flocculants considerably facilitates the processes of removing particles and solids suspended in liquid in the following applications,
Treating potable and industrial processing water,
Purifying waste water,
Treating sludge, in order to improve the performance of centrifuges and filter presses,
Processes for the paper, chemical, petrochemical, mineral processing, canning industries.



AUTOMATIC POLYMER DOSING SYSTEM EQUIPMENT SPECIFICATIONS
PT
Model
Capacities
(L/h)
Tank volume (L) Influent volume Aging Time Piping Connections Physical Dimensions(mm) Weight
(Kg)
Power
(m3/h) (h) Inlet Dosing Vent Overflow L/L1 W/W1 H (KW)
PT300 300 350 0.12-0.6 1.0-1.5 DN20 DN20 DN20 DN32 940/860 470/520 1450 250 0.54
PT500 500 750 0.3-1.5 1.0-1.5 DN25 DN25 DN25 DN32 1370/1290 680/730 1450 350 0.92
PT1000 1000 1580 0.6-3 1.0-1.5 DN25 DN25 DN25 DN40 1800/1720 900/950 1620 480 1.3
PT1500 1500 2200 0.8-4 1.0-1.5 DN32 DN32 DN25 DN40 2130/2050 1070/1120 1620 560 1.7
PT2500 2500 4050 1.6-8 1.0-1.5 DN40 DN40 DN40 DN50 2450/2370 1220/1270 2000 790 2.4
PT4000 4000 6170 2.4-12 1.0-1.5 DN40 DN40 DN40 DN65 2780/2700 1390/1440 2250 1050 3.2



Complete PAM Batching Metering Systems

  • Highly automatic control , PLC control system , easy handle;
  • High stability, it will give alarm and stop working when it goes fault;
  • In condition of certain output and continuous working, the chemical ready time is about 1 hour,density about 0.1%-0.3%;
  • Material: 304 stainless steel
  • Compact structure , less room occupied , simple installation.
  • Special design Multi blade mixer;
  • Equipped with pre-mixer to help chemical power dissolving, adjustable water flow;
  • Fixed liquid density, Inlet water matched along with chemical powder.

SGS PAM Dissolver 1500L Chemical Dosing Equipment 2SGS PAM Dissolver 1500L Chemical Dosing Equipment 3

SGS PAM Dissolver 1500L Chemical Dosing Equipment 4
