| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | ISO |
| Model Number: | LW400-1200 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate with buyers |
| Packaging Details: | Decanter Centrifuge 2300*700*1300 Standard wooden box, container |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80 set per month |
| Keywords: | Alumina Decanter Centrifuge | Material: | 304 316L |
|---|---|---|---|
| Capacity:: | 1-8m3/h | Application: | Processing Sludge Dewatering WWTP |
| Highlight: | 8m3/h Screw Decanter Centrifuge,ISO Screw Decanter Centrifuge,8m3/h horizontal decanter centrifuge |
||

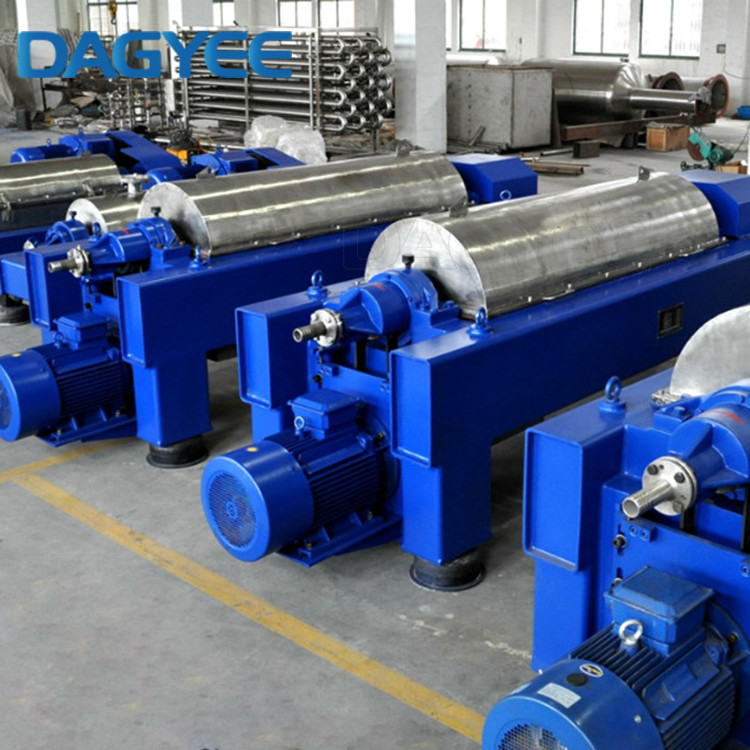

The feed product is pumped into the decanter centrifuge through an inlet. Feed into a horizontal bowl and then rotate. The bowl consists of a cylindrical portion and a conical portion. The separation takes place in the cylindrical part of the bowl. Fast rotation produces centrifugal forces of up to 4000 x g. Under these forces, solid particles with a higher density are collected and compacted on the wall of the bowl. The scroll (also a screw conveyor or screw conveyor) rotates inside the bowl at slightly different speeds. This speed difference is called a differential speed. In this way, the scroll conveys the precipitated particles along the cylindrical portion of the bowl to the conical end of the bowl. At the smallest end of the conical portion of the filter bowl, dehydrated solids leave the filter bowl through the discharge port. The clarified liquid exits through the mating disc (internal centrifugal pump).
| Model | LW400-1200 |
| Drum diameter mm | 400 |
| Length mm | 1200 |
| Maximum speed rpm | 3400 |
| Hightest separation factor g | 2581 |
| Mixture capacity m3/h | 1-8 |
| Motor Power Kw | 22/7.5 |
| Host weight Kg | 2200 |
| Dimension(L*W *H) mm | 3350*1000*1100 |
