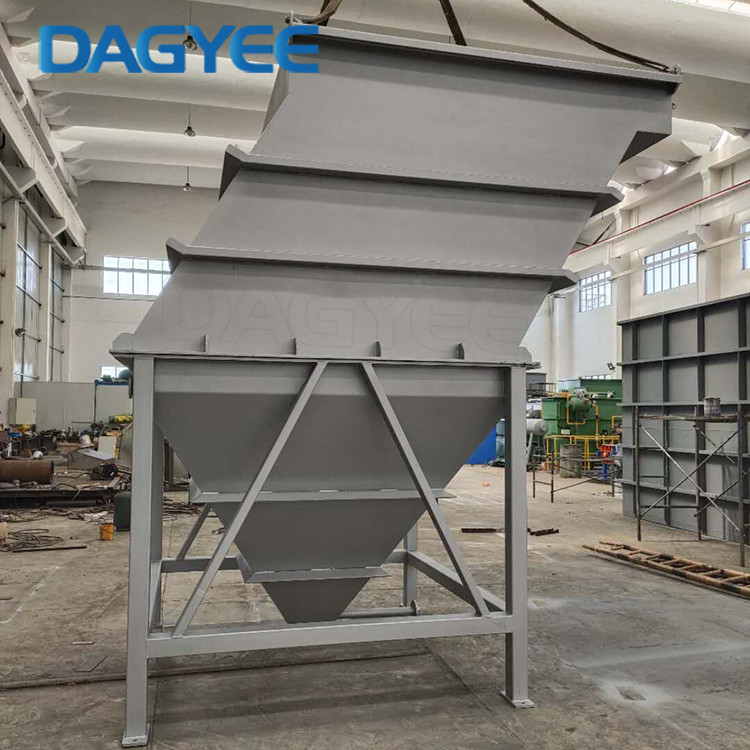

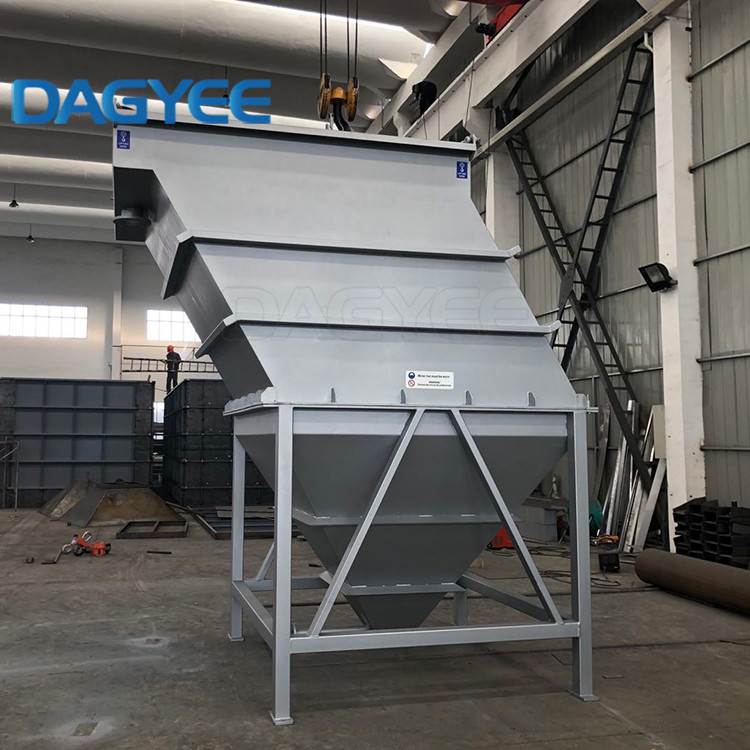

Inclined Plate Rack Gravity Settling Slant Lamella Clarifier Sludge Thickener

Inclined Plate Rack Gravity Settling Slant Clarifier Sludge Thickener

The format of the inclined plate sedimentation water purifier is to install a 60° inclined pipe above the sludge suspension layer. By adding flocculant to the sludge, the suspended solids or flocculent alum flowers accumulate into thin sludge, and then under the inclined pipe In the superficial area, the sludge suspension layer slides back to rely on gravity, and then settles into the sludge collection hopper, and is discharged into the sludge tank through the sludge pipe for separate treatment or comprehensive utilization. The supernatant gradually rises to the collection pipe for discharge or reuse.

Unit is Completely Assembled

• Low Installation
• Conservative Design 0.2 GPM/Ft2
• Completely Automatic, Gravity in Gravity Out
• Reduced Floor Space
• Large Compartment Flocculation Tanks with Mixer for Extra Retention Time (approximately 50-60 minutes)

Advantages Of Lamella Clarifier

• Continuous operation.
• Due to its small volume no need to allocate large storage when emptying.
• No drive nor mechanical parts.
• Filling and emptying time is short.
• Small floor area footprint.
• Modular design for future expansions.​

Available Designs Of Lamella Clarifier

• Inclined plates spacing of 80-100 mm
• Inclined plate length 1–2 m
• Plate pitches between 50° and 60°
• allow for self-cleaning, pitches require backwash
• Typical loading rates are 5 to 15m/h.

80M3/hr Lamella Clarifier Specifications
