| Place of Origin: | WUXI China |
|---|---|
| Brand Name: | Watersafety Inclined Plate Settler Lamella Clarifier |
| Certification: | CE |
| Model Number: | DLC-5-150m3/hr |
| Minimum Order Quantity: | 1 SET |
| Price: | 7000-50000USD |
| Packaging Details: | Wooden box, standard container |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 SET |
| Material: | Carbon Steel,CONTAINER | Color: | According Customers Demands |
|---|---|---|---|
| Application: | Waste Water Treatment,Water Purification,Sedimentation Tank | Capacity: | 3-150m3/h,5-200M3/h |
| Warranty: | 2 Years | After-sales Service Provided: | Video Technical Support,Online Support,commissioning And Training,Free Spare Parts |
| Type: | Automatic,inclined Plate Clarifier,Customized | Weight: | 3T-20T |
| Power: | 0.55~5.5Kw | Water Inlet Suspended Content: | ≤2000mg/l |
| Highlight: | water safety inclined plate clarifier,water safety lamella plate clarifier,CE inclined plate clarifier |
||
Dagyee offer reliable liquid/solid separation for potable and municipal wastewater treatment plants, chemical industries, metal finishing, metallurgical industries, pulp and paper mills, power plants, and industrial process makeup water applications.
Depending on effluent requirements, filtration may be advantageous, and Sepratech suggests dewatering with a rotary drum thickener or filter press.

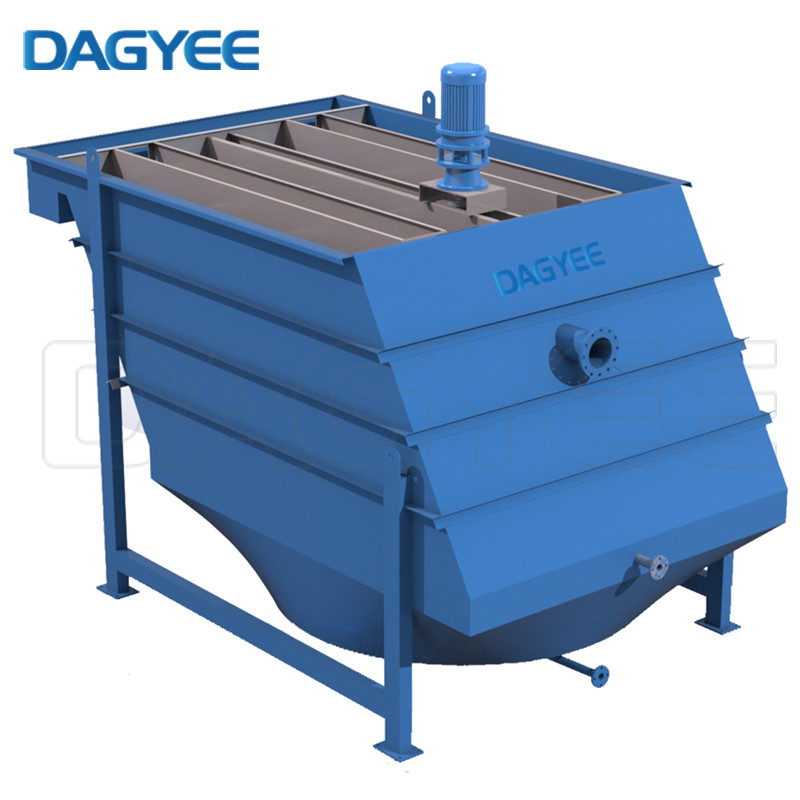

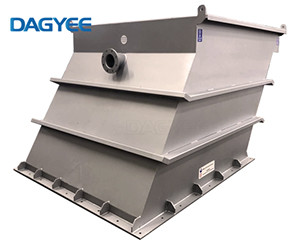

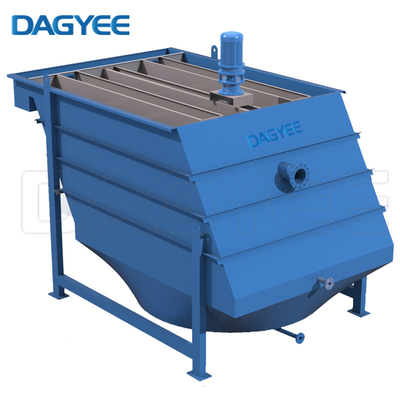

30M3/hr Lamella Clarifier Specifications
| Parameter | Units | DCL-030 |
| Flow Rate | m3/h | 0-30 |
| Effective Settling Area | m2 | 30 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 4.2*2.22*3 |
| Inlet | Inch | 6 |
| Effluent | Inch | 6 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 3000 |
| Voltage | Standard | 380V/3Phase/50Hz Or Provide your standard when making an inquiry |
| Lamella Body Epoxy Coated Carbon Steel | ✓ | |
| Feed Pump | o | |
| Floculator Tanks | o | |
| Flash & Floc Mixers | o | |
| Sludge Scraper | o | |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ | |
| Standard Controller | ✓ | |
| Lamella Body – 304ss | o | |
| Lamella Body – 316ss | o | |
| Variable Speed Mixer | o | |
| Access Platform and Ladder | o | |
| Sludge Hopper Actuated Valve | o | |
| Sludge pump | o | |
Lamella Water Clarifier Made In
• Flash mix/flocculation tanks with mixers
• Full stainless steel construction
• Concrete tank designs for large flows
• Special coatings and plate materials available
• Integral mechanical sludge thickener
• Access platform and ladder
• Gasketed and removable covers
• Automatic desludging
• Instrumentation and controls
• Chemical feed equipment
• Sludge handling and dewatering
Durable stainless steel construction:
• Optimised solids settling using stainless steel plates with a smooth mill finish, ensuring no plate clogging or sludge build-up.
• Low maintenance; only a hose down required.
• Minimisation of thermal current and wind effects on settled water quality
