| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Multi 20 Cartridge Filter Housings |
| Certification: | SGS |
| Model Number: | DYG-20-40 inch |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500SET |
| Condition: | New | Material: | 304 316L |
|---|---|---|---|
| Weight: | 150-1500 | Size: | 40 Inch |
| MOQ: | 1 Set | Capacity: | 20m3/hr |
| Application: | Filtration,water Treatment | Warranty: | 1 Year |
| Highlight: | 316l multi cartridge housing,ss304 multi cartridge housing,20 inch multi cartridge housing |
||

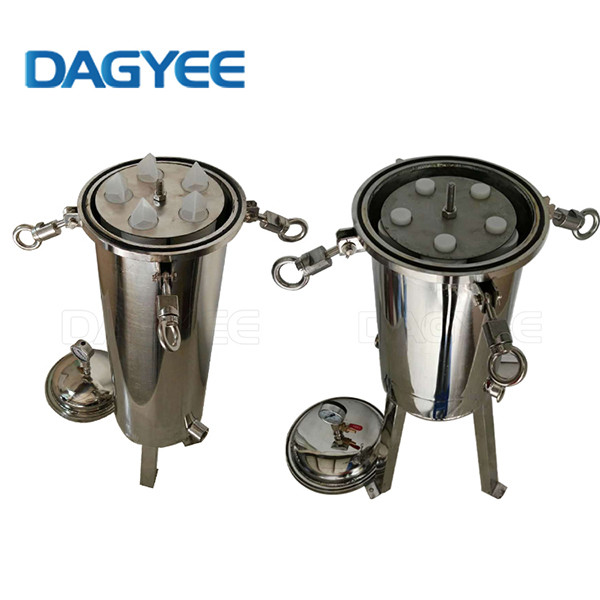

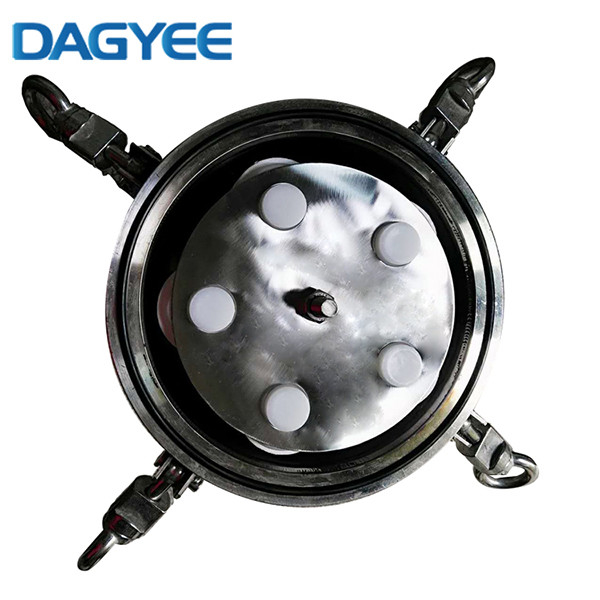

SS304 316L Multi 20 Cartridge Filter Housings
Commonly used wound filter and meltblown filter
Wound filter (also known as honeycomb filter), there are two types: one is polyp ropylene fiber - polypropylene skeleton filtration, the maximum temperature 60 ℃; the other is cotton fiber - stainless steel frame filter, the maximum temperature 120 ℃.Raw material of meltblown filter is polypropylene, the maximum operating temperature is 60 ℃. Sophisticated filters can remove suspended solids, colloidal substances and some fine particulate matter and so on.
| Model | DYG-20-40‘’ |
| Material | SUS304 SUS316 |
| Applicable Filter Cartridges | Industrial PP Filter Cartridges String Wound Filter Cartridges Stainless Steel Filter Cartridges |
| Filtration accuracy | 0.1-200UM |
| Connection Type | With a clamp /BSP female |
| Surface treatment | Mirror reflection |
| Applicable field | Water treatment Beveragepharmaceutical Electronics Chemical Petroleum Paint Glue |
| Housing Dimensions (mm) | Ø400*1450 |
| Max. Flow Rate (m3 /h) | 20 |
| Max. Operating Conditions (bar/°C) | 10/150 |
| Inlet/Outlet (flange) | 1 1/2''/OEM |
| Length of Filter Cartridge | 40'' |
| No. of Filter Cartridges | 20 |
| Max. Cartridge Outside Diameter(mm) | Ø60 |
Material: SUS304L, SUS316L
Precision filter, also known as the security filter/cartridge filter. Generally, it is setted before the pressure vessel, to remove the turbidity particles of 1 degree above, to meet the requirements of further processes for water; Sometimes it also is setted at the end of the whole water treatment system to avoiding the small particles (such as a broken resin) into the water.
1.High filtration precision, uniform pore size filter.
2.Small filtration resistance, flux, interception capability, long service life.
3.Filter is clean and no second pollution to the filter media.
4.It also can filter acid, alkali and other chemical agents.
5.High-intensity,heat-resistant,deformation resistance.
6.Low price, low running costs, easy to clean, filter can be replaced.
1.Food industry:fine filter of space water, mineral water,beverages, liquor clarification and filtration process.
2. Pharmaceutical industry: sterile water, oral, infusion and injection water treatment.
3. Electronics industry: water preparation semiconductors, instruments, picture tubes and other production plants, wash water filtration bar.
4. Chemical industry: organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification.
5. Oil industry: oil field water injection preparation and so on.
6. Environmental protection, electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater treatment.
7. Seawater, brackish water desalination water treatment, hotels, apartments water treatment.
8. Precision filter is often used as security filter for electrodialysis, ion exchange, security filters reverse osmosis devices.
