| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Multi 30 Cartridge Filter Housings |
| Certification: | SGS |
| Model Number: | DYG-30-40 inch |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500SET |
| Condition: | New Multi 20 Cartridge Filter Housings | Material: | 304 316L |
|---|---|---|---|
| Weight: | 750 | Size: | 40 Inch |
| MOQ: | 1 Set | Capacity: | 30m3/hr |
| Application: | Filtration,water Treatment | Warranty: | 1 Year |
| Highlight: | sanitary multi cartridge filter housing,316l multi cartridge filter housing,multi cartridge filter housing 30 inch |
||

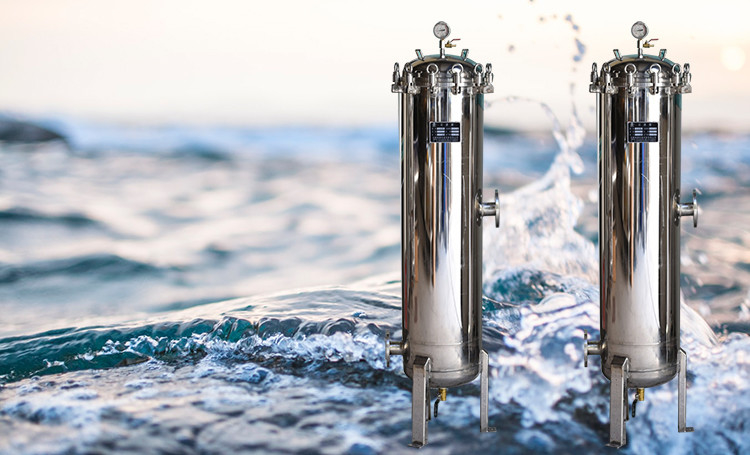

Stainless steel steam/air gas filter housing could be used in both food and pharmacy grade filed like sterile air, and also industrial filed like compressed air. It help remove both moisture and solid particles, such as pipe scale and rust from the steam/air supply and protect equipment like air compressor.
The body closure could be Tri clamp, Union nuts. And flange. All are easy of maintenance. The main use of the steam filter housing is to clean up factory or plant steam to reduce levels of contamination, such as boiler feed chemicals carried over from the boiler off take, so that the end products not adversely affected.
| Model | DYG-30-40‘’ |
| Material | SUS304 SUS316 |
| Applicable Filter Cartridges | Industrial PP Filter Cartridges String Wound Filter Cartridges Stainless Steel Filter Cartridges |
| Filtration accuracy | 0.1-200UM |
| Connection Type | With a clamp /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø400*1450 |
| Max. Flow Rate (m3 /h) | 30 |
| Max. Operating Conditions (bar/°C) | 10/150 |
| Inlet/Outlet (flange) | 1 1/2''/OEM |
| Length of Filter Cartridge | 40'' |
| No. of Filter Cartridges | 30 |
| Max. Cartridge Outside Diameter(mm) | Ø60 |
Material: SUS304L, SUS316L
1.Seal type: O-rings and flat gasket
2. Sealing material: nitrile rubber(chemitum), silicone, fluorine rubber, usually use silicon rubber seal
3. Filter interface: the threaded, clamp(hoop), GB, HG, DIN, ANSI, JIS standard flange
4. Filtration accuracy: 1μm - 100 μm
5. Body material: SS304/SS 316
Precision filter, also known as the security filter/cartridge filter. Generally, it is setted before the pressure vessel, to remove the turbidity particles of 1 degree above, to meet the requirements of further processes for water; Sometimes it also is setted at the end of the whole water treatment system to avoiding the small particles (such as a broken resin) into the water.
1.High filtration precision, uniform pore size filter.
2.Small filtration resistance, flux, interception capability, long service life.
3.Filter is clean and no second pollution to the filter media.
4.It also can filter acid, alkali and other chemical agents.
5.High-intensity,heat-resistant,deformation resistance.
6.Low price, low running costs, easy to clean, filter can be replaced.
1.Food industry:fine filter of space water, mineral water,beverages, liquor clarification and filtration process.
2. Pharmaceutical industry: sterile water, oral, infusion and injection water treatment.
3. Electronics industry: water preparation semiconductors, instruments, picture tubes and other production plants, wash water filtration bar.
4. Chemical industry: organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification.
5. Oil industry: oil field water injection preparation and so on.
6. Environmental protection, electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater treatment.
7. Seawater, brackish water desalination water treatment, hotels, apartments water treatment.
8. Precision filter is often used as security filter for electrodialysis, ion exchange, security filters reverse osmosis devices.
