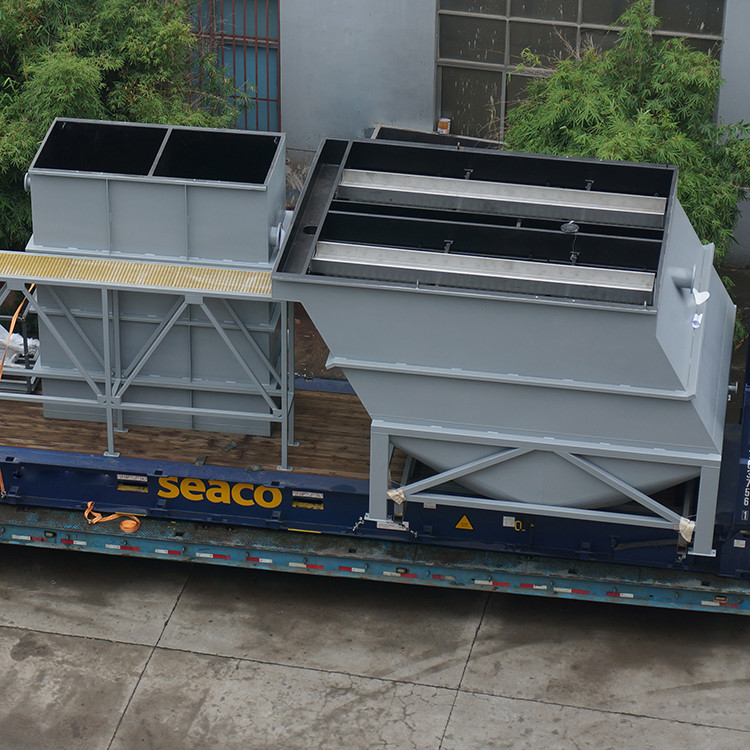

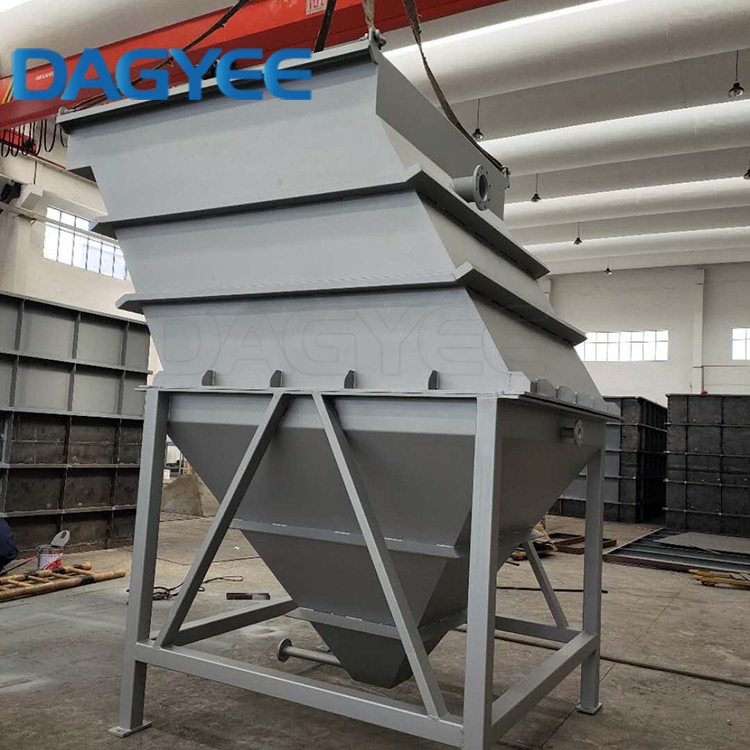

50m3/H Ips Lamella Separator Wastewater Treatment

Ips Lamella Solids Separator Clarifier Wastewater Treatment

Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids.
They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.

50M3/hr Lamella Clarifier Specifications

Lamella Solids Separator Clarifier Continuous operation.

- Due to its small volume no need to allocate large storage when emptying.
- No drive nor mechanical parts.
- Filling and emptying time is short.
- Small floor area footprint.
- Modular design for future expansions.

Lamella Solids Separator Clarifier Optional Design Features

• Flash mix/flocculation tanks with mixers

• Full stainless steel construction

• Concrete tank designs for large flows

• Special coatings and plate materials available

• Integral mechanical sludge thickener

• Access platform and ladder

• Gasketed and removable covers

• Automatic desludging

• Instrumentation and controls

• Chemical feed equipment

• Sludge handling and dewatering

Lamella Clarifier Optional Design Features

• Flash mix/flocculation tanks with mixers

• Full stainless steel construction

• Concrete tank designs for large flows

• Special coatings and plate materials available

• Integral mechanical sludge thickener

• Access platform and ladder

• Gasketed and removable covers

• Automatic desludging

• Instrumentation and controls

• Chemical feed equipment

• Sludge handling and dewatering

Lamella Clarifier Applications

• Primary clarification of wastewater streams

• Backwash water recovery

• Industrial water treatment systems

• Potable water treatment systems

• River water abstraction clarification

• Wash water recovery and recirculation systems

• Wet scrubber and slaking effluent treatment

Lamella Clarifier Advantages

Durable stainless steel construction:

• Optimised solids settling using stainless steel plates with a smooth mill finish, ensuring no plate clogging or  sludge build-up.

• Low maintenance; only a hose down required.

• Minimisation of thermal current and wind effects on settled water quality
