| Place of Origin: | WUXI,CHINA |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | CE |
| Model Number: | 220-80-220-16mm OEM |
| Minimum Order Quantity: | 1 METER |
| Price: | Negotiate with buyers |
| Packaging Details: | Export wooden box ,According to buyer needs |
| Delivery Time: | 3 weeks |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 2000 M per month |
| Features: | Suitable For Shaftless Conveying | Material: | Q345,SS304 |
|---|---|---|---|
| Products Name: | Shaftless Flight | Thickness: | 20mm |
| Highlight: | horizontal shaftless screw conveyor,helicoid shaftless screw conveyor,304 ss shaftless screw conveyor |
||

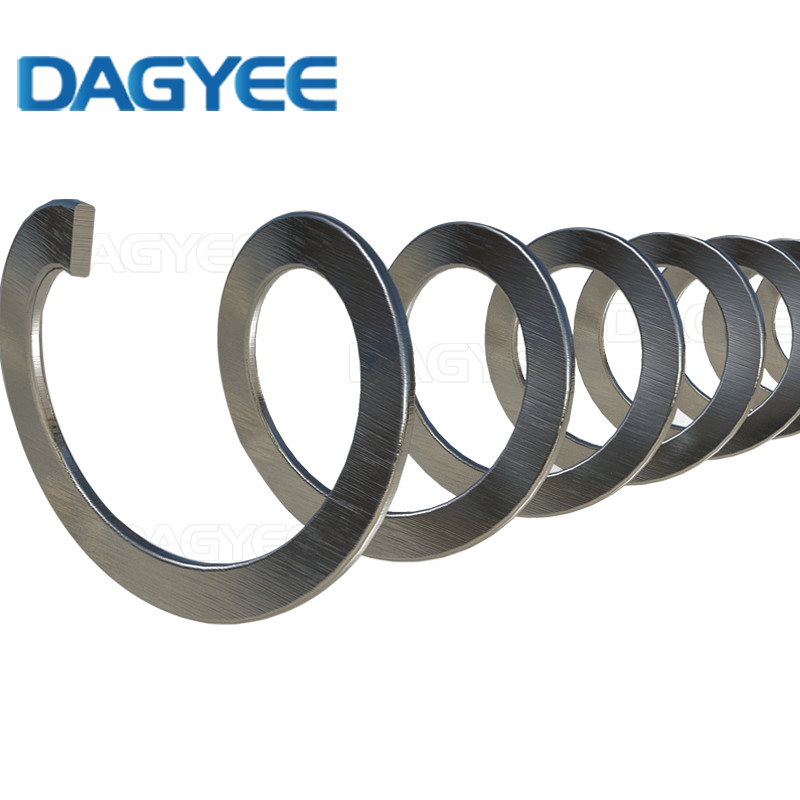

We produce shaftless flight from a single rod or an inner and outer flight structure composed of multiple stacked rods. The scraper is made of two, three or more individual rods or a combination of spiral and segmented scrapers. This adds cross-section, strength and stiffness to the flight. Multiple rods can have different thicknesses and heights, and can even have different materials, such as carbon steel internal threads and wear-resistant external threads, thereby saving costs.
| Diameter | 220mm |
| Bottom diameter | 80mm |
| Leaf height | 70mm |
| Pitch | 220mm |
| Length | 1000-2000mm |
| Thickness | 20mm |
DAGYEE SCREW FLIGHT KEYWORDS
 |
|
SCREW FLIGHT SPECIFICATIONS
Remarks
| Material | low-carbon steel, manganese steel, stainless steel |
| Processing Craft | Continued cold rolling, Continued twisting, Stamping and estending |
| Inner Dia. | ≥8MM |
| Outer Dia. | ≤900MM |
| Thickness | 16MM~40M |
| Colour | Red, Green, Black, Self-colour or as requested |
| Date of delivery | 0~50 meters with in a week. |
PROCESS FLOW
CORE SUPERIORITY
| 2M Length wthout welded joint | Thickness>10mm | Suitable shaftlessconveying | High strength and durability |
| Standard Plate 6M | With thickness> 10 mm | It can be used for continuous and stable | Few solder joints, firm and reliable |
| Forming about 2m | Formed at one time in general market | Transmission of shaftless screw |
