| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DT430 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | SUS304 | Net Weight: | 350 Kg |
| Keywords: | Polymers Preparation Dosing | Specification: | Different Due To Different Models |
| Package: | Plastic & Wood | Warranty: | 12 Months |
| Highlight: | 1000L chemical dosing equipment,1000L Chemical Dosing System,Polymer Feed Preparation Chemical Dosing System |
||

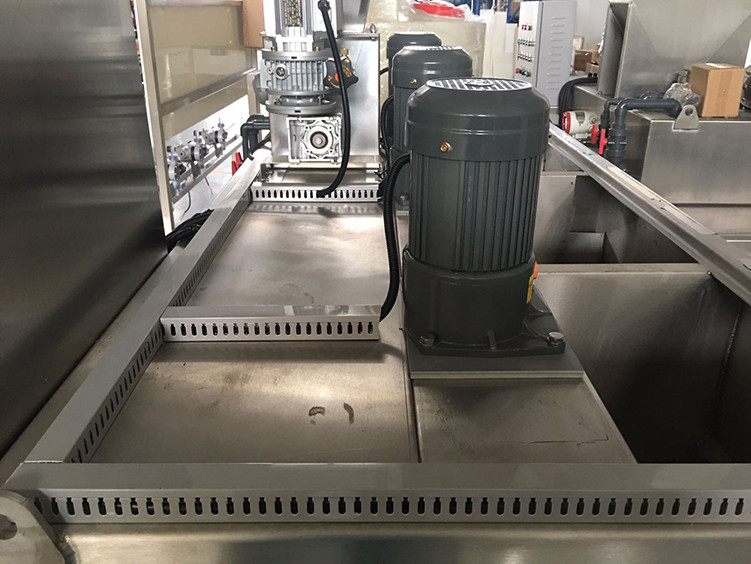

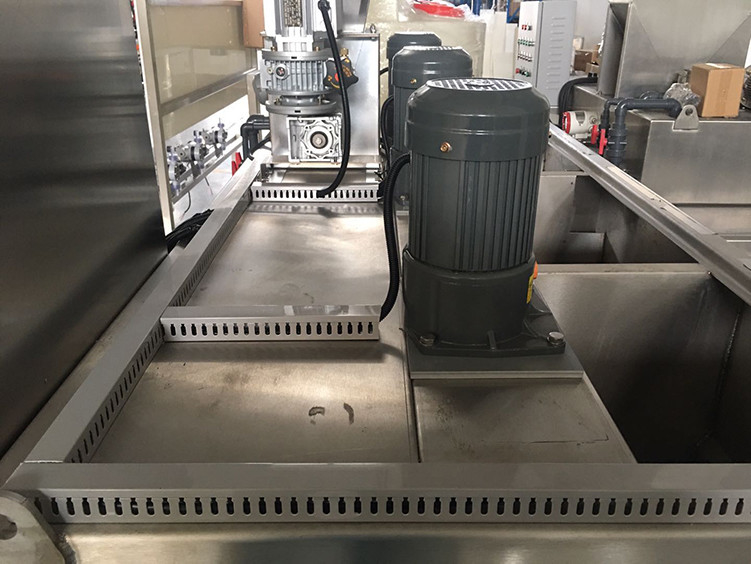

Dagyee DT430 Continuous Flow Polymer And Dilution Solution Dry Polymers Chemical Dosing Device
A comple te range of polymer batching and me tering sys tems. The polymer preparation unit automatically prepares polymer solutions which are used as coagulants for the eventual removal of suspended particles in the water treatment processes of a number of applications from swimming pool maintenance through to the various stages of wastewater treatment, as well as oil recovery, colour removal, paper production and mineral processing. The range also comes with a variety of electrical control panels, mixers, diaphragm pumps and tank sizes to offer an optimum solution for every application. Its design also means that Dagyee offers flexible and compact footprint solutions to fit even confined spaces.
Specification
Extraction rate up to 10,000 l / h
Liquid polymer concentration: 0.05 – 1%
Powder polymer concentration: 0.05-0.5%
| AUTOMATIC POLYMER DOSING SYSTEM EQUIPMENT SPECIFICATIONS | |||||||||||||
| PT Model |
Capacities (L/h) |
Tank volume (L) | Influent volume | Aging Time | Piping Connections | Physical Dimensions(mm) | Weight (Kg) |
Power | |||||
| (m3/h) | (h) | Inlet | Dosing | Vent | Overflow | L/L1 | W/W1 | H | (KW) | ||||
| PT300 | 300 | 350 | 0.12-0.6 | 1.0-1.5 | DN20 | DN20 | DN20 | DN32 | 940/860 | 470/520 | 1450 | 250 | 0.54 |
| PT500 | 500 | 750 | 0.3-1.5 | 1.0-1.5 | DN25 | DN25 | DN25 | DN32 | 1370/1290 | 680/730 | 1450 | 350 | 0.92 |
| PT1000 | 1000 | 1580 | 0.6-3 | 1.0-1.5 | DN25 | DN25 | DN25 | DN40 | 1800/1720 | 900/950 | 1620 | 480 | 1.3 |
| PT1500 | 1500 | 2200 | 0.8-4 | 1.0-1.5 | DN32 | DN32 | DN25 | DN40 | 2130/2050 | 1070/1120 | 1620 | 560 | 1.7 |
| PT2500 | 2500 | 4050 | 1.6-8 | 1.0-1.5 | DN40 | DN40 | DN40 | DN50 | 2450/2370 | 1220/1270 | 2000 | 790 | 2.4 |
| PT4000 | 4000 | 6170 | 2.4-12 | 1.0-1.5 | DN40 | DN40 | DN40 | DN65 | 2780/2700 | 1390/1440 | 2250 | 1050 | 3.2 |
The Feature Of Dissolver Dosing Device
The Application Of Dissolver Dosing Device
The Service Of Company
No matter which processes and applications are planned Dagyee has a solution in the cleaning and hygiene of kitchens and laundries and surfaces of all types in applications like offices and restaurants, hospitals and hotels, retailers and schools, car washes and swimming pools, cooling towers, energy, food & beverage, water gas utilities potable and waste water treatment .
