| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | IRD9-3000 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type:: | New Product 2020 |
|---|---|---|---|
| Material: | Standard Wooden Box | Weight: | 2100 Kg |
| Size: | 4100*1600*2200 | Function: | Filtering Suspended Matter |
| Advantage: | No Clogging | Color: | Customizable |
| Highlight: | sus304 rotating drum screens,sus316 rotating drum screens,CE rotating drum screen |
||

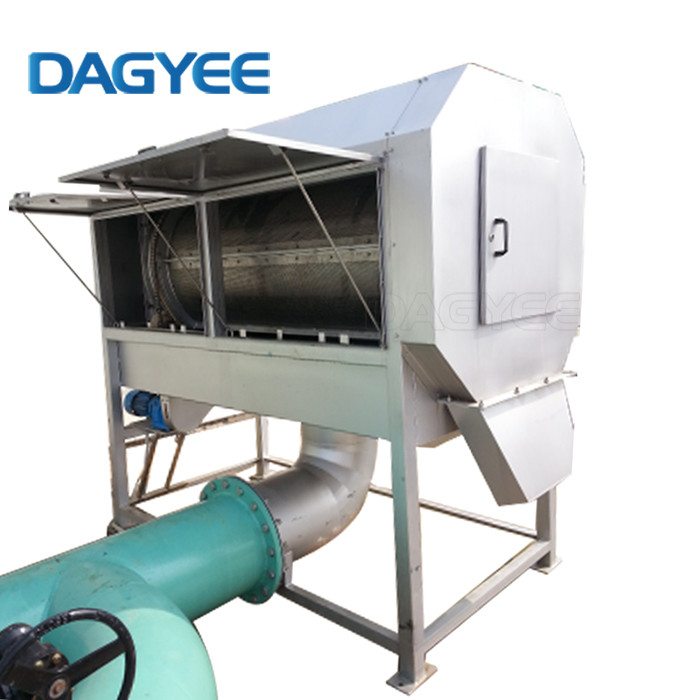

Dagyee IRD9-3000 SUS304 SUS316 Wedge Wire Pharmaceutical Wastewater Static Screen
Depending on the method of wastewater treatment that is applied the mechanical pretreatment system must fulfil different requirements in terms of separation efficiency. Special plants which operate according to the MBR principle put the highest demands on the mechanical pretreatment system as all coarse material needs to be removed.
What Is External Rotary Drum Screen
Self-cleaning wedge wire screen. Primary screening separator and removes non dissolved solid materials that could cause mechanical damage and blockages to the next treatment steps in WWTP.it is a proven fine screening technology for municipal wastewater treatment plants and many industries with several application capabilities.
IRD9-3000 Type Rotating Drum Screen Technical Table
| DDS Model | IRD9-3000 |
| Drum size mm | Ø900x3000 |
| Dimensions L*W*H(mm) | 4100*1600*2200 |
| Power | 1.1 |
| Weight(Kg) | 2100 |
| Capacities(m3/h)1,2,3(mm) | 160/270/350 |
| Sludge height (mm) | 600 |
Technical Table Of All Models Of Rotary Drum Screen
| DDS Model |
Drum size | Physical Dimensions(mm) | Power | Weight (Kg) |
Capacities(m3/h) | Sludge height | ||||
| mm | L | W | H | KW | 1mm | 2mm | 3mm | mm | ||
| IRD6-900 | Ø600x900 | 1900 | 1350 | 1700 | 0.55 | 630 | 15 | 25 | 30 | 500 |
| IRD6-1200 | Ø600x1200 | 2200 | 1350 | 1700 | 0.55 | 820 | 30 | 50 | 60 | 500 |
| IRD6-1500 | Ø600x1500 | 2500 | 1350 | 1700 | 0.75 | 1000 | 45 | 70 | 85 | 500 |
| IRD6-1800 | Ø600x1800 | 2800 | 1350 | 1700 | 0.75 | 1160 | 60 | 100 | 120 | 500 |
| IRD6-2100 | Ø600x2100 | 3100 | 1350 | 1700 | 1.1 | 1300 | 80 | 135 | 170 | 500 |
| IRD9-1200 | Ø900x1200 | 2300 | 1600 | 2200 | 1.1 | 1200 | 40 | 70 | 85 | 600 |
| IRD9-1800 | Ø900x1800 | 2900 | 1600 | 2200 | 1.1 | 1470 | 80 | 135 | 170 | 600 |
| IRD9-2500 | Ø900x2500 | 3600 | 1600 | 2200 | 1.5 | 1800 | 120 | 200 | 250 | 600 |
| IRD9-3000 | Ø900x3000 | 4100 | 1600 | 2200 | 1.5 | 2100 | 160 | 270 | 350 | 600 |
HOW DOES INTERNAL DRUM SCREEN WORK
 |

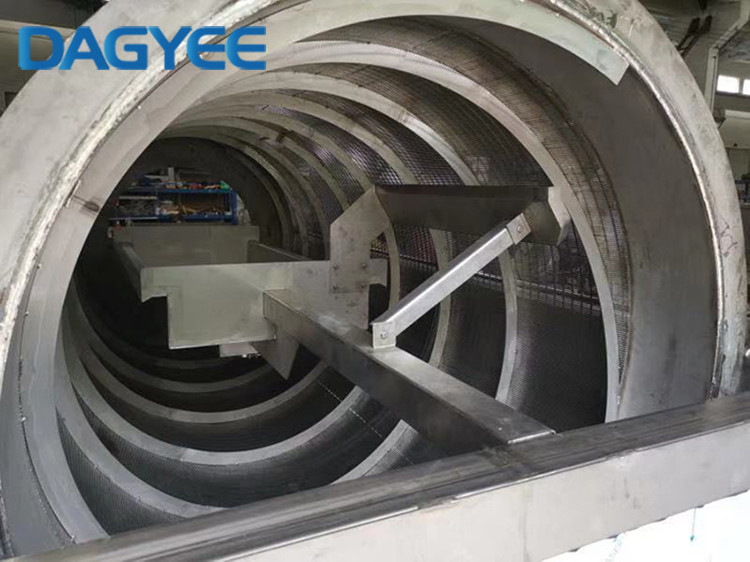

The internal feed rotary screen operates very easy. Influent water enters through the inlet and flows into the headbox. The headbox is filled with water and the inlet overflows onto the weir and contacts the sides of the rotating cylinder screen. When the incoming water hits the rotating screen, the solids are trapped in the cylinder and the liquid enters the process through the screen or continues to be processed. A splitter on the cylinder moves the solid along the length of the screen for discharge. The device is equipped with spray bars head to clean the screen. |
TECHNOLOGY INTERNAL DRUM SCREEN
|
Internal water inlet, high removal rate ;
Adjustable drum speed, low energy consumption ;
Backwashing mode can be set to adopt the most water saving mode ;
Structure of the equipment is made of stainless steel and corrosion resistant.
|
 |
