Dagyee DYG-C1-40'' Multi High Precision Security Single Microporous Filter 40'' Liquid Housings Supplier

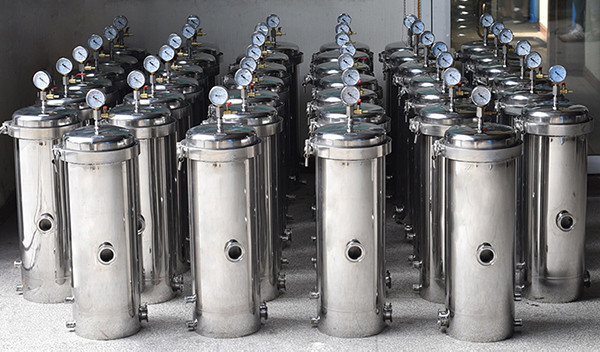

DAGYEE Cartridge Housing

Cartridge filter is mainly composed by the filter housings, filter cartridges and other components, and the filter housings materials is mostly made of R304 stainless steel, if it’s used in the acid and other special occasions,it will be made by R316 stainless steel. It an be divided into the flange and clamp, and flanged housing is mainly used in the occasion of larger flow filtration. The filter is mainly made by PP cotton, it can also be made by wound filter or activated carbon filter on some occasions. The number of filter may vary from 1 to dozens, primarily be determined from the water flow rate.

We always have a large stock of stainless steel liquid housings for commercial and industrial use. Most of the models shown are available from stock immediately.

DAGYEE Cartridge Housing Feature

• Low pressure drop
• Permanently piped filter housing open without special tools and without disturbing the piping
• Machined cover gasket groove provides positive O-ring sealing
• Easy to clean
• In-line inlet and outlet
• Stainless steel internals
• Standard Options
• Carbon steel, 304 or 316 stainless steel housings
• Accommodates 10, 20, 30 or 40-inch cartridge

Types of DAGYEE Cartridge Housing

This filter can be applied for most particles so it is broadly for precision filter and sterilization.

• The filter cylinder is 1core,3core,5core,7core,9core,11core,13core,15core
• The length of folding filter core is 10,20,30,40
• The material of the filter core is PTF,Pplysulfone,nylon,pp,acetyl cellulose
• The diameter of the filter hole is 0.1μm,0.22μm,0.45μm,1μm,3μm,5μm,10μm,30μm,60μm,and it is selective as hydrophilic (suitable for gas) and hydrophilic (suitable for liquid) according to your requirement.
