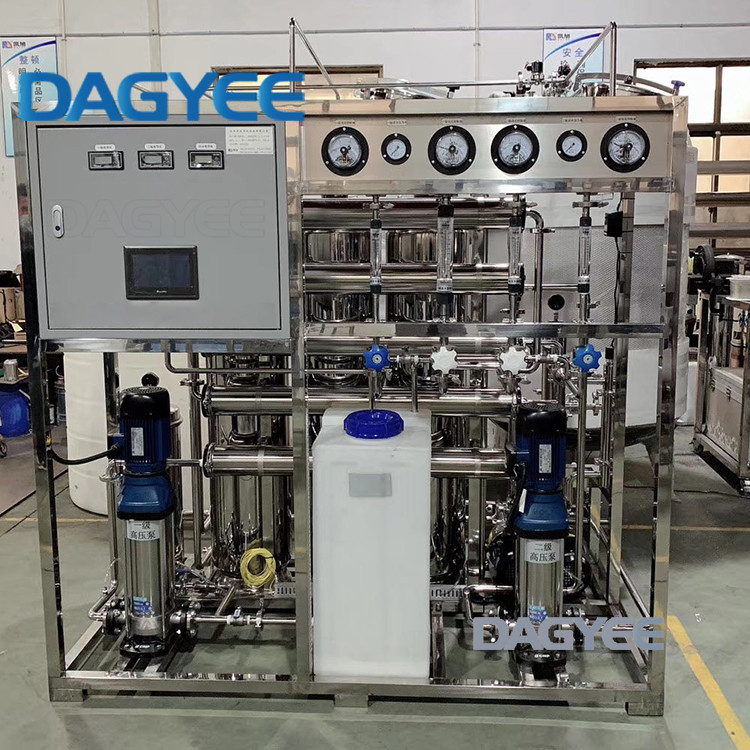

Industry 250/500/1000lph Reverse Osmosis Water Treatment Systems

Dagyee 5000l/H Desalination Customized Ro Water Industrial Ro Plant Seawater Treatment System

Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane.

It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won’t polluted environment.

Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.

Industrial Ro System Technical-5000lph

Features Of Ro System

• pressure is the main force in RO separation process, which does not go through the phase transition of energy intensive exchange and has low energy consumption;
• RO does not need a lot of precipitants and adsorbents, and its operating cost is low;
• RO separation engineering is simple in design and operation and short in construction period;
• RO purification efficiency is high and environmentally friendly. Therefore, RO technology has been widely used in domestic and industrial water treatment, such as desalination of seawater and brackish water, production of medical and industrial water, preparation of pure and ultra-pure water, industrial wastewater treatment, food processing concentration, gas separation, etc.​

​ Application Of RO System

• Can produce pure water continuously and highly automatic
• No need chemical to regeneration, easy operation
• RO system uses imported USA DOW membrane
• Automatic switch on when low water level, and switch off when high water level
• RO membrane can wash automatically and reduce pollution
• Water shortage protection for multi-stage pump
• Production water conductivity meter can test the monitoring quality on line continuously.
• Low operation Cost and Long life span
• RO-PLC program controller
• Easily control and Maintain
• Auto flush/backwash

Reverse Osmosis Ro System Water Process

• Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
• Quartz sand filter-- get rid of turbidity, suspended matter, organic matter, colloid.
• Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter.
• Softener(Optional)--exchange "ions" of calcium and magnesium with the most common and easiest method.
• Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
• High pressure pump-- Provide the high pressure to RO membrane .
• RO Reverse Osmosis Unit -- main part of the plant. RO membrane's desalting rate can reach 99%.
• Storage Tank,Achieve treatment effect.
