| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DCL-015 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Material: | Standard Container | Weight: | 2100 |
|---|---|---|---|
| Size: | 3.35*2.02*3 | Power: | 0.55KW |
| Product Name: | Lamella Clarifier | Application: | Wastewater Treatment |
| Warranty: | 1 Year | Function: | Efficient Sedimentation Tank |
| Highlight: | solids sand water treatment lamella clarifier,flotation lamella clarifier,anti corrosion plate clarifier |
||

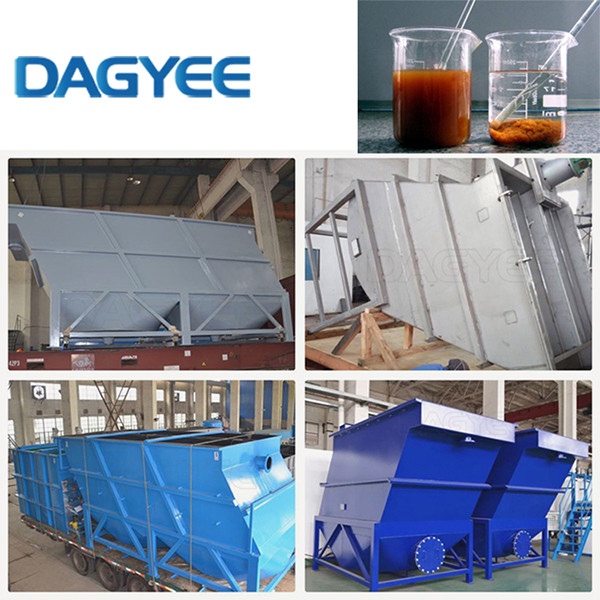

DCL-015 Standard Seaworthy Package Solids Removal For Water Municipal Water Treatment Lamella Plate Clarifier
Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids. They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.
Range Of Applications
Features Of lamella Clarifier
How Does Lamella Clarifier Work
When using, you can choose to add coagulant. The method is to install inclined plate component with an inclination angle of 60 degrees above the suspended layer of sludge. Suspended solids in the raw water, solids or floc alum flowers formed by adding a coagulant are added to the surface area of the inclined plate Accumulate into a thin mud layer, rely on gravity to slide back to the suspended sludge layer, and then sink into the mud hopper.
The sewage pipe is discharged into the sludge tank for further treatment or comprehensive utilization. The supernatant gradually rises to the drain of the water collection , which can be directly discharged or reused.
Dagyee Lamella Clarifier Focus On More Details
