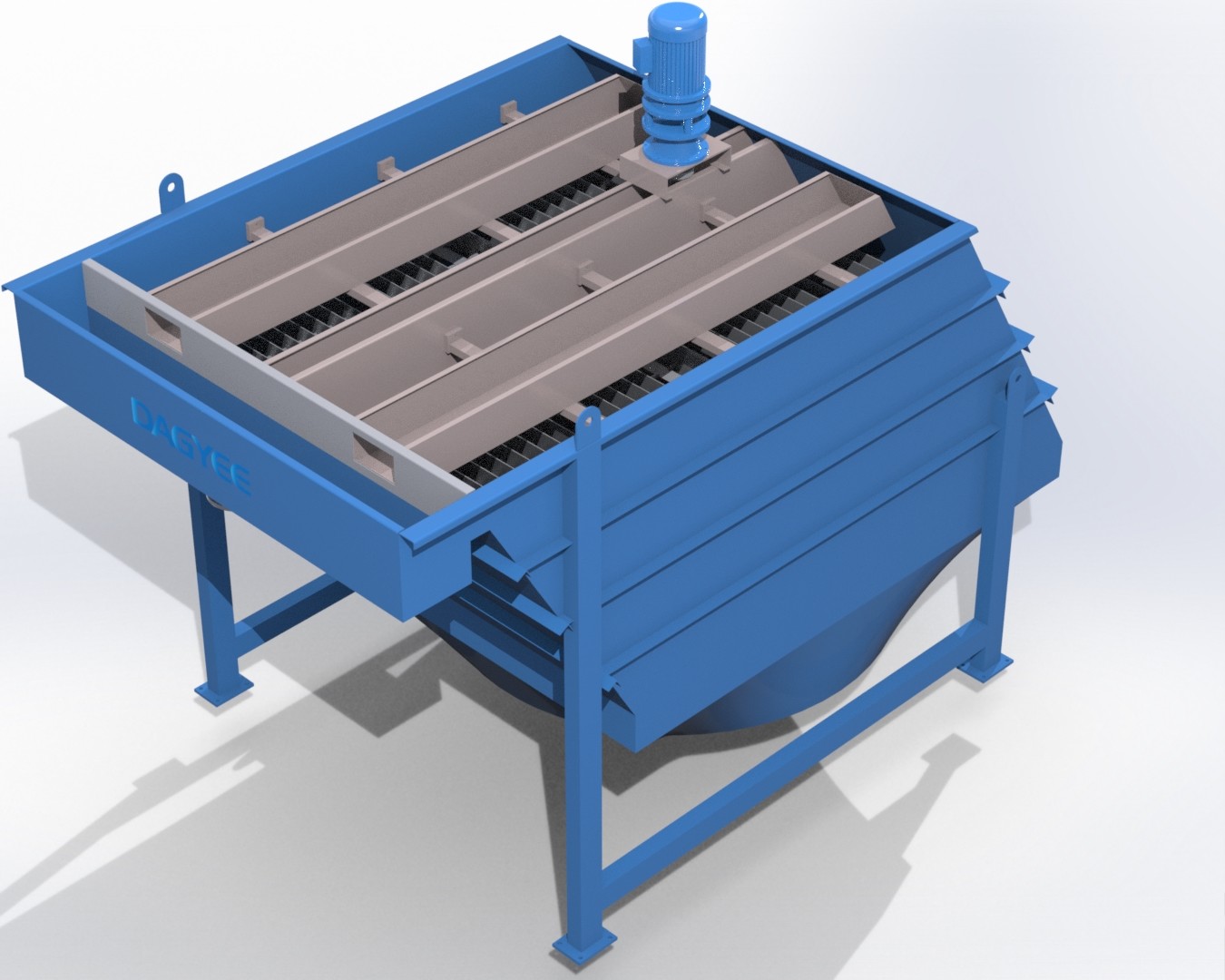

Cross Flow 8 Inch Inlet Slant Plate Clarifier Sedimentation Tank Customizable Equipment

Dagyee DCL-050 Sedimentation Tank Industrial Water Clarifier Manufacturer

Lamella Clarifier Introduction

The size of the gravity settler mentioned in the introduction is determined according to two parameters, namely the upflow rate of the liquid and the settling area. Therefore, under the same conditions, the effective area of the clarifier and the flake settler are the same. In the clarifier, the settling area is the surface of the water tank, and in the flake settler, the settling area is the total area of the inclined plate projected on the horizontal surface.

Compared with the clarifier, this can reduce the area occupied by the flake settlers by about 90%, so less land is required.

Lamella Clarifier Equipment Specifications

Range Of Applications

• Heavy Metals Removal
• Filter Press Belt Wash
• Battery Plant Heavy Metals Removal
• Hazardous Waste Remediation
• Brine Clarification
• Plating and Finishing Wastes
• Food & Beverage Waste
• Trace Metals Reduction
• Storm Water Management
• Bleach Plant Wash Water
• Incinerator Wet Scrubber
• Potable Water Pretreatment

Features Of Lamella Clarifier

• Modular and compact construction
• Range of capacities (2, 4 & 6 m³/hr)
• Stainless steel contstruction
• Layout and construction customization possible
• Can be fitted with a catwalk for maintenance ​

Advantages

• Smaller footprint
• Large effective settling area
• Improved overflow rates 2 to 4 times
• Long time to be use
• Normal use without clogging
• Even clogging is provided with backwash device Less possibility for injury

Availbailable Designs

• Inclined plate length 1–2 m
• Plate pitches between 50° and 60°
• Allow for self-cleaning, pitches require backwash
• Loading rates are 5 to 15m/h
• Set up scraper for easy drainage.
