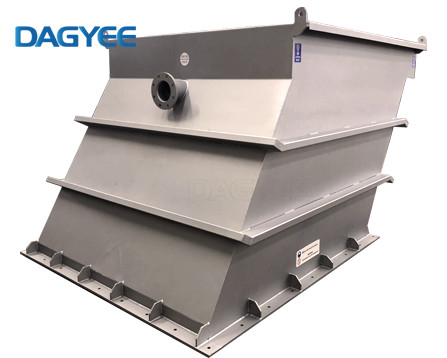

Ss304 Parallel Plate Lamella Clarifier Sedimentation Units Solids Separator Purification Plant

DCL-060 Stainless Steel High Separation Efficiency Oil Water Separation Lamella Clarifier Clarification

As the liquid flows upward, the solids settle on the inclined, parallel plates and slide into the sludge hopper at the bottom. Further thickening of the sludge occurs in the hopper due to compaction in the dormant zone beneath the plates. The clarified liquid leaves the plate assembly through submerged orifices or weirs at the top of each plate and collects in channels leading to the clarified water outlet which creates a pressure drop across the collection channels. This action ensures uniform flow distribution across the plates to utilize the full area for settling.

60M3/hr Lamella Clarifier Specifications

The Description Of Lamella Plate Clarifier

Inclined plate sediment water purifier is format by install 60° dip angle inclined tube above the sludge suspended layer, to make the suspended solids or floc alum flower by dosing flocculant accumulate into thin sludge later in inclined tube downside superficial area, slide back to sludge suspended layer rely on gravity, then settling in sludge collecting hopper, discharge into sludge tank by sludge pipe for separate treatment or comprehensive utilization. The supernatant fluid gradually rise to water collecting pipe discharge or reuse.

Range Of Applications

• Water following physical-chemical treatment.
• Tailings in mining and metallurgical beneficiation.
• Solutions from gold leaching processes.
• Wet scrubbing effluents.
• Effluent treatment in pulp and paper mills.
• Filter backwash.

Features Of Lamella Clarifier

• More compact size than the classic silo
• Increased performance in terms of lt./min. and water clarity
• No maintenance required thanks to the innovative self-cleaning system
• Eliminates the expensive construction of settling pits
• Reduces and optimizes the cost of mud disposal
• Structure in galvanized Iron

Dagyee Lamella Clarifier Focus On More Details
