Floculador Coagulator Textile Lamella Separator Wastewater Treatment Machinery

DCL-005 High Rate 0.55 Power Waste Flash Polymer Flocculant Lamella Settlers

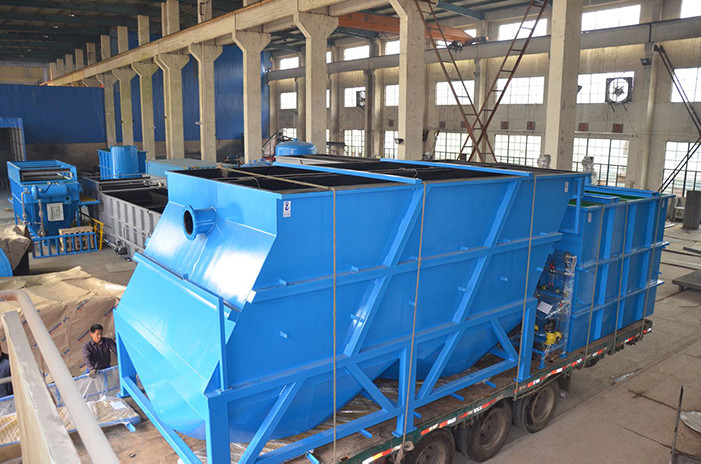

Dagyee iso9001 waste water treatment lamella plate clarifier is an efficient combined sedimentation tank, According to the shallow theory designed;Many dense inclined plates are set in the subsidence area to allow suspended solid in the wastewater to settling on the inclined plate. Water rises and flows upon the inclined plate .The separated sludge slides down the inclined plate to the bottom of the tank under the effect of gravity.

Sludge can be discharged in a collector, which can increased capacity by 3 to 5 times on the same area. According to the test data of raw wastewater, different flow rate precipitators can be chosen.

5M3/hr Lamella Clarifier Specifications

Advantages Of Using Lamella Clarifier

• Long service life
• Easy to install
• User friendly
• Comprehensive after-sales assistance
• Capable to function well in all weather conditions

Main Process Characteristics

• Lamella clarifiers can handle a maximum feed water concentration of 10000 mg/L of grease and 3000 mg/L of solids. Expected separation efficiencies for a typical unit are:
• 60-90% removal of free oils and greases under standard operation conditions.
• 20-40% removal of emulsified oils and greases with no chemical amendment
• 50-90% removal with the addition of chemical agent
• The surface loading rate (also known as surface overflow rate or surface settling rate) for a lamella clarifier falls between 10–25 m/h. For these settling rates,
• the retention time in the clarifier is low, at around 30 minutes or less,
• with operating capacities tending to range from 1–3 m3/hour/m2 (of projected area).

Application Of Lamella Clarifier

• Potable water clarification
• Industrial process water
• Oil gas industry waste water treamtment.
• Sand filter backwash water treatment
• Metal finishing waste water treatment.
• Mining Industry
• Groundwater Treatment
• River dredging treatment Plant
• Other waste water treatment plant.
