| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | ISO |
| Model Number: | LW350-1500 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate with buyers |
| Packaging Details: | Decanter Centrifuge 2300*700*1300 Standard wooden box, container |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 set per month |
| Keywords: | Food Decanter Centrifuge | Material: | 304 316L |
|---|---|---|---|
| Capacity:: | 1-5 M3/h | Application: | Food Processing Dewatering |

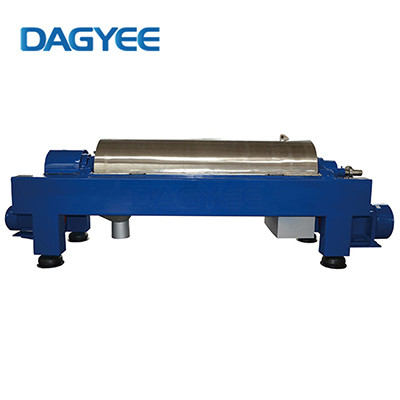

ISO 304 2 3 Phase LW Food Processing Clarifying Horizontal Decanter Centrifuge Separator WWTP
What Is Screw Decanter Centrifuge
Screw Decanter Centrifuge No high-speed rotating drum with a hole to install loser concentric spiral. both in a certain difference to the same rotational speed. The speed difference is generated by the diferential. Suspension by the introduction of spiral pipe feeding tube after the initial accelerated into drum. under the centrifugal force. heavier solid precipitation in the drum wall formed sediment layer pushed by the spiral bevel of the drum to further dehydration after serving small moutt. slag discharges; and the less liquid is formed by the inner-ring
reading overflow discharge.
Screw Decanter Centrifuge Technical Table
| Model | LW350-1500 |
| Drum diameter mm | 350 |
| Length mm | 1500 |
| Maximum speed rpm | 3800 |
| Hightest separation factor g | 2850 |
| Mixture capacity m3/h | 1-5 |
| Motor Power Kw | 18.5/5.5 |
| Host weight Kg | 2200 |
| Dimension(L*W *H) mm | 3500*1000*1300 |
Screw Decanter Centrifuge Feature
All contact parts can be made by SS304/SS316L/Duplex Steel 2205 Automatic adjustment of differential speed via VFD,Siemens PLC Spiral : Surfacing welding tungsten carbide grinding
Two motor drive
Approximately 80 to 90% of the oil is recovered.
Low labor costs due to continuous and automatic operation.
Highest g-force for higher solids output
Belts for both primary motor and secondary
NSK/SKF Bearing
Screw Decanter Centrifuge Application
Waste water treatment
food processing
Waste recycling
Fish processing
Beneficiation
Organic Chemicals
Inorganic chemical industry
Polymer industry
chemicals
Screw Decanter Centrifuge Process
