| Place of Origin: | China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DLS |
| Minimum Order Quantity: | 1 set |
| Price: | 999-9999 |
| Packaging Details: | Wooden packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |
| Material: | Q345/SS304/SS316L | Keywords: | Customized Shaftless Screw Conveyor |
|---|
The spiral in Shaftless Spiral Conveyor is made of one or more steel bars without a center shaft. The spiral is lying on the wear liners made of steel bars or wear resistant plastic at the bottom of the trough.
Shaftless Screw Conveyors are designed to handle almost any bulk material, from dry and free-flowing to sticky and sluggish. Shaftless screw conveyors are ideal for bulk materials with high moisture content that have a tendency to adhere to the center pipe of a conventional shafted screw conveyor.
This problem is totally eliminated because there is no center pipe on a shaftless screw conveyor. Only the shaftless spiral is used to convey the bulk material.
| Model | WLS150 | WLS200 | WLS250 | WLS300 | WLS400 | WLS500 |
| Screw diameter(mm) | 150 | 184 | 237 | 284 | 365 | 470 |
| Casing pipe diameter | 180 | 219 | 273 | 351 | 402 | 500 |
| Operating angle(α) | ≤30° | ≤30° | ≤30° | ≤30° | ≤30° | ≤30° |
| Max delivery length(m) | 12 | 13 | 16 | 18 | 22 | 25 |
| Capacity(t/h) | 2.4 | 7 | 9 | 13 | 18 | 28 |

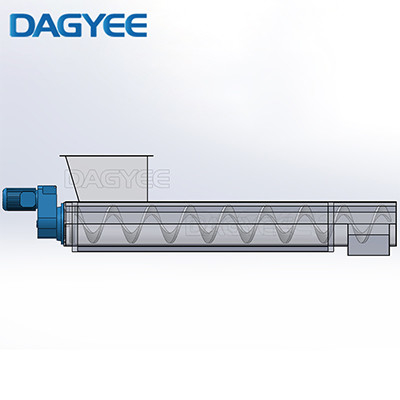

This product is mainly composed of drive device, head assembly, housing, no shaft helix, slot liner, feed port, discharge port, cover (when needed), base, etc.
Ceramic industry: clay, silica, sand, polishing materials, etc.
Food industry: soybean, peanut, starch, milk powder, salt, sugar, etc.
Plastics industry: plastic powder, plastic particles, etc.
Wood industry:wood chips, wood sawing surface and byproducts, etc.
Environmental: the filter material, fly ash, fixed residue, waste, etc.
Agriculture:livestock feed, food, powder, etc.
