| Place of Origin: | China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DLS |
| Minimum Order Quantity: | 1 set |
| Price: | 999-9999 |
| Packaging Details: | Wooden packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |
| Material: | Q345/SS304/SS316L | Keywords: | Customized Shaftless Screw Conveyor |
|---|
The specific material used for the shaftless screw conveyor is determined according to the customer's wishes, but we will also recommend the material you choose to be cost-effective, etc. We have a first-class design and production team for shaftless screw conveyors, and conventional shaftless screw blades All are in stock, and customers who are in a hurry should choose!
The shaftless screw conveyor shell is made of carbon steel, the lining plate is made of nylon or wear-resistant ultra-high molecular weight polyethylene, and the blade is made of wear-resistant manganese steel.
The obvious features of the shaftless screw conveyor are good environmental protection performance. The use of fully enclosed conveying and easy-to-clean spiral surfaces can ensure environmental hygiene and the materials to be delivered, without leakage. Large torque and low energy consumption.
| Model | WLS150 | WLS200 | WLS250 | WLS300 | WLS400 | WLS500 |
| Screw diameter(mm) | 150 | 184 | 237 | 284 | 365 | 470 |
| Casing pipe diameter | 180 | 219 | 273 | 351 | 402 | 500 |
| Operating angle(α) | ≤30° | ≤30° | ≤30° | ≤30° | ≤30° | ≤30° |
| Max delivery length(m) | 12 | 13 | 16 | 18 | 22 | 25 |
| Capacity(t/h) | 2.4 | 7 | 9 | 13 | 18 | 28 |

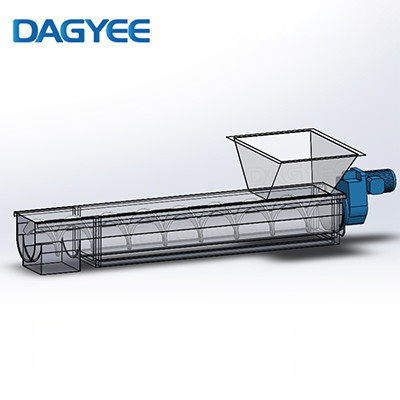

This product is mainly composed of drive device, head assembly, housing, no shaft helix, slot liner, feed port, discharge port, cover (when needed), base, etc.
Simple design (few components)
Small footprint
Odor-free operation
High efficiency
Completely empty
Highly self-cleaning
Easy to access and clean
Low maintenance
Modular components can be easily adapted to a variety of problems (multi-purpose conveyor for a variety of difficult materials and high volume applications)
Shaftless helical (screw) conveyors are designed for handling difficult and heterogeneous materials such as municipal solid waste, screening and floating matter substances, dehydration, thickening, conditioning sludge, packaged foods, creams or pastes, and waste from meat, fish, fruit and vegetable processing.
Main application areas are: wastewater treatment, sugar mill waste, fish industry, solid waste treatment, fruit and vegetable processing, beverage industry, pulp and paper, chemicals, food industry, meat processing plants, slaughterhouses, restaurants, canteens, general catering.
