| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DAF-060 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Condition: | New | DAF Flow Rate: | 60 M3/hr |
|---|---|---|---|
| Material: | Steel Bracket, Q235B 304 316 | Weight: | 1500-10000KG |
| Footprint: | 9.9*3.8 M | Power Consumption: | 9.2 KW |
| Warranty: | 1 Year | Type: | Automatic |

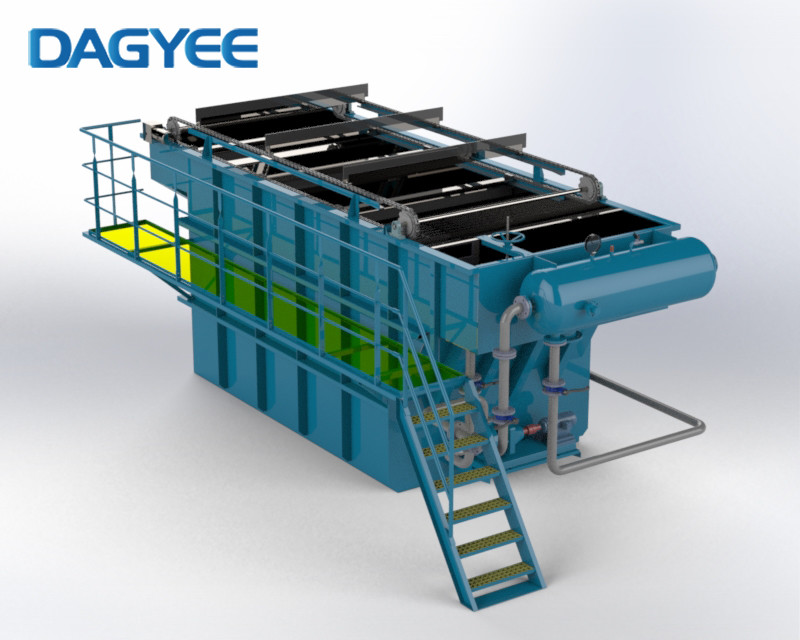

Dagyee DAF-060 Edi Wooden Cereal Foods Package Floculador Coagulador Daf System
Dissolved air flotation machine is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.
60m3/hr Dissolved Air Flotation Specification
|
Parameter |
Units |
DAF 060 |
|
DAF Flow Rate |
m3/hr |
60 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
9.2 |
|
Footprint |
m |
9.9*3.8 |
|
Inlet |
in |
10 |
|
outlet |
in |
8 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
|
STANDARD INCLUSIONS + OPTIONS |
||
|
Skimmer Mounted Plant |
✓ |
|
|
Feed Pump |
✓ |
|
|
Micro bubble generator |
✓ |
|
|
Recycle clean water system |
✓ |
|
|
Maintenance platform, ladder |
✓ |
|
|
Pre-Treatment |
o |
|
|
Control System |
✓ |
|
|
Control System with PLC |
o |
|
|
Air Compressor |
✓ |
|
|
Treated Water Recycling for Saturator |
o |
|
|
Coagulation, flocculation reaction device |
o |
|
|
Chemical powder dissolving dosing device |
o |
|
Main Process Characteristics
Removal Efficiency:
FOG & TSS: > 90%
BOD & COD: approx. 50% ( can reach over 60% in some kind of waste water )
Application Of Dissolved Air Flotation
Product recovery and reuse
Pretreatment to meet sewer discharge limits
Pretreatment to reduce loading on downstream biological systems
Polishing of biological treatment effluent
Removing silt and grease from industrial water
FAQ Of Dissolved Air Flotation
Pre-Sales Service
7/24 technical service on line
Free water sample test
Engineer on-spot investigation
View our Factory
After-Sales Service
One Year Guarantee
Training how to install the machine, training how to use the machine
Engineers available to service machinery overseas
