| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DCL-005 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Material: | Standard Container | Weight: | 1500 |
|---|---|---|---|
| Size: | 2.55*1.6*2.9 | Power: | 0.55KW |
| Warranty: | 1 Year | Voltage: | 200V-460V |
| Padding: | PP/PVC/FRP | Color: | Customerized |

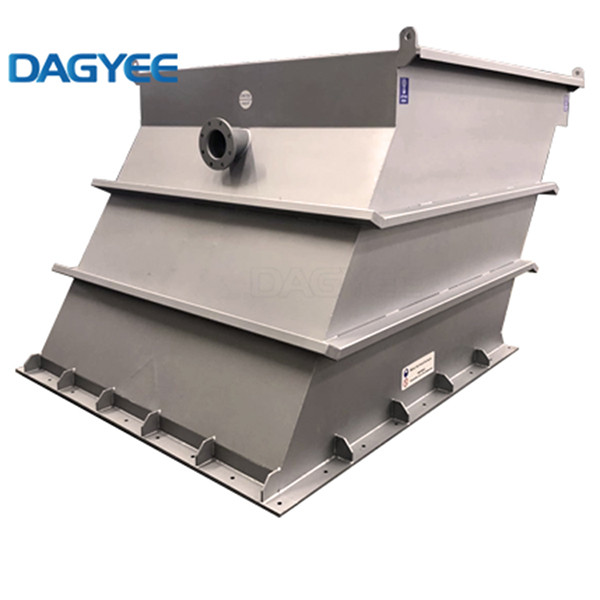

DCL-005 High Rate 0.55 Power Waste Flash Polymer Flocculant Lamella Settlers
Dagyee ISO9001 waste water treatment lamella plate clarifier is an efficient combined sedimentation tank, According to the shallow theory designed;Many dense inclined plates are set in the subsidence area to allow suspended solid in the wastewater to settling on the inclined plate. Water rises and flows upon the inclined plate .The separated sludge slides down the inclined plate to the bottom of the tank under the effect of gravity.
Sludge can be discharged in a collector, which can increased capacity by 3 to 5 times on the same area. According to the test data of raw wastewater, different flow rate precipitators can be chosen.
5M3/hr Lamella Clarifier Specifications
|
Parameter |
Units |
DCL-005 |
|
Flow Rate |
m3/h |
0-5 |
|
Effective Settling Area |
m2 |
5 |
|
Efficiency |
% |
80-90 |
|
Treated water turbidity |
NTU |
50-100 |
|
Dimensions (Clarifier Only) |
L x W x H (m) |
2.55*1.6*2.9 |
|
Inlet |
Inch |
3 |
|
Effluent |
Inch |
3 |
|
Sludge outlet |
Inch |
2 |
|
Backwash |
Inch |
2 |
|
Power |
Kw |
0.55 |
|
Weight |
Kg |
1500 |
|
Voltage |
Standard |
380V/3Phase/50Hz |
|
STANDARD INCLUSIONS + OPTIONS |
||
|
Lamella Body Epoxy Coated Carbon Steel |
✓ |
|
|
Feed Pump |
o |
|
|
Floculator Tanks |
o |
|
|
Flash & Floc Mixers |
o |
|
|
Sludge Scraper |
o |
|
|
Lamella / Floc Tank Support Galvanised Mild Steel Construction |
✓ |
|
|
Standard Controller |
✓ |
|
|
Lamella Body – 304ss |
o |
|
|
Lamella Body – 316ss |
o |
|
|
Variable Speed Mixer |
o |
|
|
Access Platform and Ladder |
o |
|
|
Sludge Hopper Actuated Valve |
o |
|
|
Sludge pump |
o |
|
Advantages Of Using Lamella Clarifier
Long service life
Easy to install
User friendly
Comprehensive after-sales assistance
Capable to function well in all weather conditions
Main Process Characteristics
Lamella clarifiers can handle a maximum feed water concentration of 10000 mg/L of grease and 3000 mg/L of solids. Expected separation efficiencies for a typical unit are:
60-90% removal of free oils and greases under standard operation conditions
20-40% removal of emulsified oils and greases with no chemical amendment
50-90% removal with the addition of chemical agent
The surface loading rate (also known as surface overflow rate or surface settling rate) for a lamella clarifier falls between 10–25 m/h. For these settling rates
The retention time in the clarifier is low, at around 30 minutes or less
With operating capacities tending to range from 1–3 m3/hour/m2 (of projected area)
Application Of Lamella Clarifier
Potable water clarification
Industrial process water
Oil gas industry waste water treamtment
Sand filter backwash water treatment
Metal finishing waste water treatment
Mining industry
Groundwater Treatment
River dredging treatment plant
Other waste water treatment plant
