| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DAF-100 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Brand Name: | Dagyee | Flow Rate: | 100m3/hr |
|---|---|---|---|
| Material: | Steel Bracket | Power Consumption: | 12.9KW |
| Footprint: | 12.1*4.2m | DAF Flow Rate: | 100m3/hr |
| Type: | Automatic | Warranty: | 1 Year |

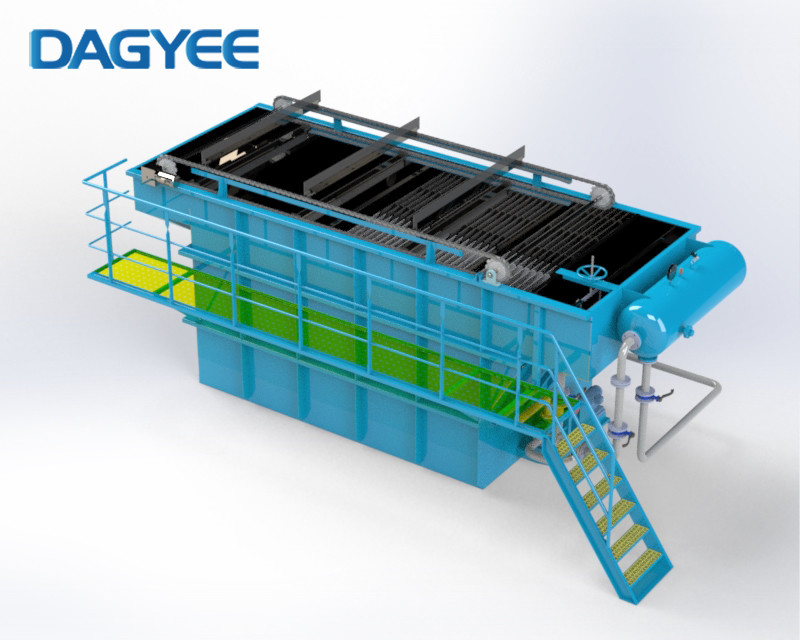

Oil Industry Coagulation 12.9KW DAF Dissolved Air Flotation Solid Liquid Separation
DAF dissolved air flotation consists of flotation tank, dissolved air system, reflux pipe, dissolved air released system, skimmer (Based on customer needs, there are combined type, traveling type and chain-plate type to choose.), electric cabinet and so on.
Dissolved air flotation is one of the most effective methods whose specific gravity is close to 1.0 from water.Dissolved Air Flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid , oil and grease etc. Benenv dissolved air flotation is an innovation combined with traditional dissolved air flotation concept and modern technology.
100m3/hr Dissolved Air Flotation Specification
|
Parameter |
Units |
DAF 100 |
|
DAF Flow Rate |
m3/hr |
100 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
12.9 |
|
Footprint |
m |
12.1*4.2 |
|
Inlet |
in |
12 |
|
outlet |
in |
10 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
|
STANDARD INCLUSIONS + OPTIONS |
||
|
Skimmer Mounted Plant |
✓ |
|
|
Feed Pump |
✓ |
|
|
Micro bubble generator |
✓ |
|
|
Recycle clean water system |
✓ |
|
|
Maintenance platform, ladder |
✓ |
|
|
Pre-Treatment |
o |
|
|
Control System |
✓ |
|
|
Control System with PLC |
o |
|
|
Air Compressor |
✓ |
|
|
Treated Water Recycling for Saturator |
o |
|
|
Coagulation, flocculation reaction device |
o |
|
|
Chemical powder dissolving dosing device |
o |
|
Main Process Characteristics
Small footprint, Low energy consumption; Easy operation; Simple management;
Efficient dissolved air; Stable treatment effect ; Full-automatic operation;
Dissolved Air Systerm is used in this device. It has ingenious structure, and its efficiency of dissolving air is as high as 90%. But its volume is only one-fifth of the other kind of dissolved air system. In addition, it still has the super anti-clogging ability which is incomparable;
Release effect and the mean diameter of microbubble is only between 15 to 30 microns. In addition that,this kind of dissolved air releasers also has the self-cleaning ability;
This device also applies Chained Scum Skimmer, works Smooth and reliably and skims scum efficiently.
Application Of Dissolved Air Flotation
Separate small particles and algae in groundwater.
Recover valuable products in industrial sewage such as paper pulp.
Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
