| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DCL-050 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |

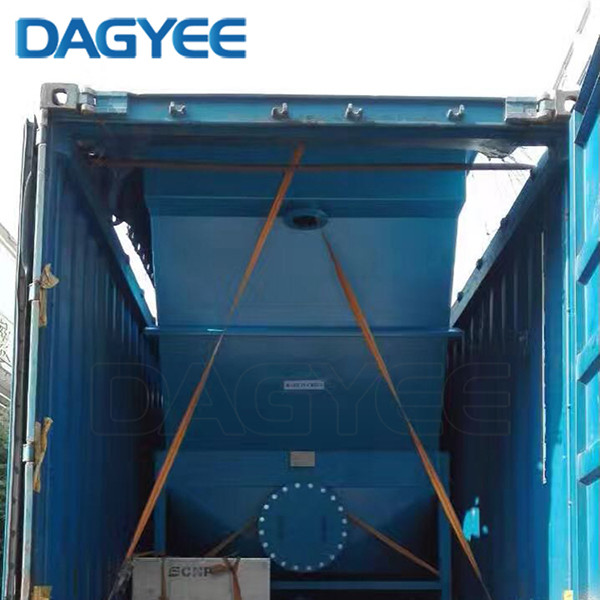

| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Material: | SS316 Carbon Steel | Weight: | 4500 |
|---|---|---|---|
| Size: | 4.2*2.8*3M | Color: | Customerized |
| Padding: | PP/PVC/FRP | Effective Settling Area: | 50 M2 |
| Efficiency: | 70-99 % | Flow Rate: | 0-50 M3/h |
50m3 CPI IPS Inclined Plate Settler Lamella Clarifier Separator Jungle River
What Is Lamella Clarifier
Inclined Plate Lamella Clarifiers are designed to remove solids from water. They are used in a wide variety of Wastewater Treatment Applications, including Metal Finishing Wastewater Treatment. The Total Suspended Solids TSS in the wastewater will naturally settle over time due to gravity, but this process can be sped up and improved by having Inclined Plates. The inclined plates provide a large projected settling area in a compact form. This technology is greatly beneficial compared to a cone bottom tank or a circular clarifier because of the space savings, settling efficiencies, and the reduced cost of construction.
Range Of Applications
Primary clarification of wastewater streams
Backwash water recovery
Industrial water treatment systems
Potable water treatment systems
River water abstraction clarification
Wash water recovery and recirculation systems
Wet scrubber and slaking effluent treatment
Features Of Lamella Clarifier
Structural steel support legs
Epoxy painted carbon steel tank
Individually removable FRP
Plates
Adjustable effluent weir plates
Standard units can be
Manufactured for flows from 5
Gpm to 3000 gpm and above in
A single above-grade tank
One-piece prefabricated units
Are available with up to 1000 sqft
Of effective settling area
Single tank construction with
Integral flash mix/flocculation
Compartments for smaller units
Multiple sample connections
Advantages
Smaller footprint
Large effective settling area
Improved overflow rates 2 to 4 times
Long time to be use
Normal use without clogging
Even clogging is provided with backwash device Less possibility for injury
Availbailable Designs
Inclined plate length 1–2 m
Plate pitches between 50° and 60°
Allow for self-cleaning, pitches require backwash
Loading rates are 5 to 15m/h
Set up scraper for easy drainage.
Dagyee Lamella Clarifier Focus On More Details
